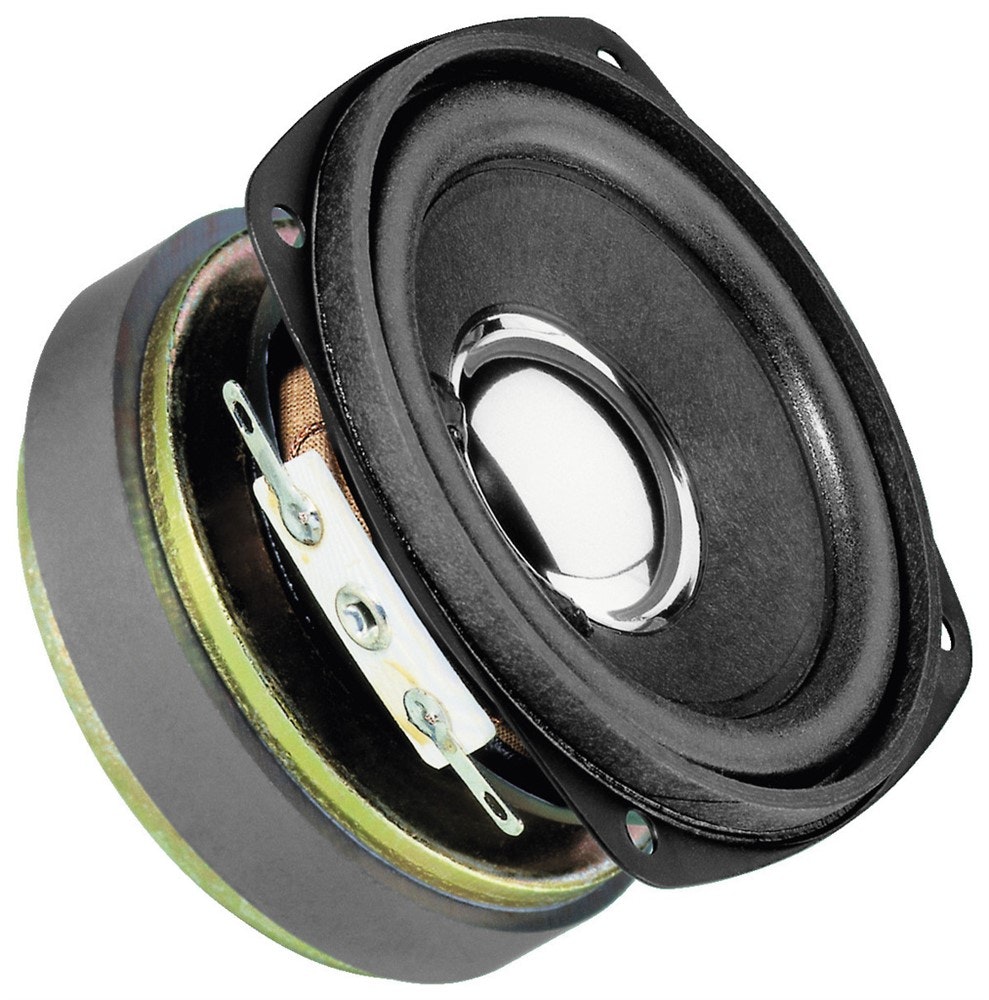

Monacor SP-45/4 3", 20Wrms, 4ohm
- 340 kr
Bas-mellanregisterhögtalare, 40 WMAX, 20 WRMS, 8 Ohm (/8) och 4 Ohm (/4) Särskilt lämpliga för miniatyrhögtalarsystem och kolumnhögtalare.EgenskaperImpedance (Z
Bas-mellanregisterhögtalare, 40 WMAX, 20 WRMS, 8 Ohm (/8) och 4 Ohm (/4) Särskilt lämpliga för miniatyrhögtalarsystem och kolumnhögtalare.
Egenskaper
| Impedance (Z) | 4 Ohm |
| Transmission method | - |
| Frequency range | f3-16,000 Hz |
| Resonant frequency (fs) | 120 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 20 W |
| Peak music power output (MAX) | 40 W |
| Sensitivity | 88 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 1.1 mm/N |
| Moving mass (Mms) | 1.6 g |
| Mech. Q factor (Qms) | 2.82 |
| Electr. Q factor (Qes) | 0.68 |
| Total Q factor (Qts) | 0.55 |
| Equivalent volume (Vas) | 1.5 l |
| DC resistance (Re) | 3.3 O |
| Force factor (BxL) | 2.40 Tm |
| Voice coil induct. (Le) | 0.1 mH |
| Voice coil diameter | Ø 19 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 0.75 mm |
| Eff. cone area (Sd) | 31 cm2 |
| Magnet weight | 150 g |
| Magnet diameter | Ø 70 mm |

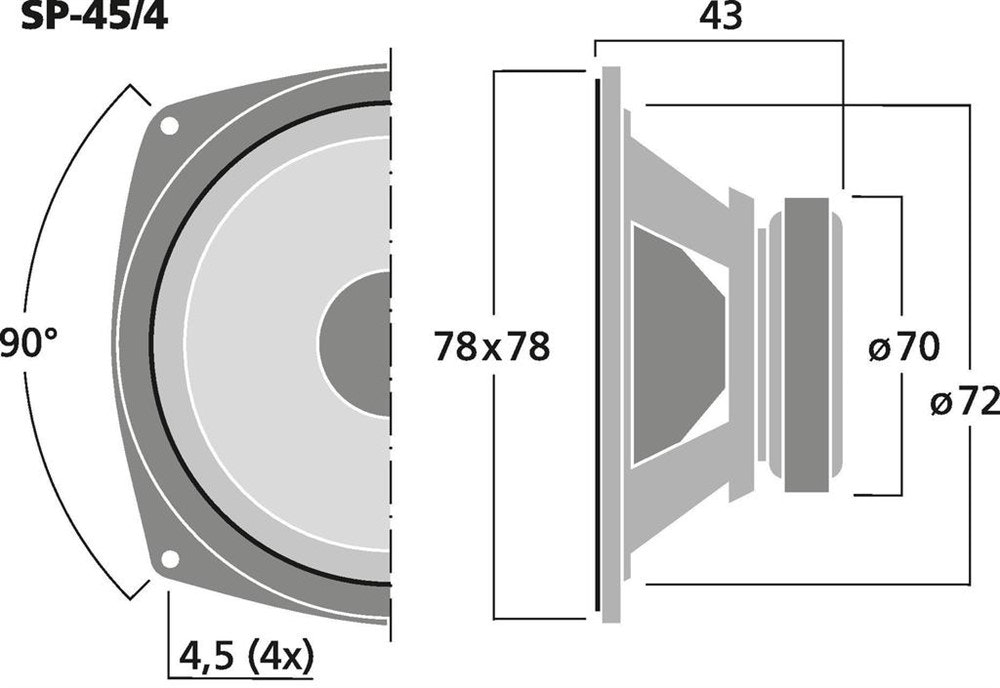

| Mounting cutout | Ø 72 mm |
| Mounting depth | 43 mm |
| Mounting hole diameter | Ø 84 mm |
| Hole spacing X-axis | 59.5 mm |
| Hole spacing Y-axis | 59.5 mm |
| Dimensions | 78 x 78 x 43 mm |
| Outside diameter | Ø 93 mm |
| Width | 78 mm |
| Height | 78 mm |
| Depth | 43 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.412 kg |
| Packing unit | 1 |
| Type of speaker | 3" |
