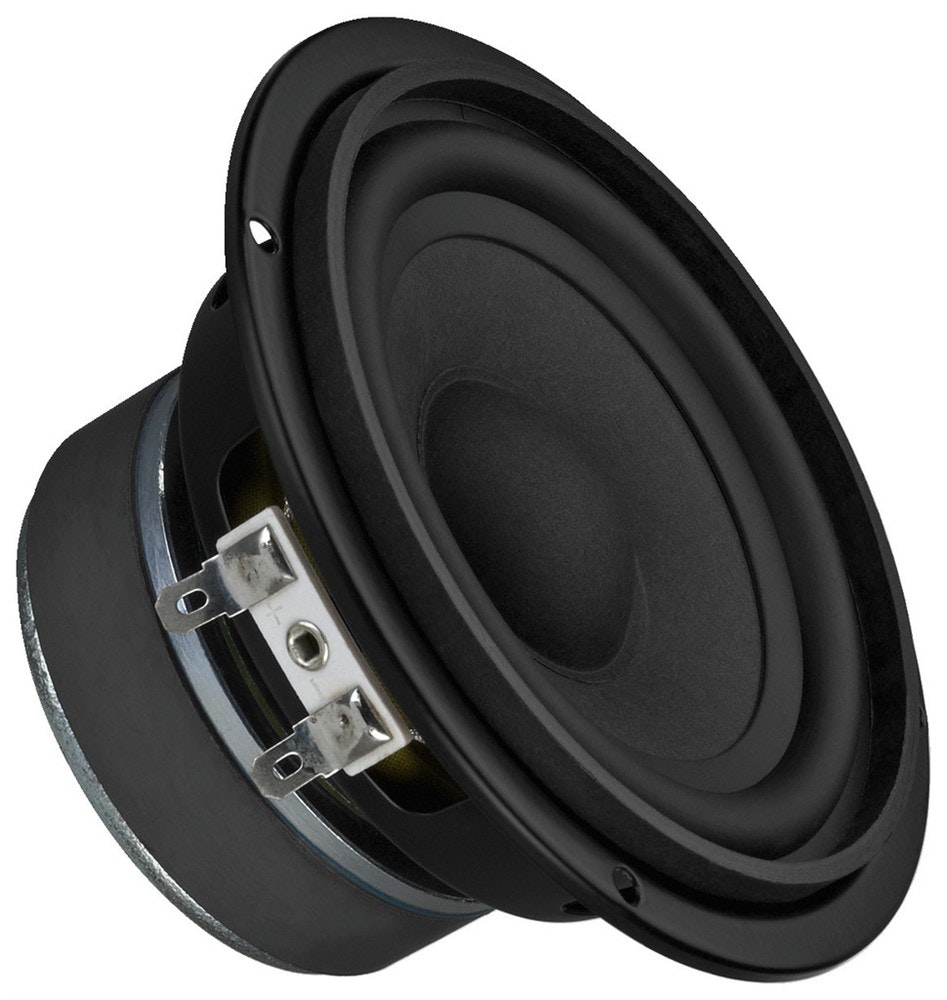

Monacor SPM-116/8 4", 40Wrms, 8ohm

Beskrivning
Hi-fi bas-mellanregisterhögtalare, 80 WMAX, 40 WRMS, 8 Ohm

 Utmärkt ersättningshögtalare av samma kvalitet som från originalutrustningstillverkaren
 Lågresonansig papperskon
 Långtidsstabil gummikant
 Också mycket väl lämpad för användning som full range högtalare

Egenskaper

Impedance (Z)	8 Ohm
Transmission method	-

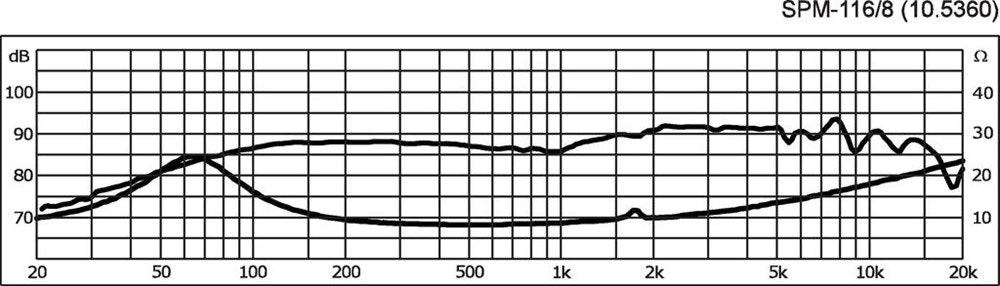

Frequency range	f3-18,000 Hz
Resonant frequency (fs)	75 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating (RMS)	40 W
Peak music power output (MAX)	80 W
Sensitivity	87 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.98 mm/N
Moving mass (Mms)	3.8 g
Mech. Q factor (Qms)	1.9
Electr. Q factor (Qes)	0.81
Total Q factor (Qts)	0.57
Equivalent volume (Vas)	4.5 l
DC resistance (Re)	7.2 O
Force factor (BxL)	4.20 Tm
Voice coil induct. (Le)	0.4 mH
Voice coil diameter	Ø 20.5 mm
Voice coil former	aluminium
Linear excursion (XMAX)	± 1.5 mm
Eff. cone area (Sd)	57 cm2
Magnet weight	230 g
Magnet diameter	Ø 70 mm

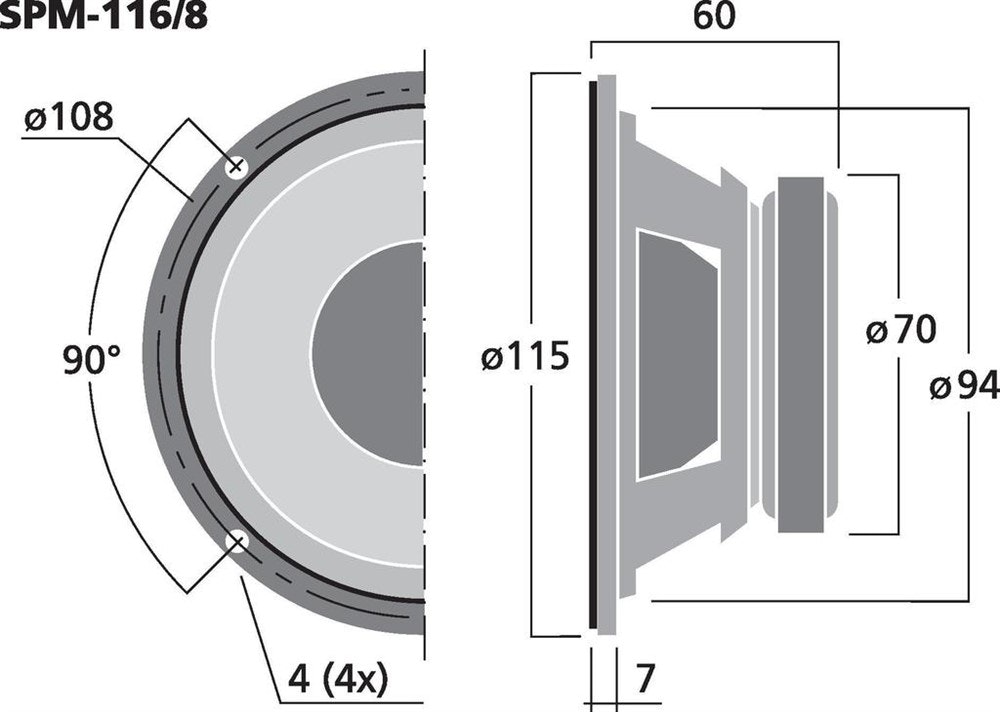

Mounting cutout	Ø 94 mm
Mounting depth	53 mm
Mounting hole diameter	Ø 108 mm
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 115 mm x 60 mm
Outside diameter	Ø 115 mm
Width	Ø 115 mm
Height	-
Depth	60 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.557 kg
Packing unit	1
Type of speaker	4"
