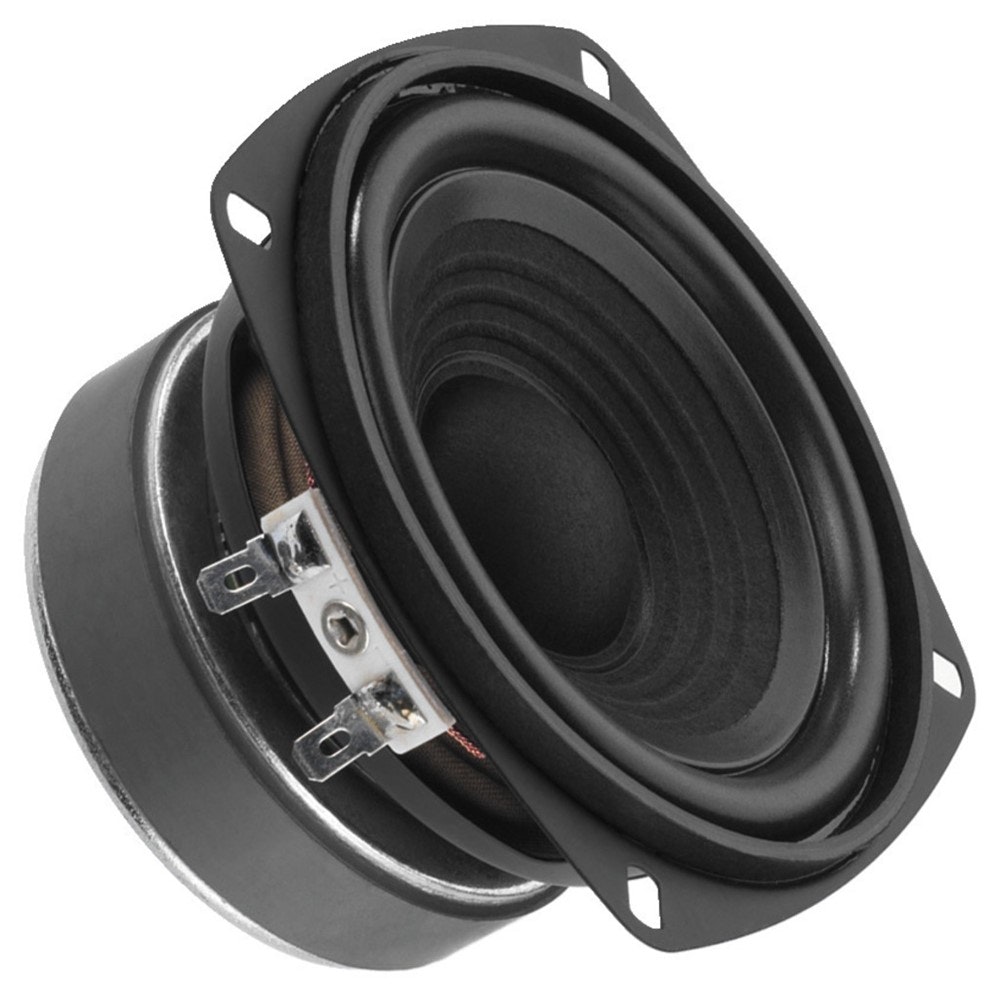

Monacor SP-60/8 4", 30Wrms, 8ohm

  • 382 kr

Hi-fi bas-mellanregisterhögtalare, 60 WMAX, 30 WRMS, 8 Ohm (/8) och 4 Ohm (/4)Borrad polkärna Bra linjäritet i frekvensgången För små högtalarsystem i

I lager.
Hi-fi bas-mellanregisterhögtalare, 60 WMAX, 30 WRMS, 8 Ohm (/8) och 4 Ohm (/4)

  • Borrad polkärna
  •  Bra linjäritet i frekvensgången
  •  För små högtalarsystem i hi-fi-området

Egenskaper

Impedance (Z)8 Ohm
Transmission method-

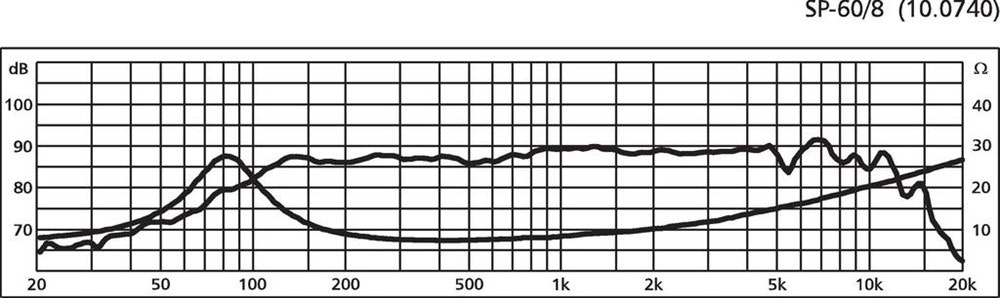

Frequency rangef3-8,000 Hz
Resonant frequency (fs)65 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)30 W
Peak music power output (MAX)60 W
Sensitivity90 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.8 mm/N
Moving mass (Mms)4 g
Mech. Q factor (Qms)2.10
Electr. Q factor (Qes)0.64
Total Q factor (Qts)0.49
Equivalent volume (Vas)6 l
DC resistance (Re)6.5 O
Force factor (BxL)4.10 Tm
Voice coil induct. (Le)0.3 mH
Voice coil diameterØ 25.5 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 2 mm
Eff. cone area (Sd)55 cm2
Magnet weight280 g
Magnet diameterØ 80 mm

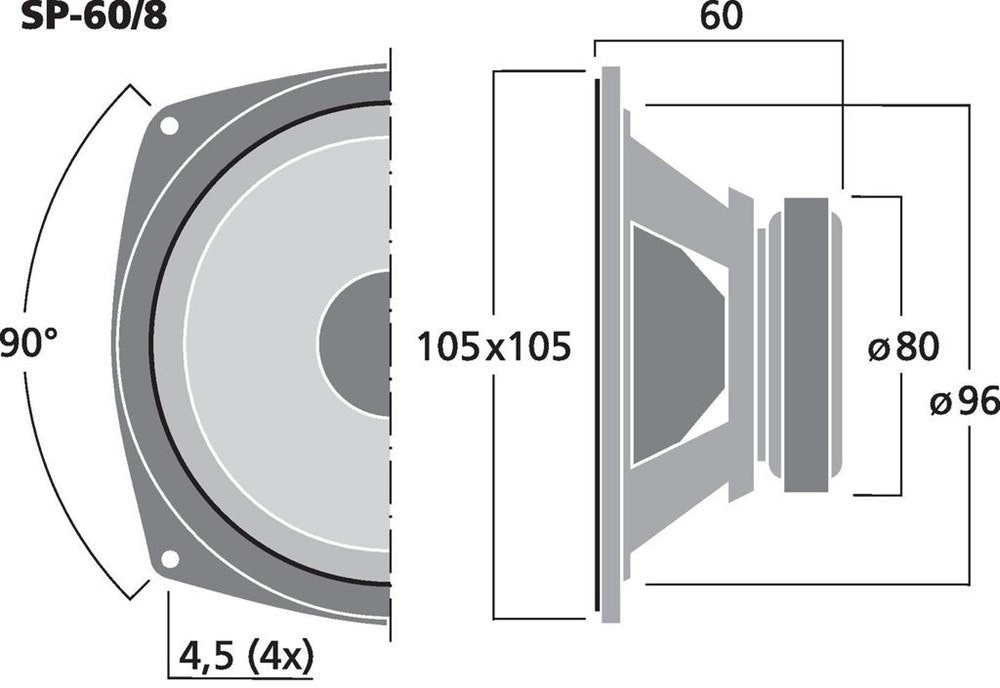

Mounting cutoutØ 96 mm
Mounting depth60 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
Dimensions105 x 105 x 60 mm
Outside diameter-
Width105 mm
Height105 mm
Depth60 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.654 kg
Packing unit1
Type of speaker4"
