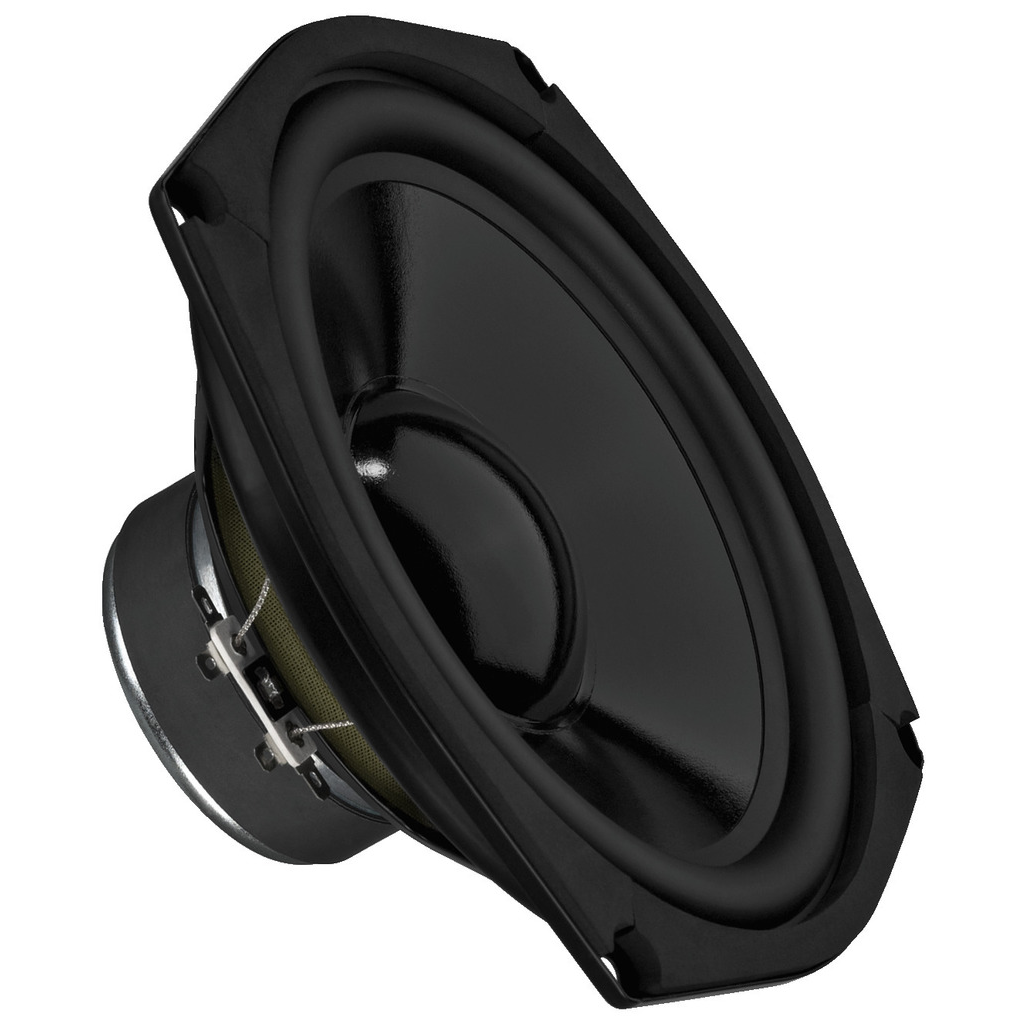

Monacor SPM-205/4 8'' Bas/mellenregister

  • 510 kr

Hi-fi bass-midrange speakers, 150 WMAX, 70 WRMS, 8 ohm (/8) and 4 ohm (/4)Excellent replacement speakers of the same quality as from the original equi

I lager.

Hi-fi bass-midrange speakers, 150 WMAX, 70 WRMS, 8 ohm (/8) and 4 ohm (/4)

  • Excellent replacement speakers of the same quality as from the original equipment manufacturer
  • Coated low-resonance paper cone
  • Long-term stable rubber surround
  • To be used preferably in closed or transmission line cabinets

Egenskaper

Impedance (Z)4 Ohm
Transmission method-
Frequency rangef3-5,000 Hz
Resonant frequency (fs)37 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)70 W
Peak music power output (MAX)150 W
Sensitivity89 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.98 mm/N
Moving mass (Mms)18 g
Mech. Q factor (Qms)2.71
Electr. Q factor (Qes)0.68
Total Q factor (Qts)0.55
Equivalent volume (Vas)72 l
DC resistance (Re)3.6 O
Force factor (BxL)4.75 Tm
Voice coil induct. (Le)0.65 mH
Voice coil diameterØ 25.5 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 3 mm
Eff. cone area (Sd)210 cm2
Magnet weight380 g
Magnet diameterØ 80 mm
Mounting cutoutØ 183 mm
Mounting depth80 mm
Mounting hole diameterØ 216 mm
Hole spacing X-axis-
Hole spacing Y-axis-

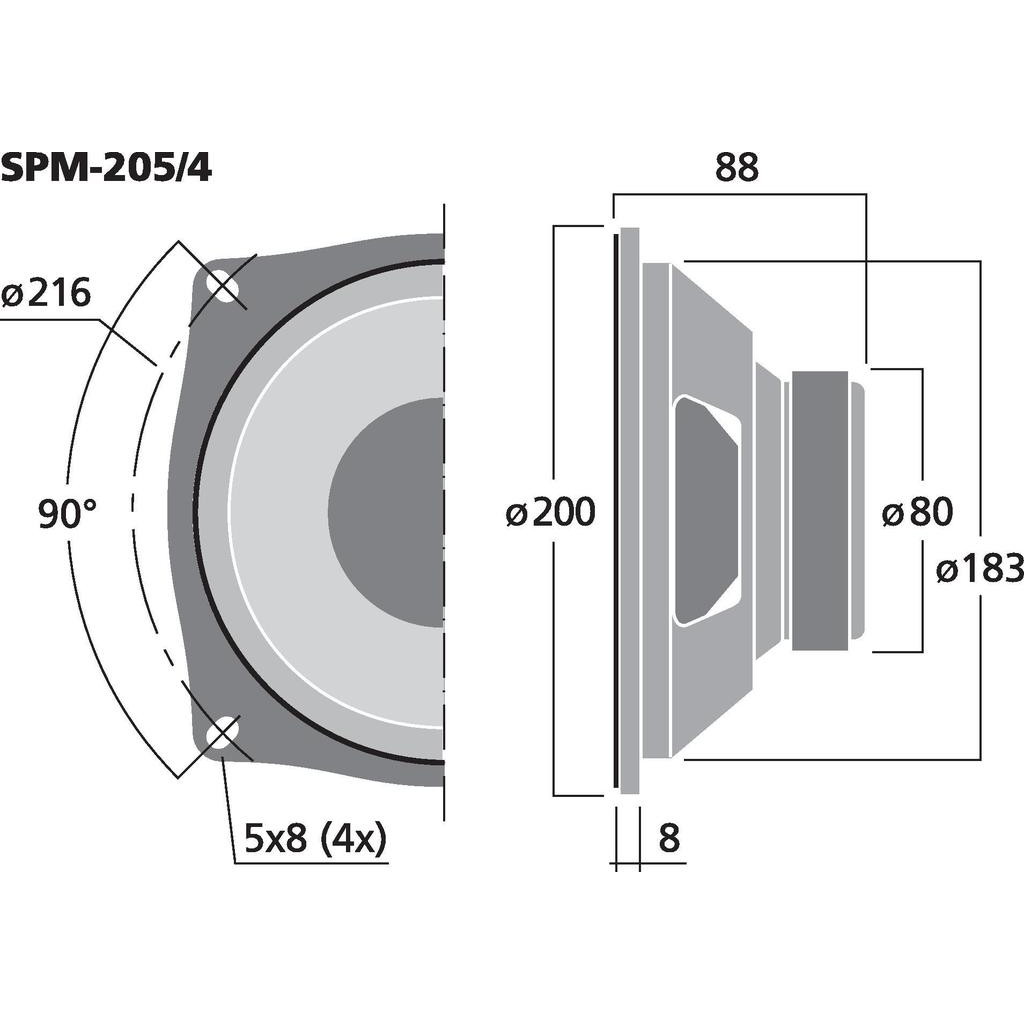

DimensionsØ 200 mm x 88 mm
Outside diameterØ 200 mm
WidthØ 200 mm
Height-
Depth88 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.062 kg
Packing unit1
Type of speaker8"
