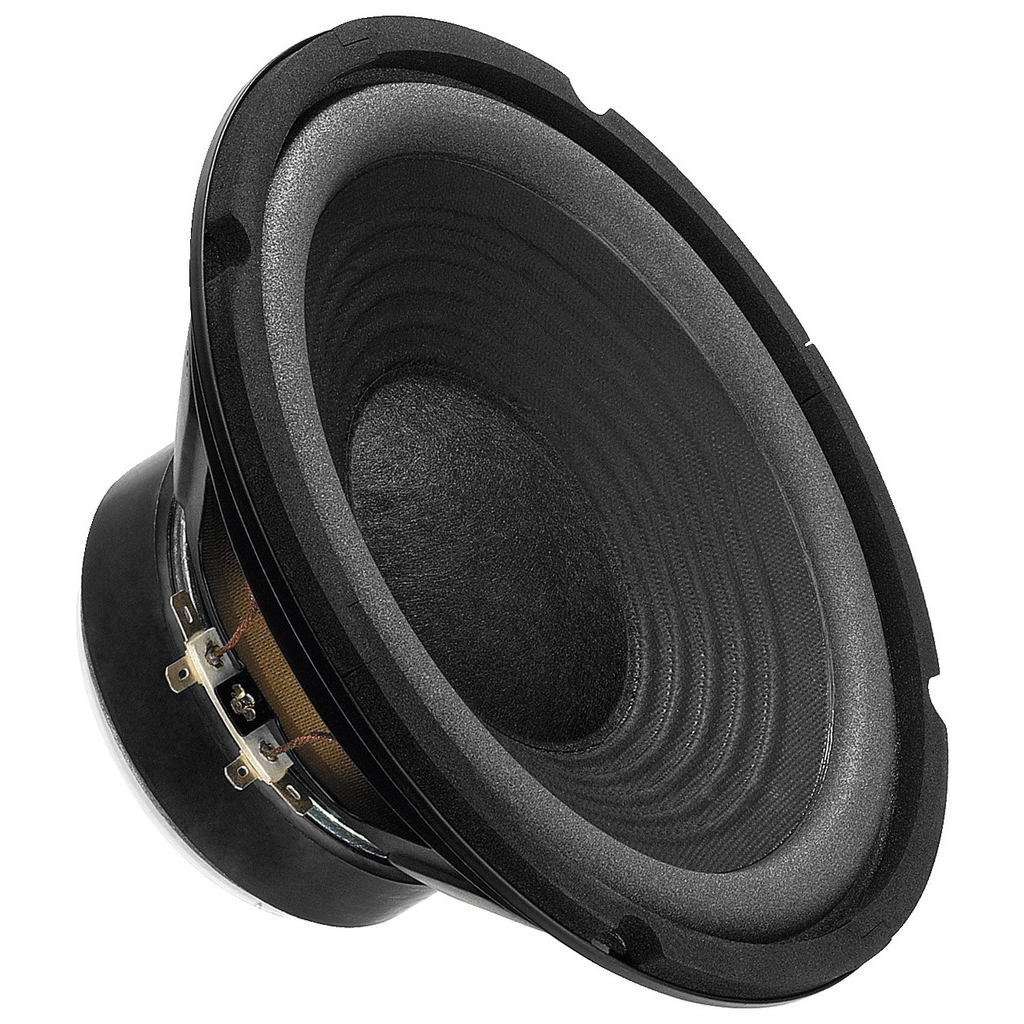

Monacor SP-202E 8'' Bas/mellanregisterhögtalare

  • 489 kr

Series of 4? hi-fi speakers for universal applications.Well  manufactured and ideally suited e.g. as replacement speakers due to the  exceptional pric

I lager.

Series of 4? hi-fi speakers for universal applications.
Well  manufactured and ideally suited e.g. as replacement speakers due to the  exceptional price and their multi-purpose drive qualities.

Hi-fi bass-midrange speaker, 100 WMAX, 50 WRMS, 4 ohm

  • Multi-purpose speaker
  • Foam surround
  • Replacement speaker for closed speaker systems

HOBBY HIFI 04/2013
"A  very talented 2-way speaker, thanks to a very clean reproduction of the  midrange. Despite a very attractive price, the SP-202E from MONACOR is  ideally suited for 2-way applications and promises an excellent sound  quality."

TEKNISK DATA:
Impedance (Z)4 ohm
Transmission method-
Frequency rangef3-6,000 Hz
Resonant frequency (fs)51 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)50 W
Peak music power output (MAX)100 W
Sensitivity93 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.62 mm/N
Moving mass (Mms)15 g
Mech. Q factor (Qms)4.5
Electr. Q factor (Qes)0.81
Total Q factor (Qts)0.69
Equivalent volume (Vas)39 l
DC resistance (Re)3.85 ?
Force factor (BxL)4.86 Tm
Voice coil induct. (Le)0.6 mH
Voice coil diameterØ 25.5 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 2.5 mm
Eff. cone area (Sd)210 cm2
Magnet weight570 g
Magnet diameter-

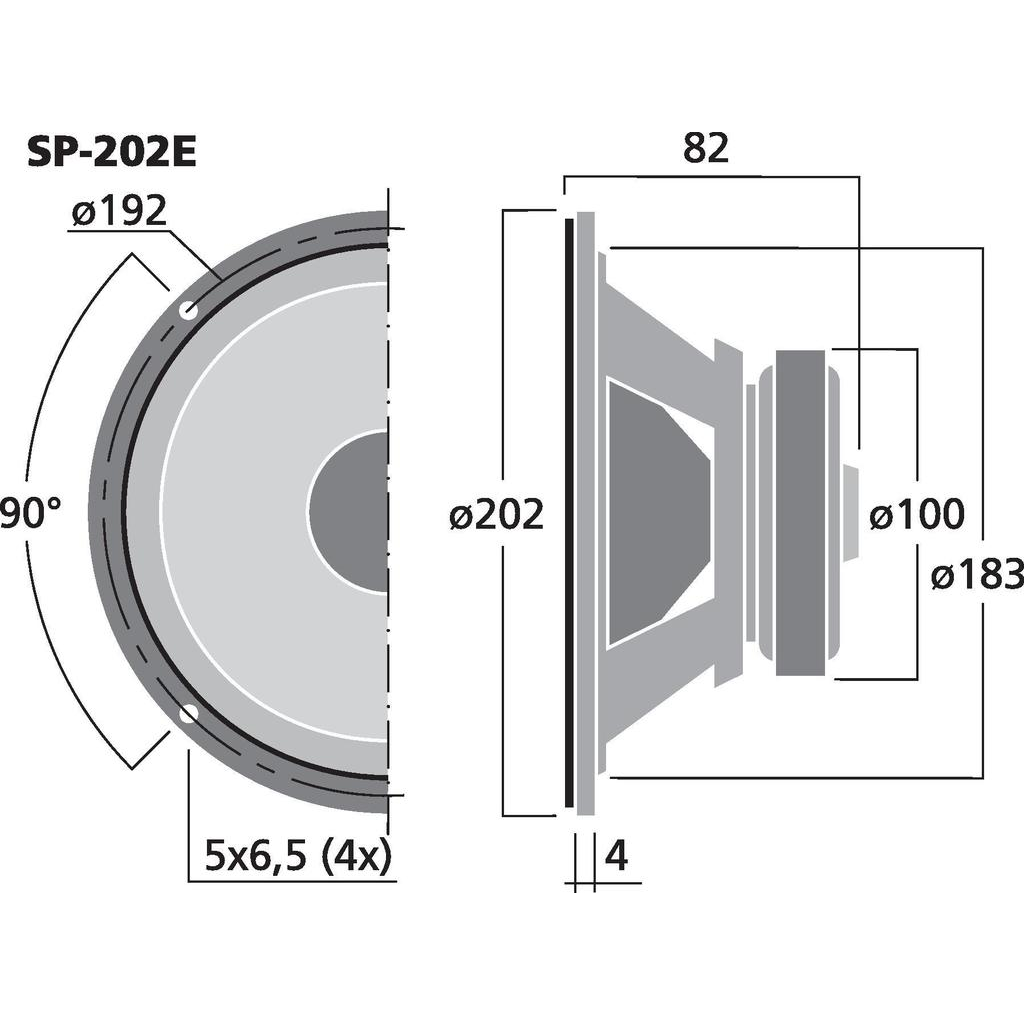

Mounting cutoutØ 183 mm
Mounting depth82 mm
Mounting hole diameterØ 192 mm
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 202 mm x 82 mm
Outside diameterØ 202 mm
WidthØ 202 mm
Height-
Depth82 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.39 kg
Packing unit1
Type of speaker8"
