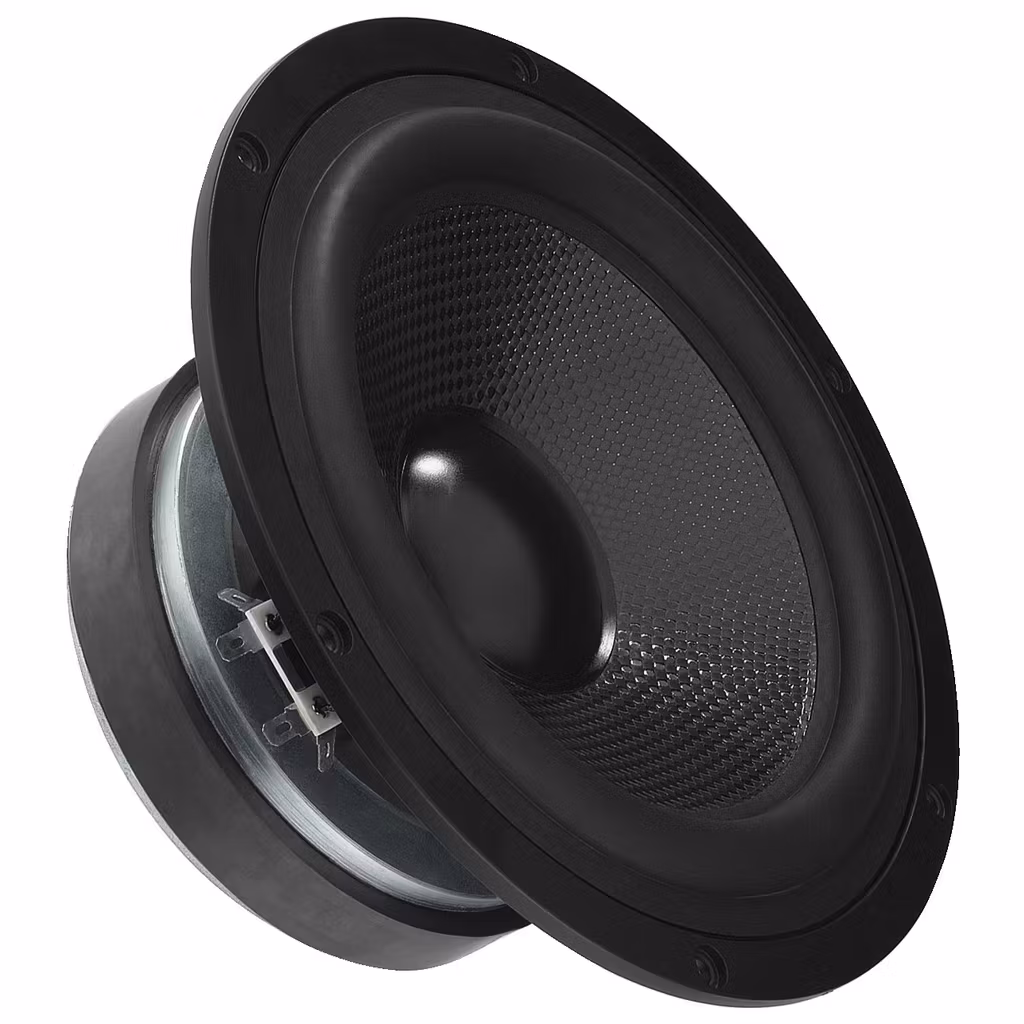

Monacor SPH-225C 8'' Bas/mellanregisterhögtalare
- 1 950 kr
Hi-fi Bass Speakers and Hi-fi Bass-Midrange SpeakersExtra high quality, perfect workmanship and elegant design, with aluminium basket, carbon fibre
Hi-fi Bass Speakers and Hi-fi Bass-Midrange Speakers
Extra high quality, perfect workmanship and elegant design, with aluminium basket, carbon fibre cone and extra long excursion, an impulsive and deep bass reproduction from a partly surprisingly small size.
High-end bass speaker, 150 WMAX, 120 WRMS, 8 ?
- High-rigidity cone
- Extra long excursion
- Small loss and low distortion
- For an impressive fundamental bass in any high-quality hi-fi combination and smaller subwoofers
- Also possible as a bass-midrange speaker in 2-way combinations
- Suitable for cabinets of extra small dimensions
Klang+Ton 06/2014
"Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials."
Egenskaper
| Impedance (Z) | 8 Ohm |
| Transmission method | - |

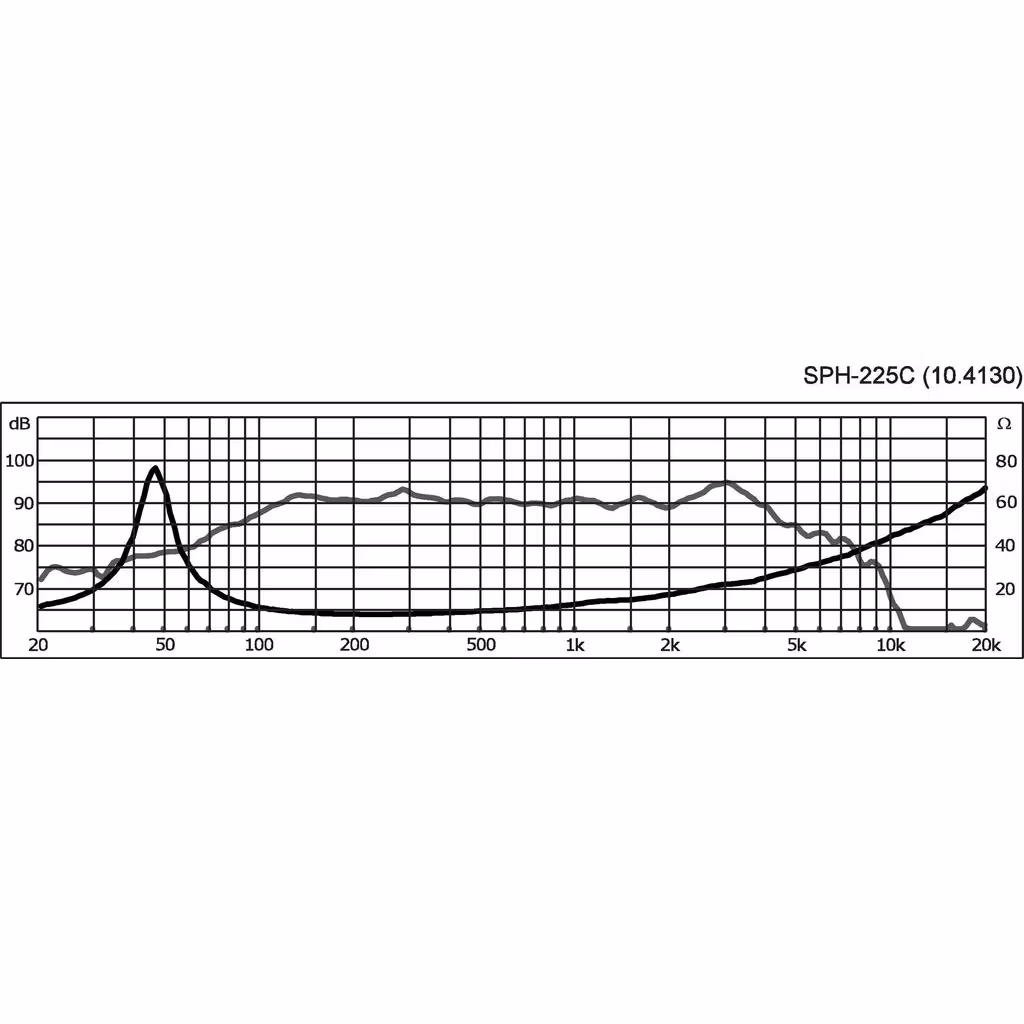

| Frequency range | f3-3,000 Hz |
| Resonant frequency (fs) | 39 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 120 W |
| Peak music power output (MAX) | 200 W |
| Sensitivity | 90 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 0.43 mm/N |
| Moving mass (Mms) | 36.6 g |
| Mech. Q factor (Qms) | 4.94 |
| Electr. Q factor (Qes) | 0.31 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 24 l |
| DC resistance (Re) | 5.9 O |
| Force factor (BxL) | 13.17 Tm |
| Voice coil induct. (Le) | 0.8 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 6 mm |
| Eff. cone area (Sd) | 201 cm2 |
| Magnet weight | 1.1 kg |
| Magnet diameter | Ø 140 mm |
| Mounting cutout | Ø 181 mm |
| Mounting depth | 97 mm |
| Mounting hole diameter | Ø 209 mm |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

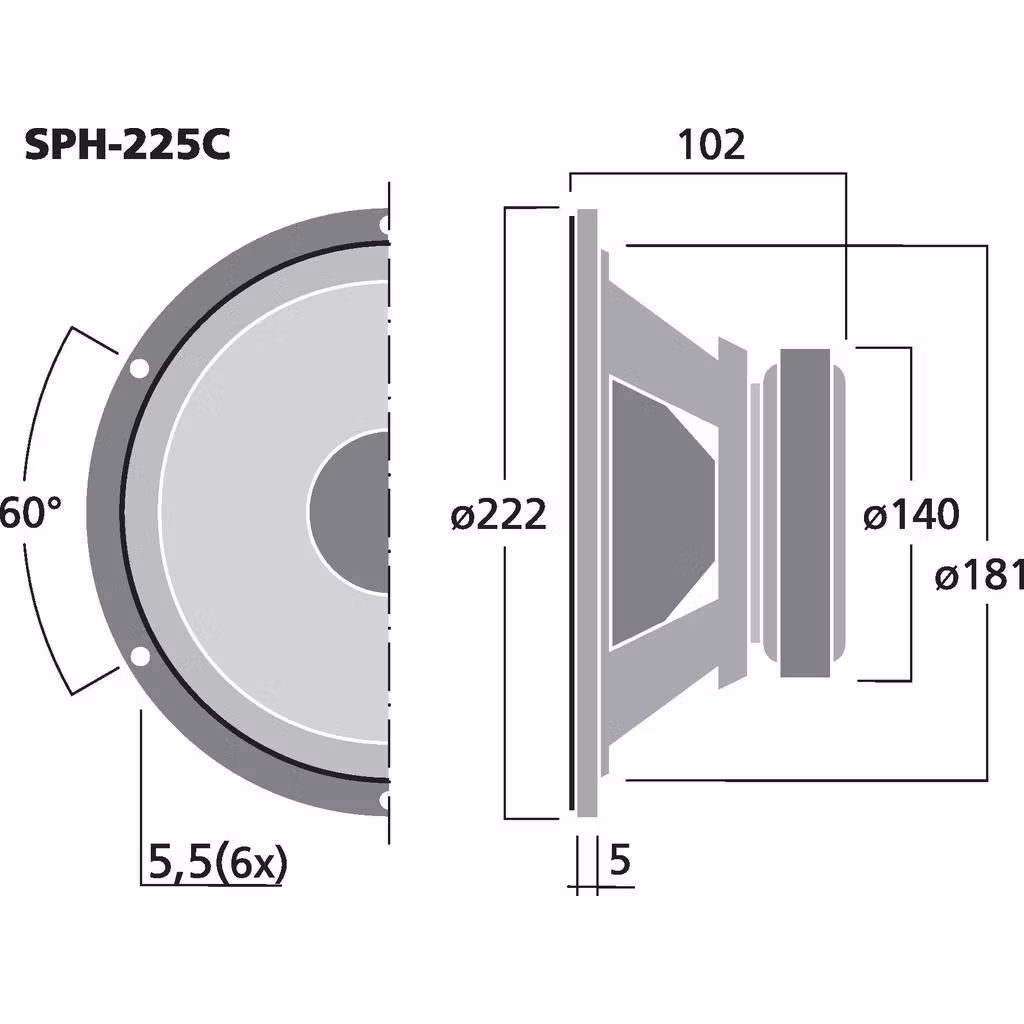

| Dimensions | Ø 222 mm x 102 mm |
| Outside diameter | Ø 222 mm |
| Width | Ø 222 mm |
| Height | - |
| Depth | 102 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 3.52 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
