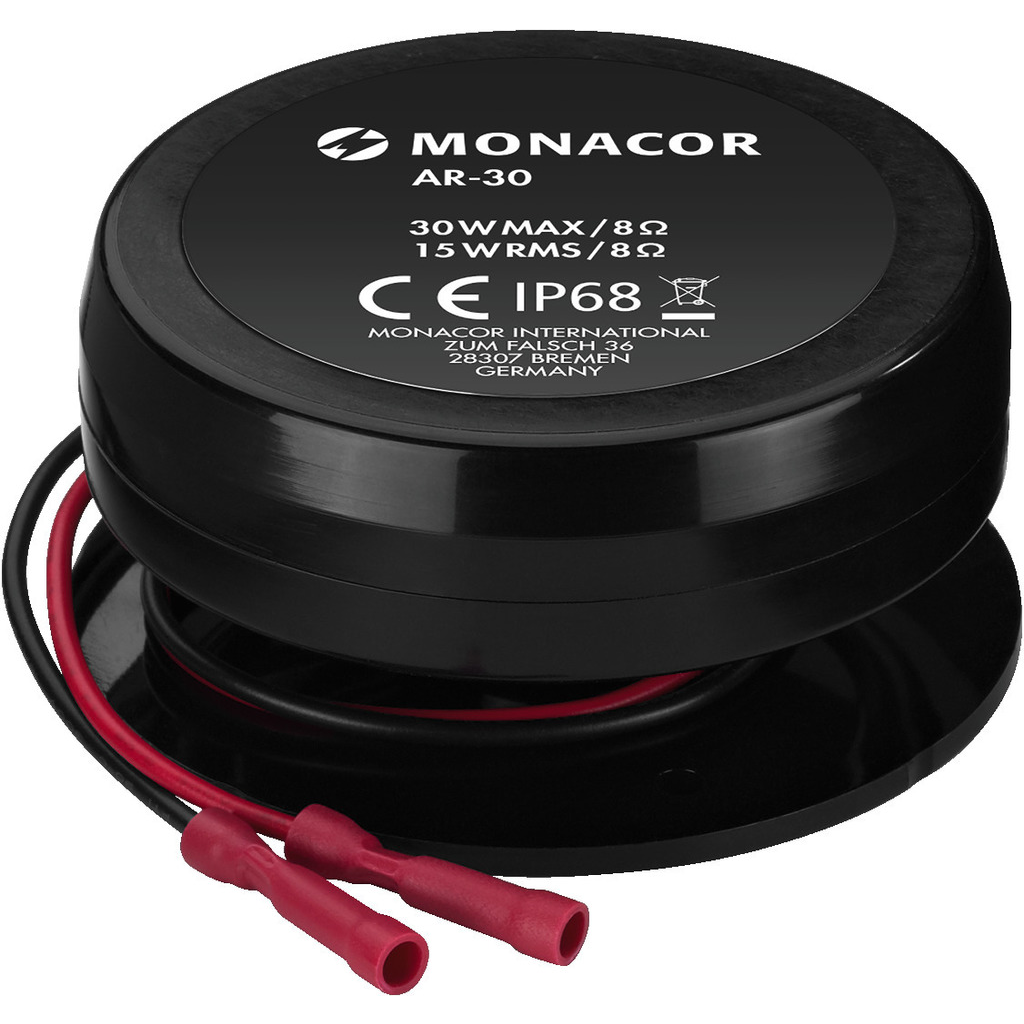

Monacor AR-30 högtalare
- 479 kr
Weatherproof and Robust Exciters/Resonators for music and voice reproductions via surfaces capable of vibrating. These resonators are simply screwed onto doors,
Weatherproof and Robust Exciters/Resonators for music and voice reproductions via surfaces capable of vibrating. These resonators are simply screwed onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces already create a partly impressive sound in the entire surrounding area. These resonators are not suitable for use on glass surfaces!
Egenskaper
| Impedance (Z) | 8 Ohm |
| Transmission method | - |
| Frequency range | dep. on the installation |
| Resonant frequency (fs) | 600 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 15 W |
| Peak music power output (MAX) | 30 W |
| Sensitivity | no data |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | - |
| Moving mass (Mms) | - |
| Mech. Q factor (Qms) | - |
| Electr. Q factor (Qes) | - |
| Total Q factor (Qts) | - |
| Equivalent volume (Vas) | - |
| DC resistance (Re) | - |
| Force factor (BxL) | - |
| Voice coil induct. (Le) | - |
| Voice coil diameter | - |
| Voice coil former | - |
| Linear excursion (XMAX) | - |
| Eff. cone area (Sd) | - |
| Magnet weight | - |
| Magnet diameter | - |
| Mounting cutout | not applicable |
| Mounting depth | - |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | 80 mm x 40 mm |
| Outside diameter | Ø 80 mm |
| Width | Ø 80 mm |
| Height | 40 mm |
| Depth | - |
| Protective class | IP68 |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.425 kg |
| Packing unit | 1 |
| Type of speaker | - |
