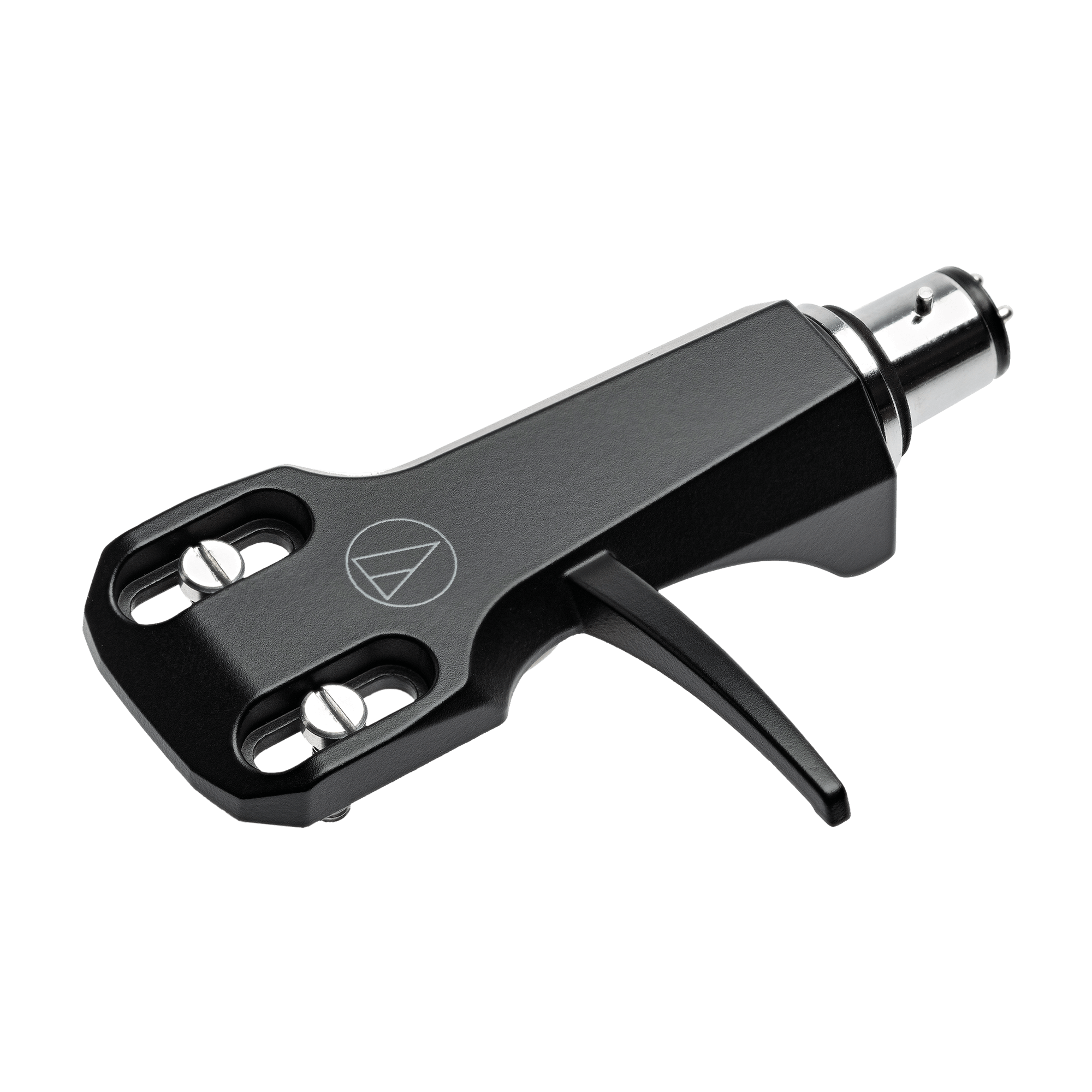

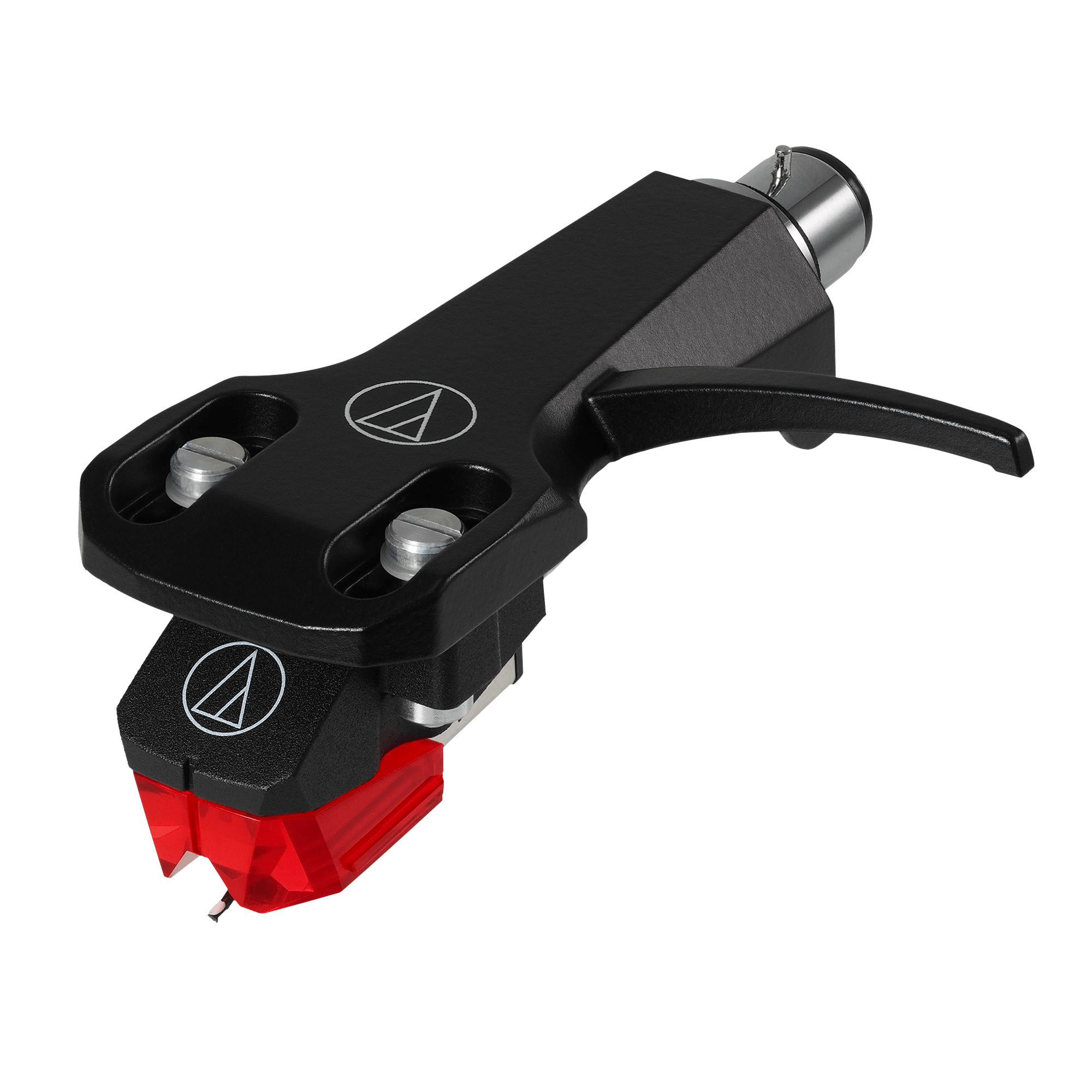

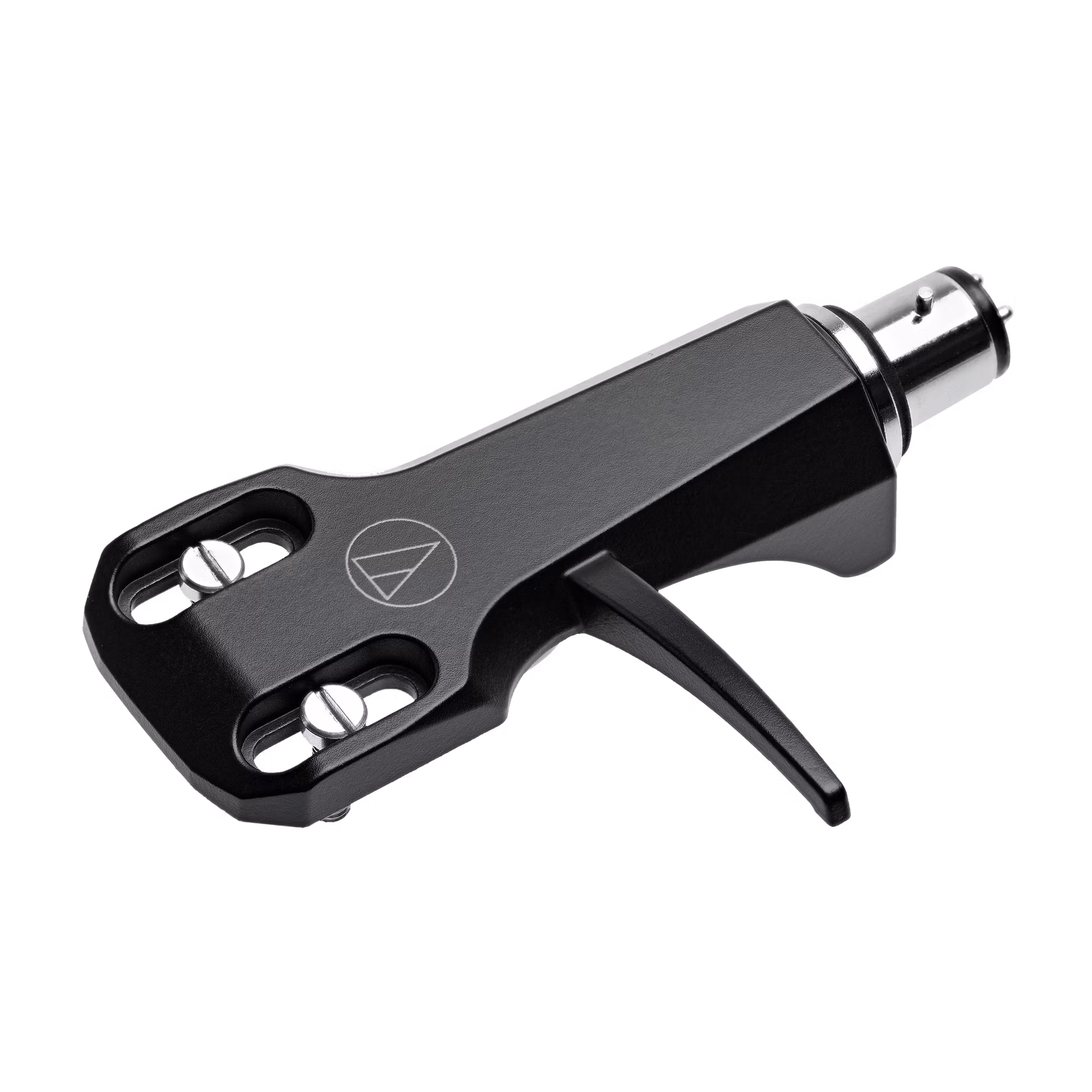

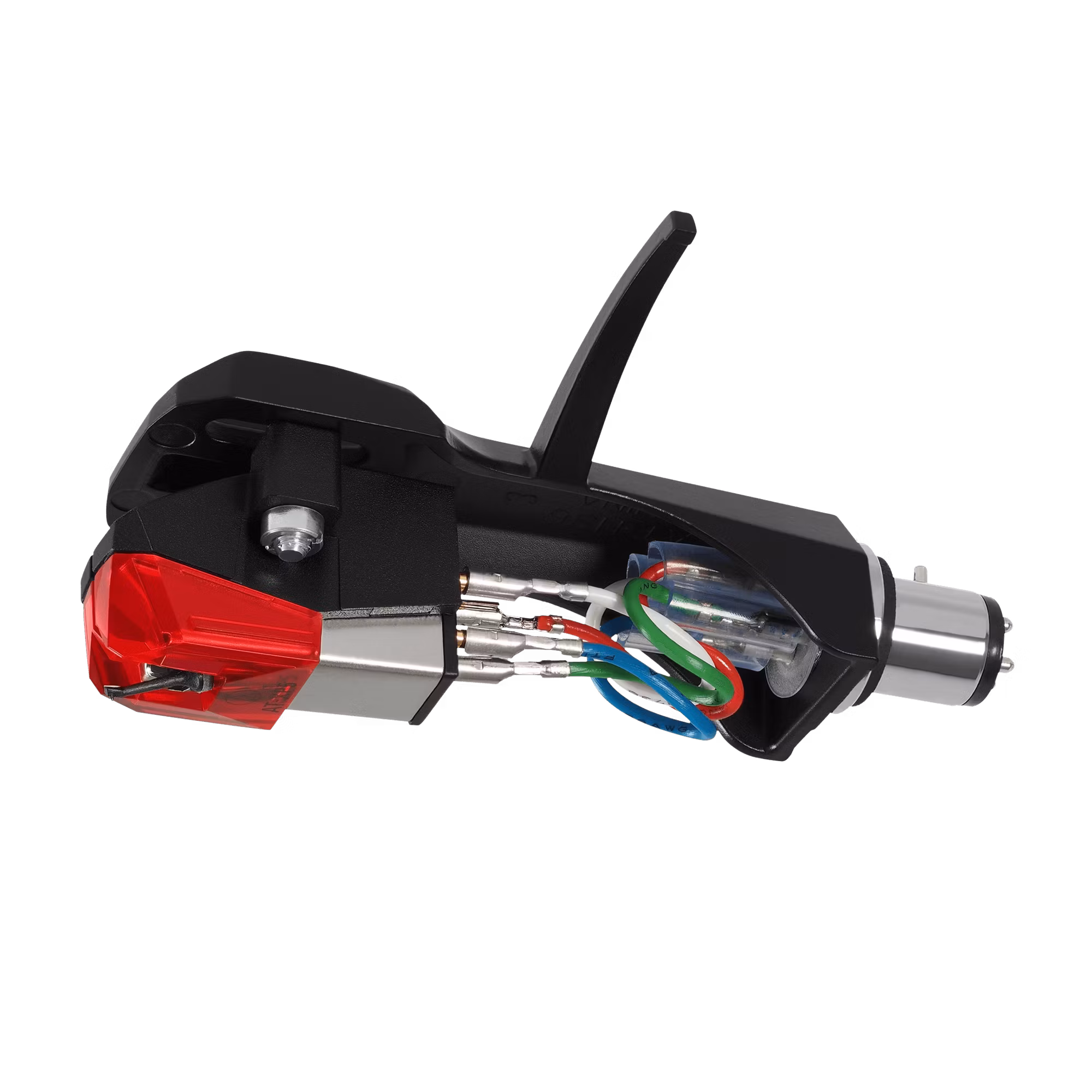

Audio Technica AT-XP5/H Cartridge Mounted with AT-HS6BK Headshell

  • 1 190 kr

AT-XP5/H The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.Cartridge & StylusFrequency Response20 - 18,000 HzChan

I lager.

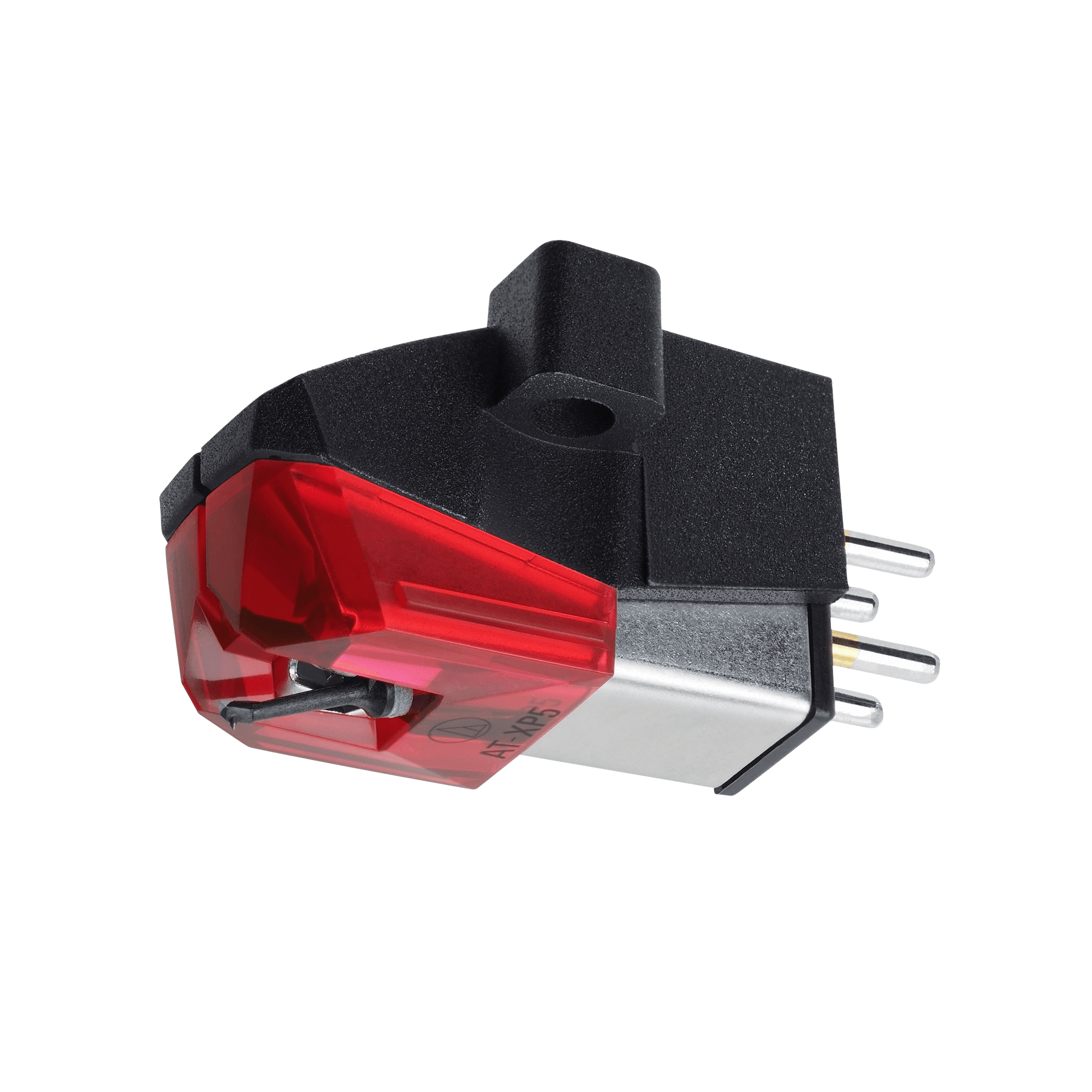

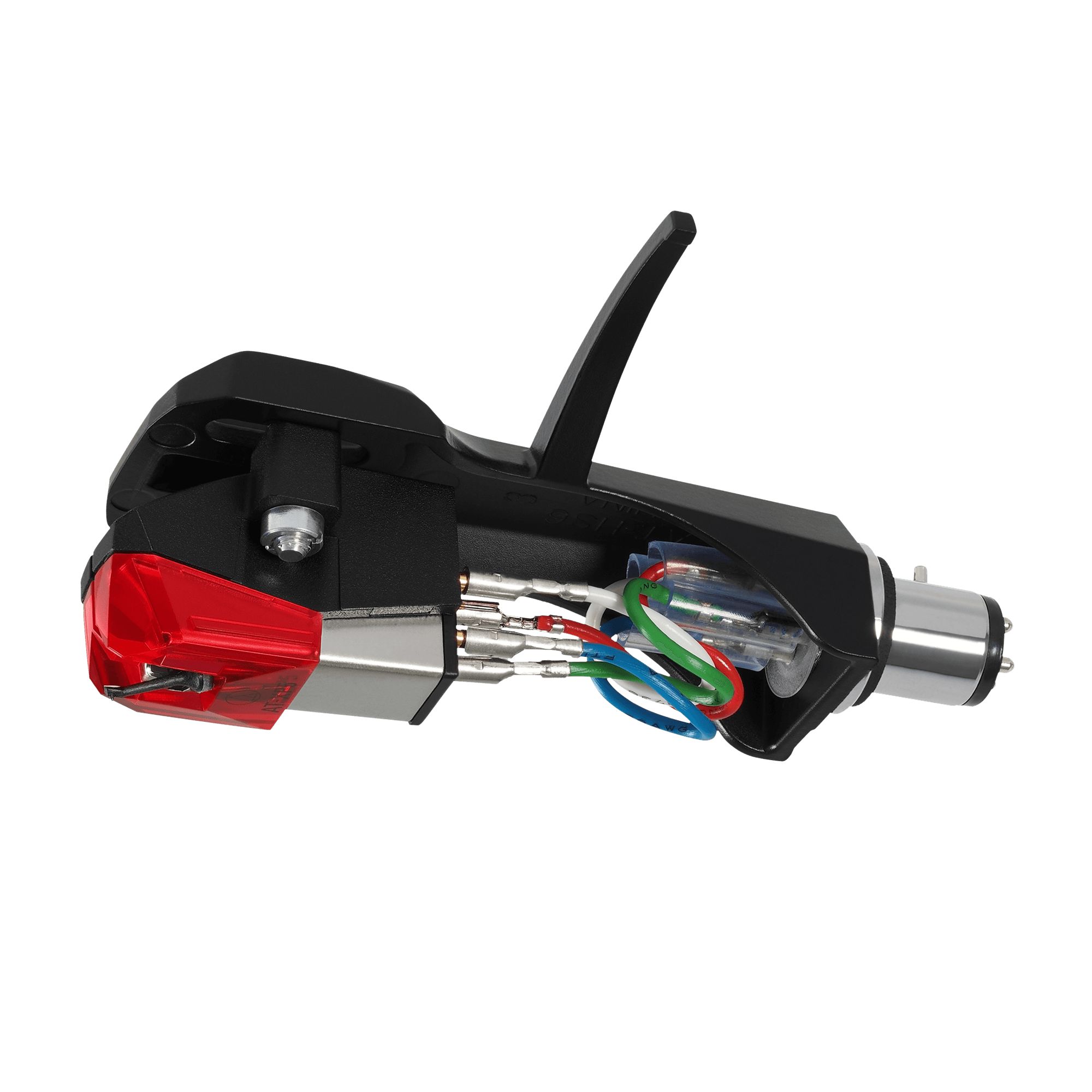

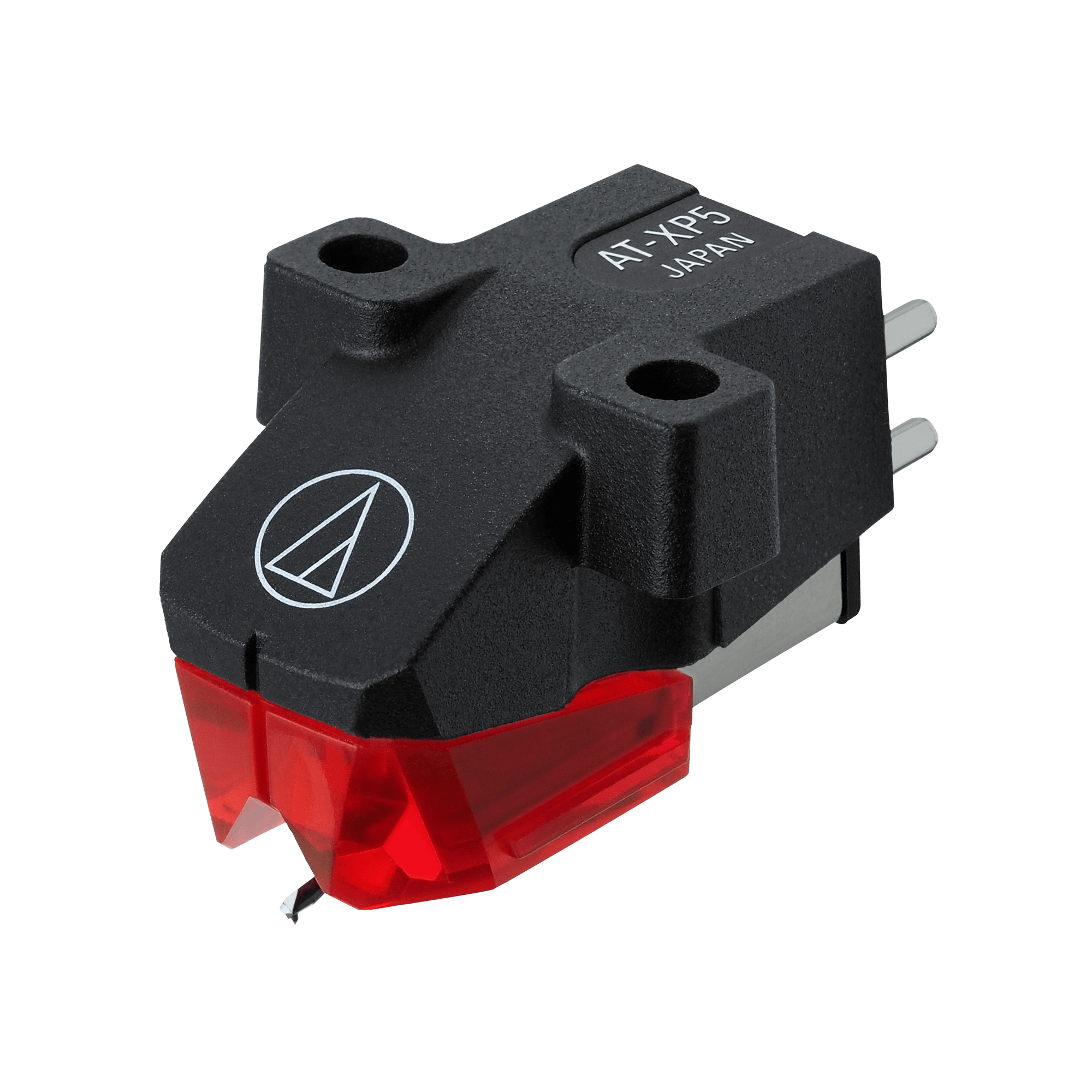

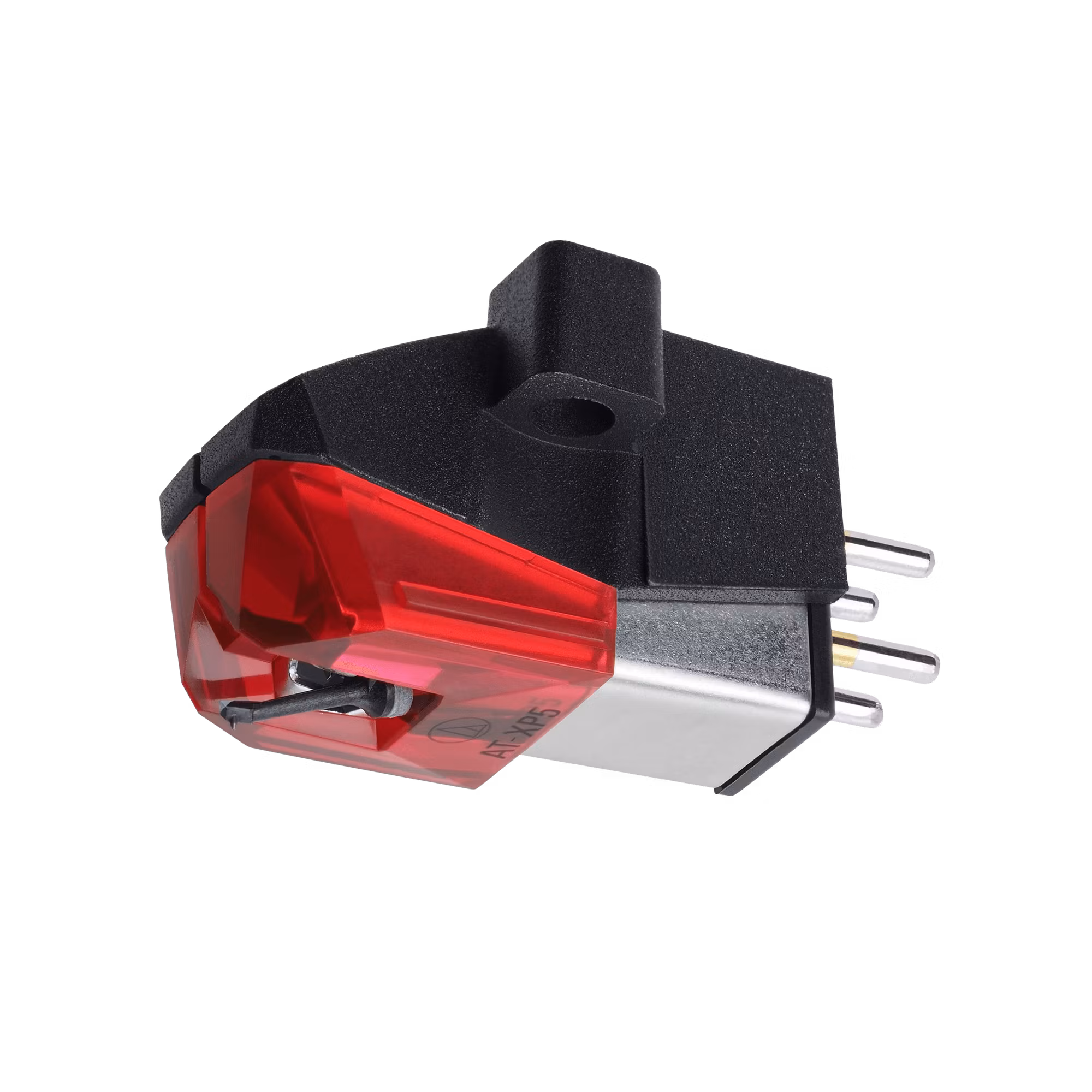

AT-XP5/H The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.

Cartridge & Stylus
Frequency Response20 - 18,000 Hz
Channel Separation20 dB (1 kHz)
Vertical Tracking Angle20 degrees
Vertical Tracking Force2.0 to 4.0 g (standard 3g)
Stylus ConstructionBonded Round Shank
Recommended Load Impedance47,000 Ω
Coil Impedance6,700 ohms (1 kHz)
Coil Inductance1.0 H (1 kHz)
Output Voltage5.5 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance2.0 dB (1 kHz)

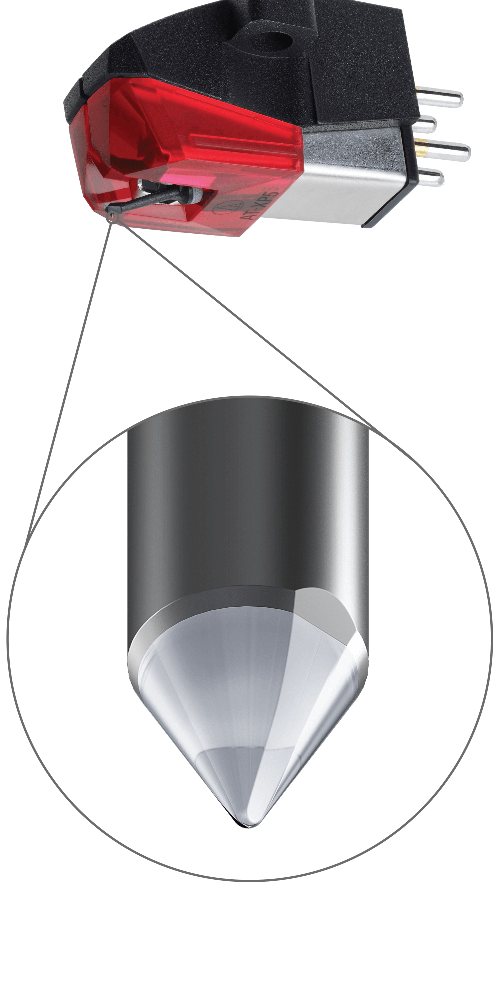

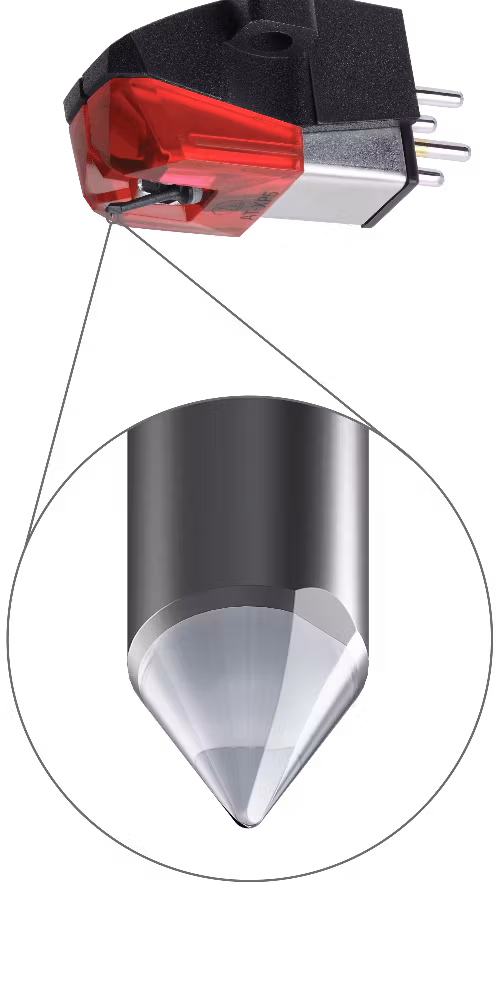

Stylus ShapeElliptical
CantileverCarbon reinforced ABS
Static Compliance20 x 10 – 6 cm / dyne
Dynamic Compliance6.0 x 10 – 6 cm / dyne (100 Hz)
MountingHalf-inch
Cartridge Weight15.6g
Dimensions21.2 × 21.4 × 62.4 ( H x W x D mm)
ModelAT-XP5/H
Recommended Load Capacitance100-200 pF
Replacement StylusATN-XP5
Stylus Size0.3 x 0.7 mil
