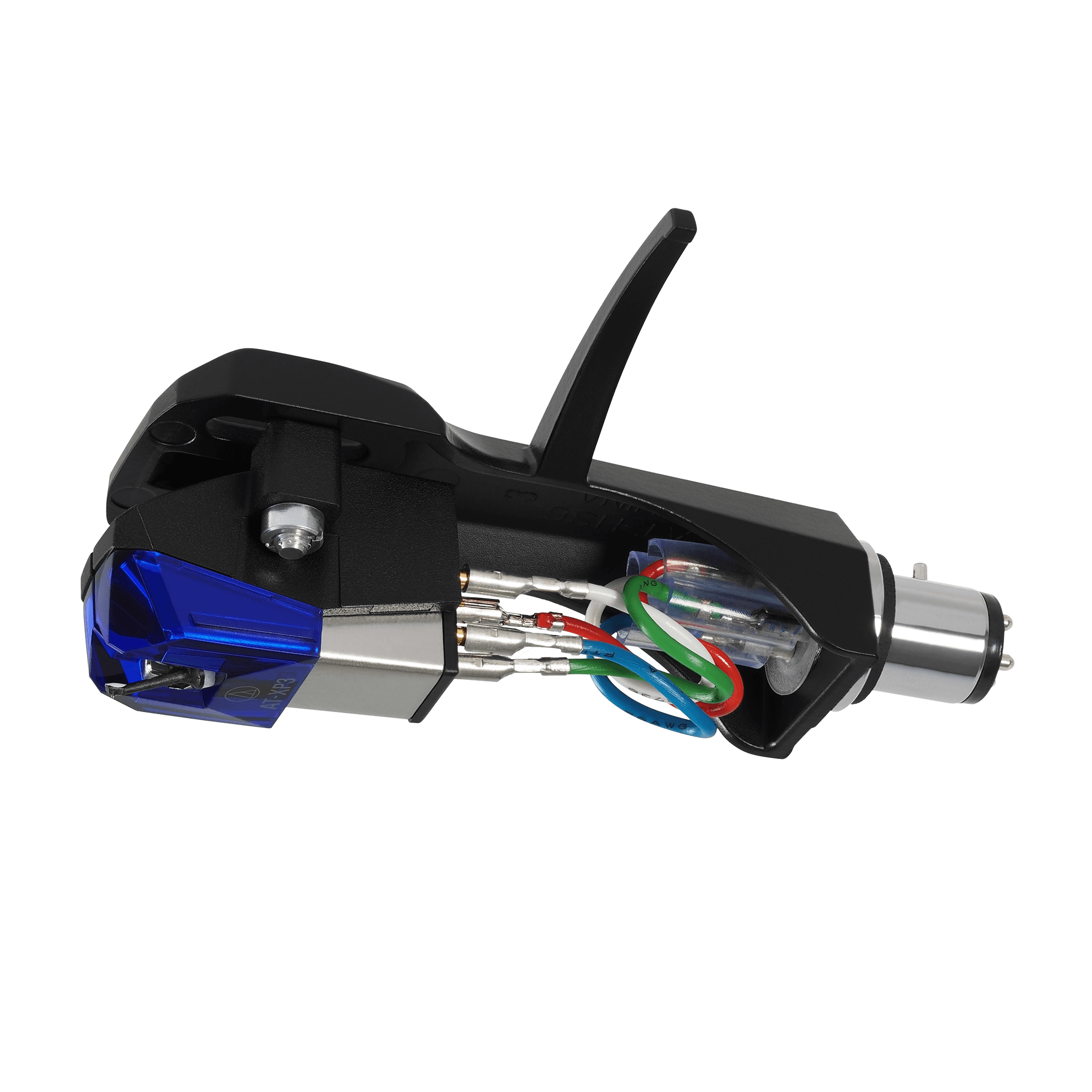

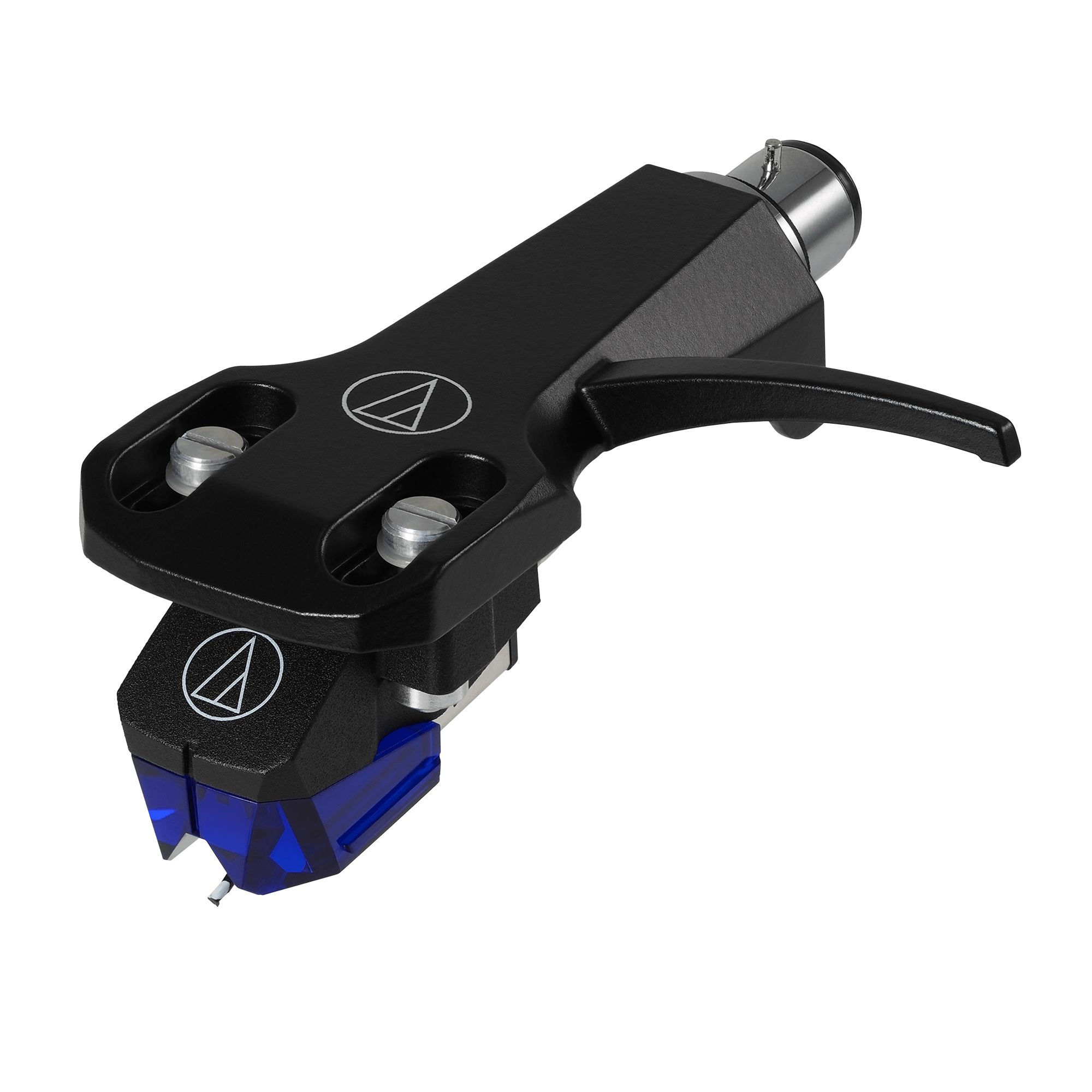

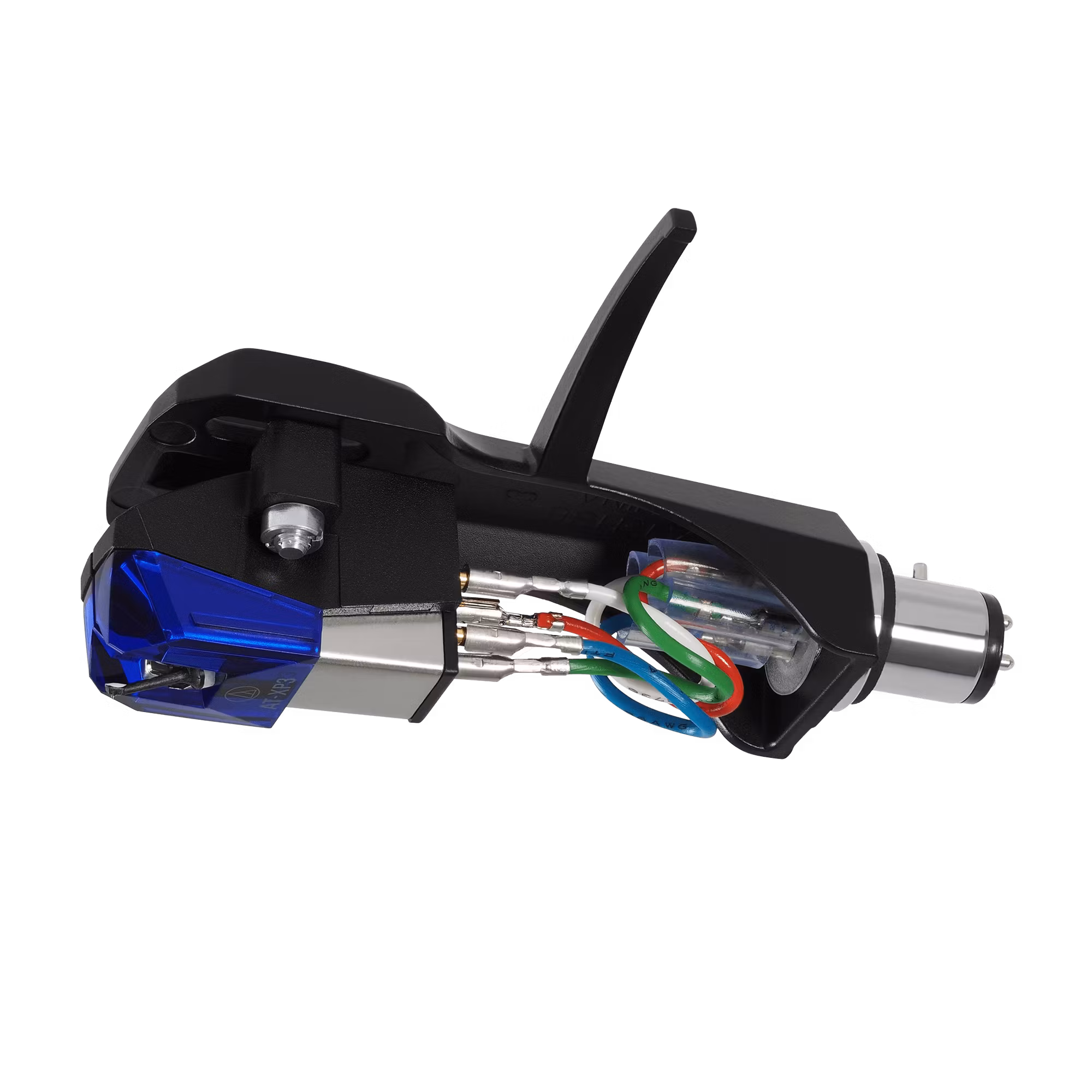

Audio Technica AT-XP3/H pickup monterad i AT-HS6BK pickupskal

  • 899 kr

AT-XP3/H The AT-XP3/H combo kit includes the AT-XP3 DJ cartridge premounted on the AT-HS6BK headshellCartridge & StylusFrequency Response20 to 18,000 HzChan

I lager.
Lagersaldo: 1

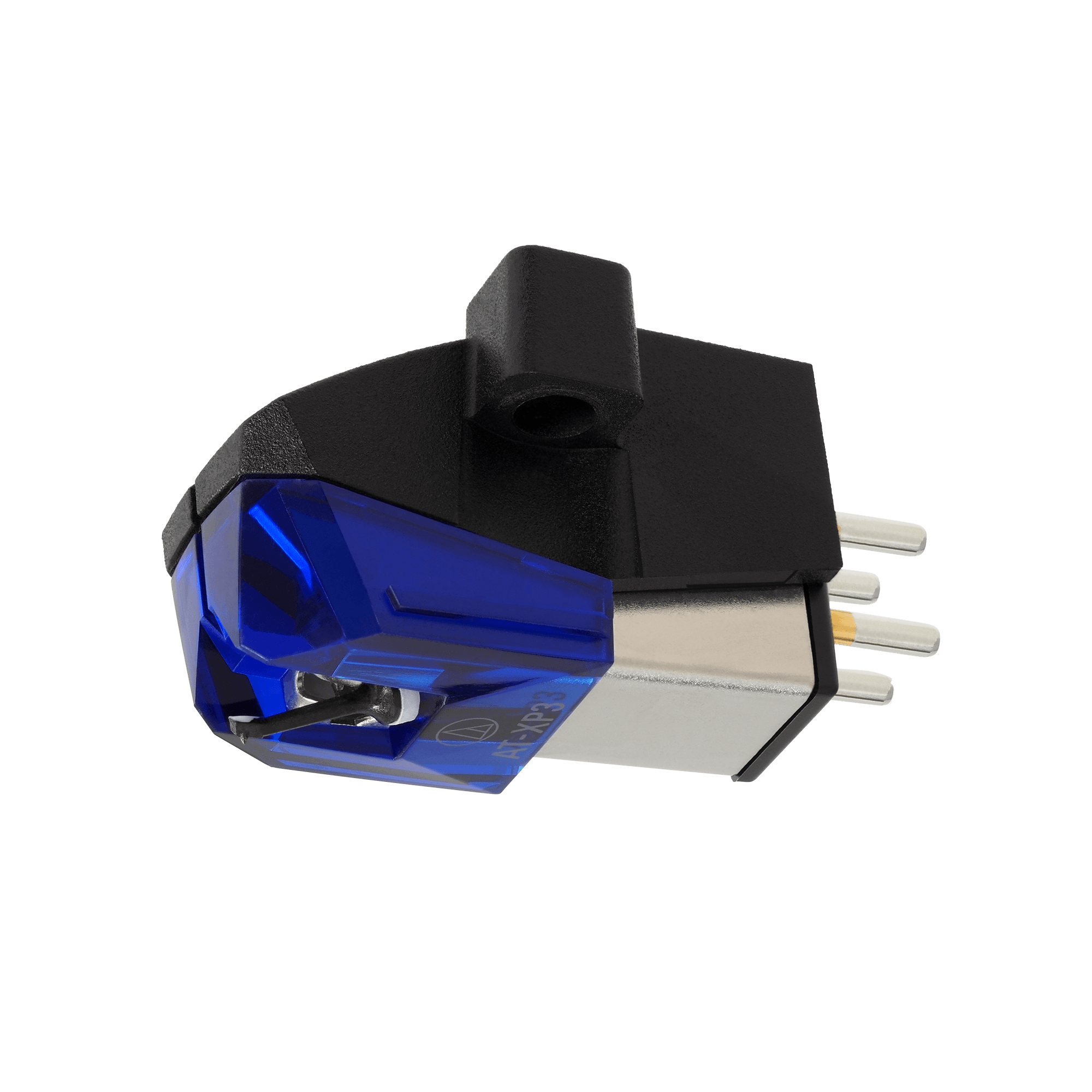

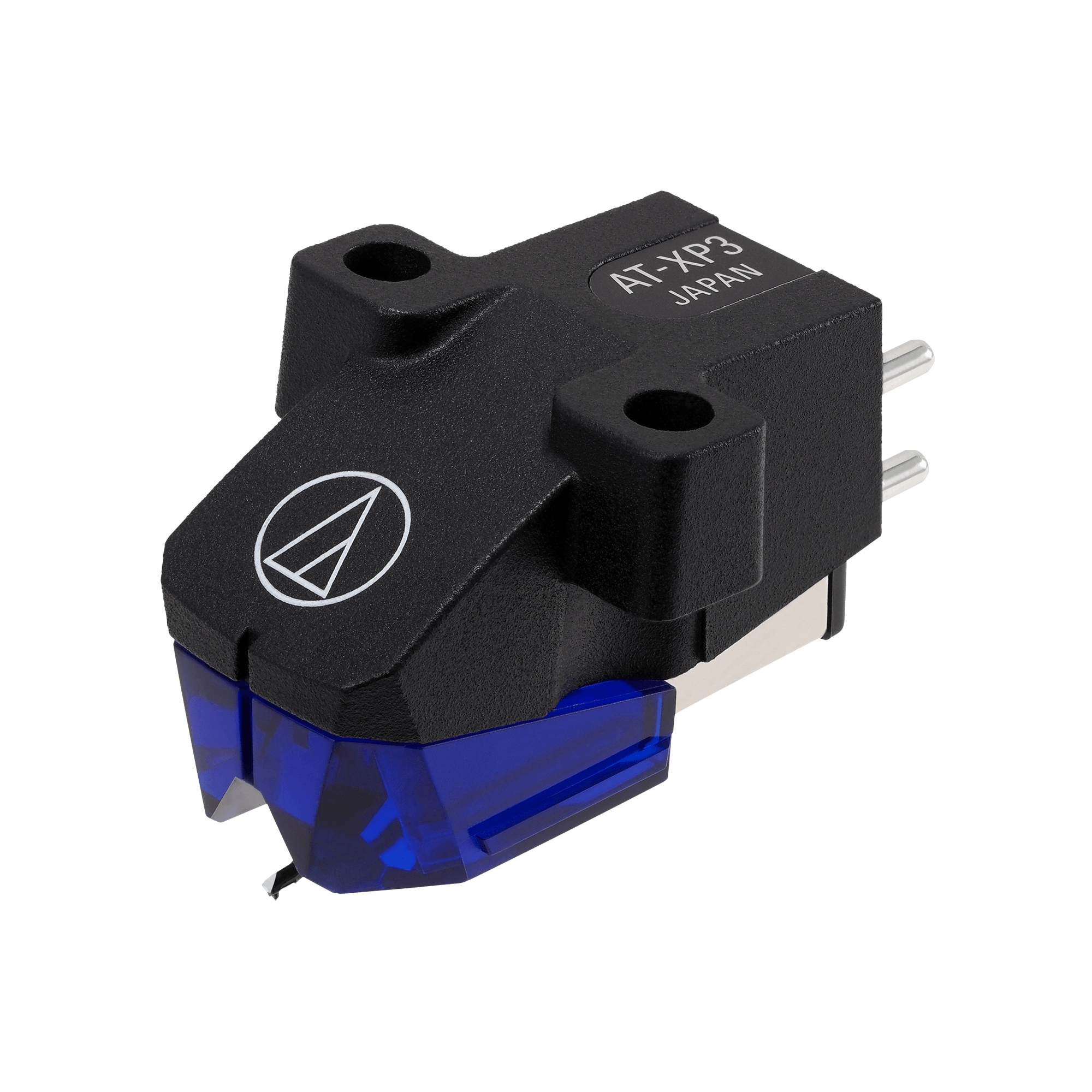

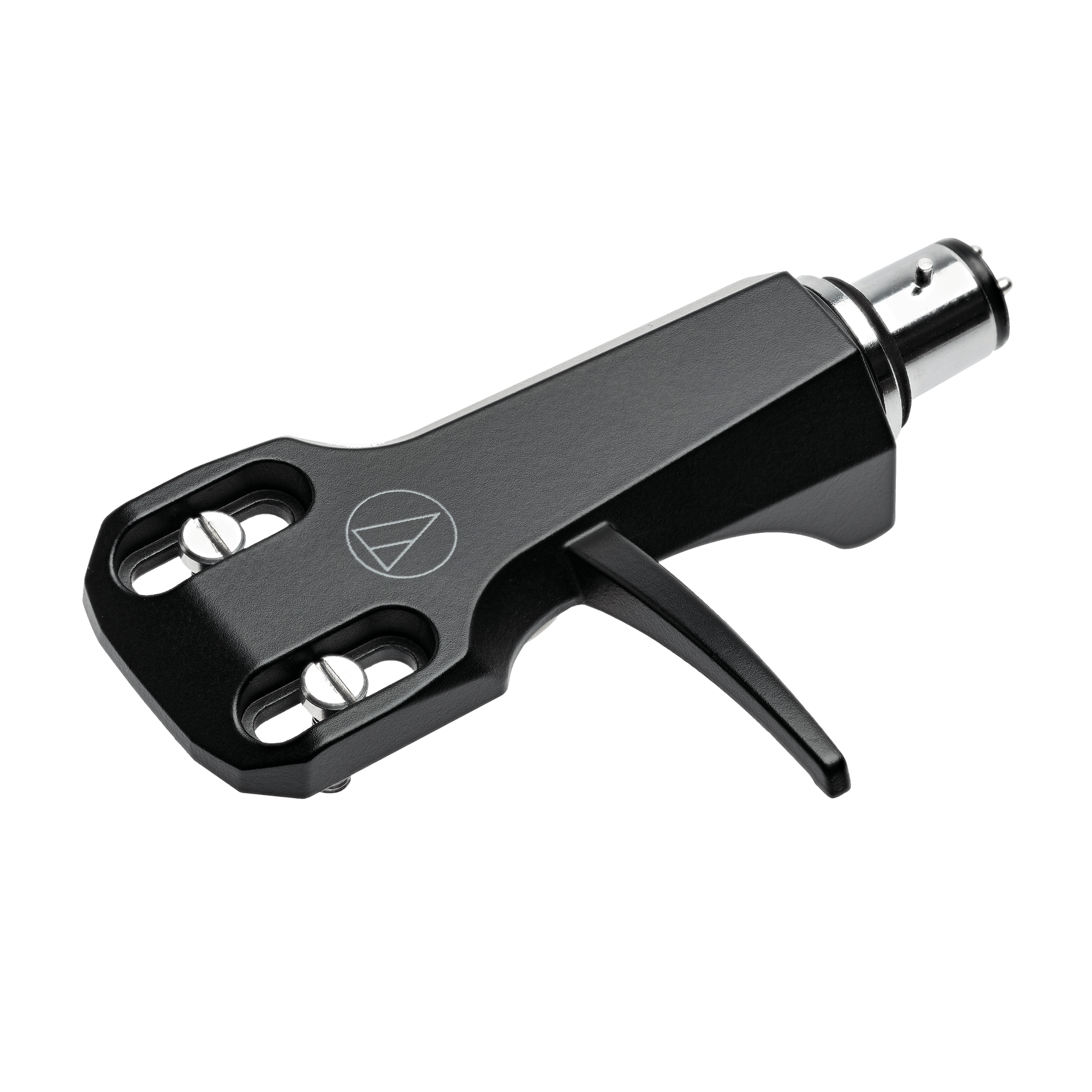

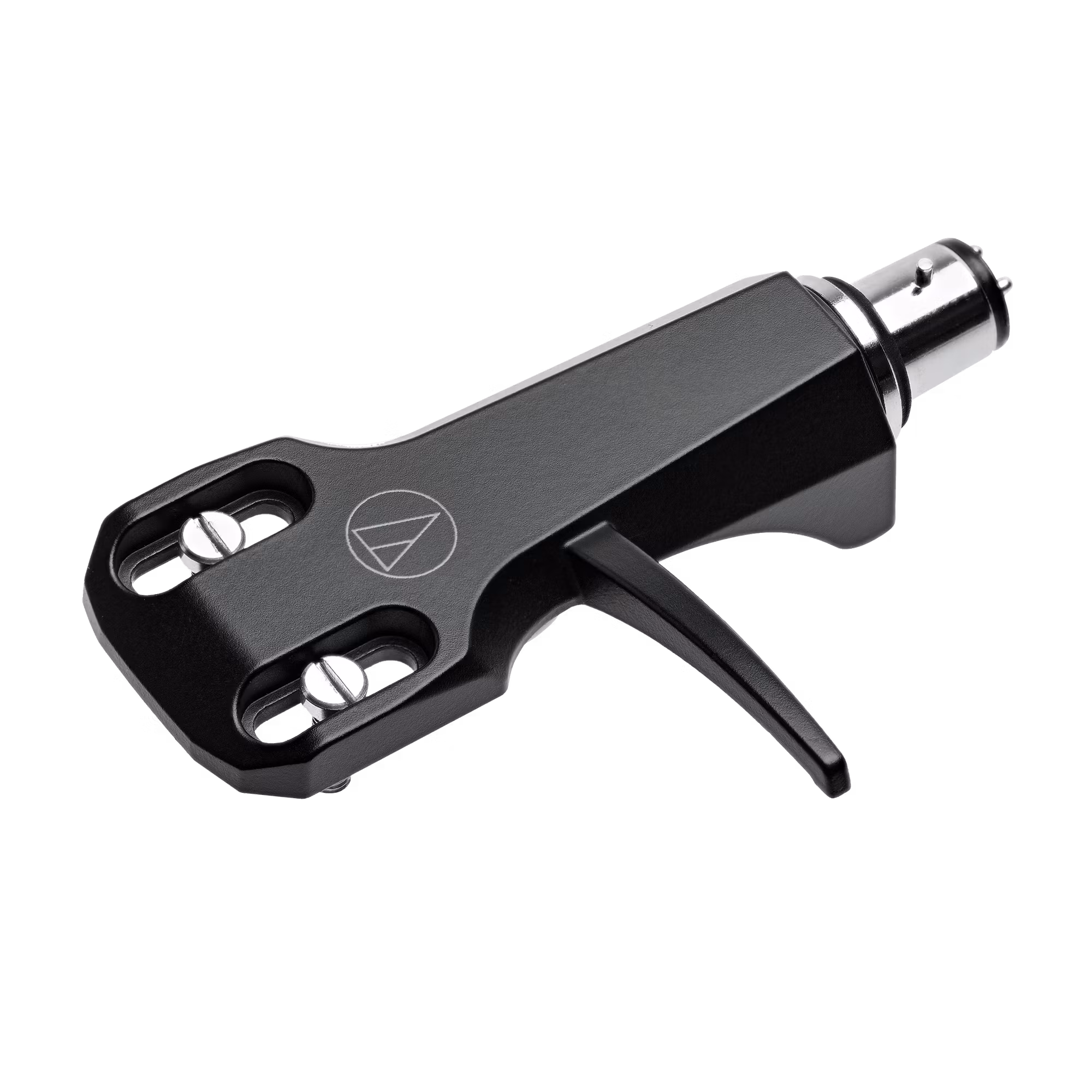

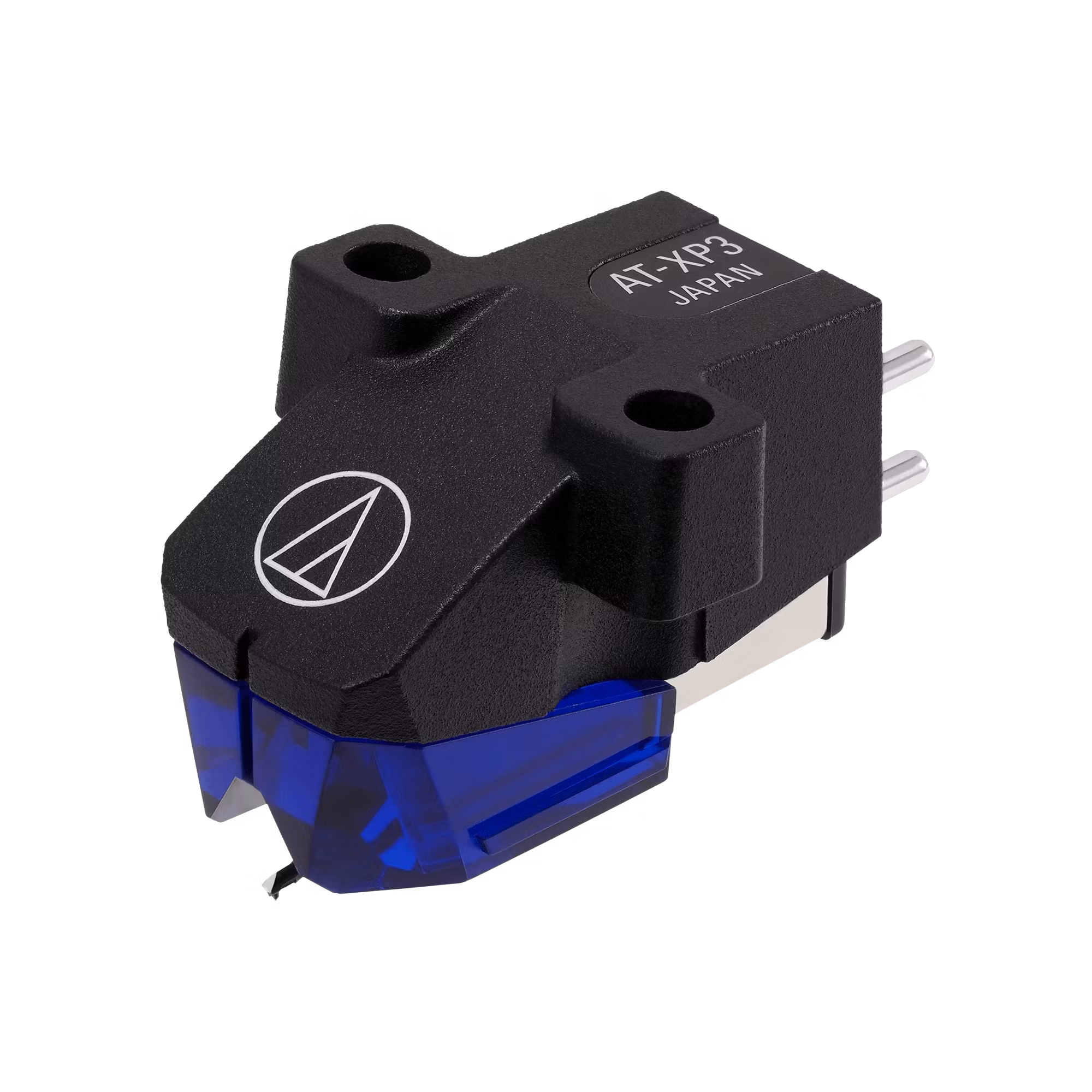

AT-XP3/H The AT-XP3/H combo kit includes the AT-XP3 DJ cartridge premounted on the AT-HS6BK headshell

Cartridge & Stylus
Frequency Response20 to 18,000 Hz
Channel Separation20 dB (1 kHz)
Vertical Tracking Angle20 degrees
Vertical Tracking Force2.0 to 4.0 g (standard 3g)
Stylus ConstructionBonded Round Shank
Recommended Load Impedance47,000 Ω
Coil Impedance6,700 ohms (1 kHz)
Coil Inductance550 mH (1 kHz)
Output Voltage5.5 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance2.0 dB (1 kHz)

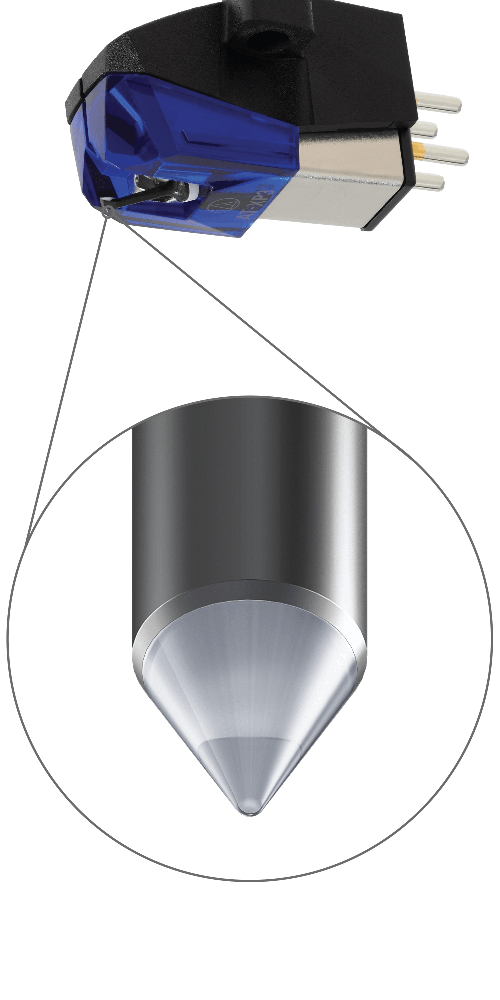

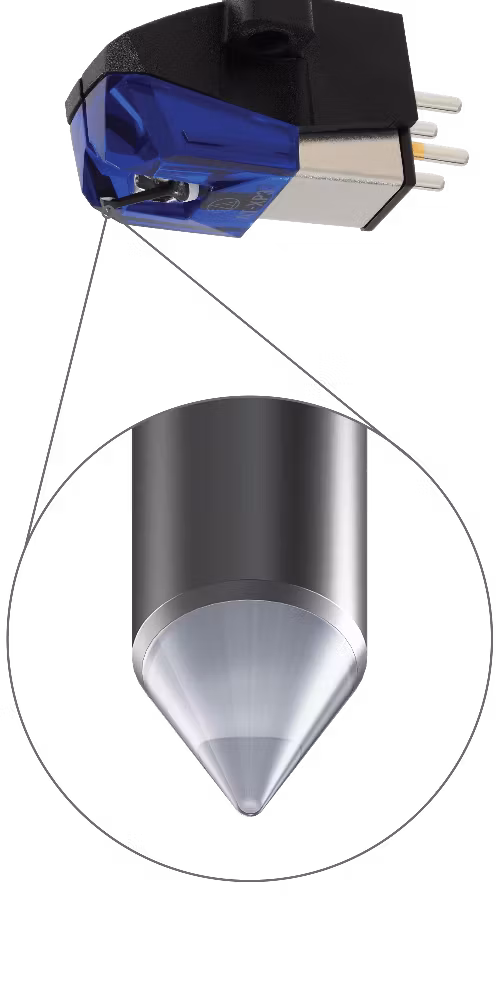

Stylus ShapeConical
CantileverCarbon reinforced ABS
Static Compliance20 x 10 – 6 cm / dyne
Dynamic Compliance6.0 x 10 – 6 cm / dyne (100 Hz)
MountingHalf-inch
Cartridge Weight15.6g
Dimensions21.2 × 21.4 × 62.4 ( H x W x D mm)
ModelAT-XP3/H
Recommended Load Capacitance100-200 pF
Replacement StylusATN-XP3
Stylus Size0.6 mil
