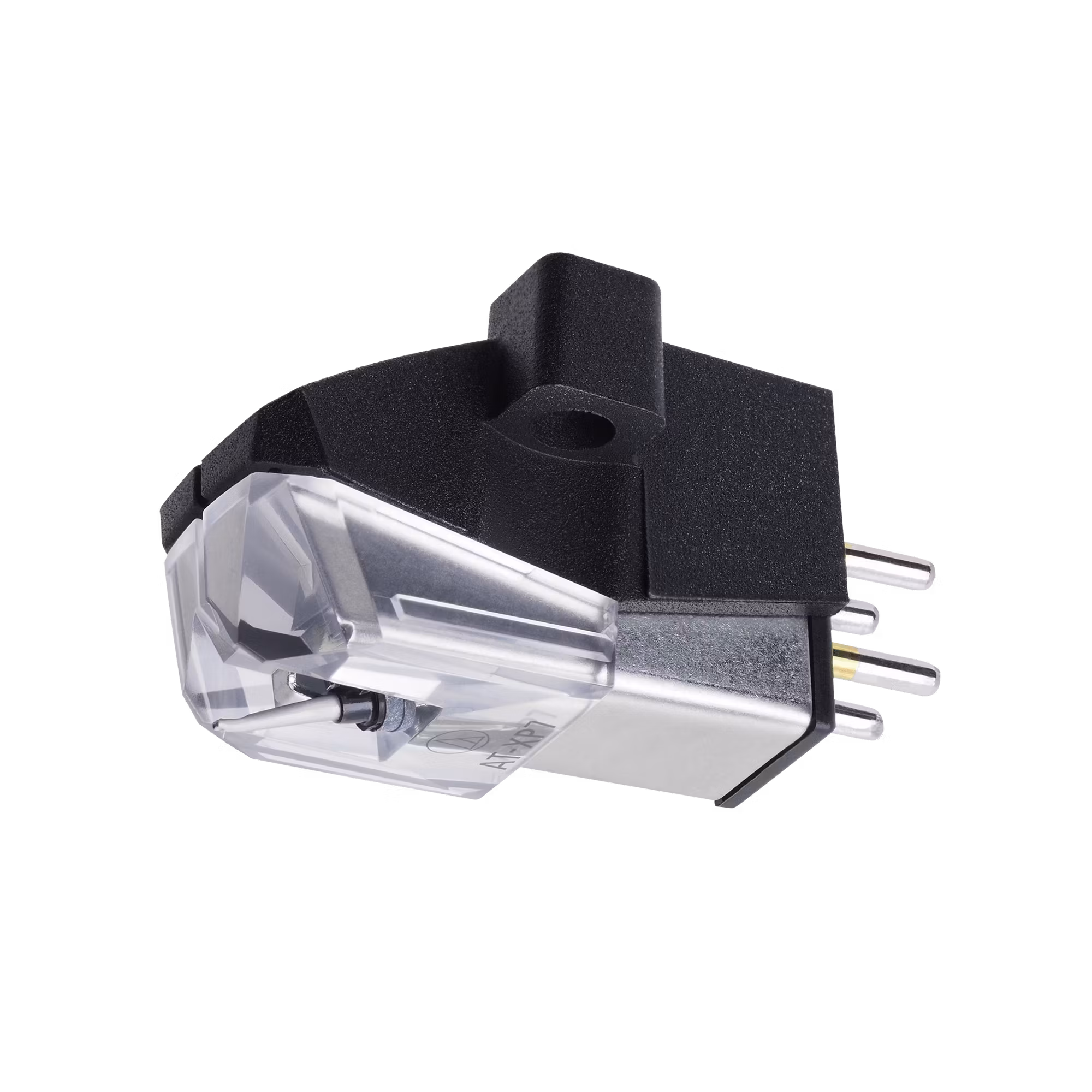

Audio Technica AT-XP7 Dual Moving Magnet Stereo Cartridge

  • 1 690 kr

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force

I lager.

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Cartridge & Stylus
Frequency Response20 - 20,000 Hz
Channel Separation22 dB at 1kHz
Vertical Tracking Angle20°
Vertical Tracking Force2.0 to 4.0 g (standard 3g)
Stylus ConstructionBonded Round Shank
Recommended Load Impedance47,000 ohms
Coil Inductance1.0 H (1 kHz)
Output Voltage6.0 mV (mV at 1 kHz, 5 cm/sec)
Output Channel BalanceOutput Channel Balance
Stylus ShapeElliptical
CantileverAluminium tapered Pipe
Static Compliance20 x 10-6 cm/dyne
Dynamic Compliance8.0x10-6cm/dyne (100Hz)
MountingHalf-inch
DimensionsH17.2×W17.8×D28.3mm
Accessories IncludedCartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
Recommended Load Capacitance100-200 pF
Replacement StylusATN-XP7
Stylus Size0.3 x 0.7 mil
TypeVM Dual Magnet
Weight6.2g
