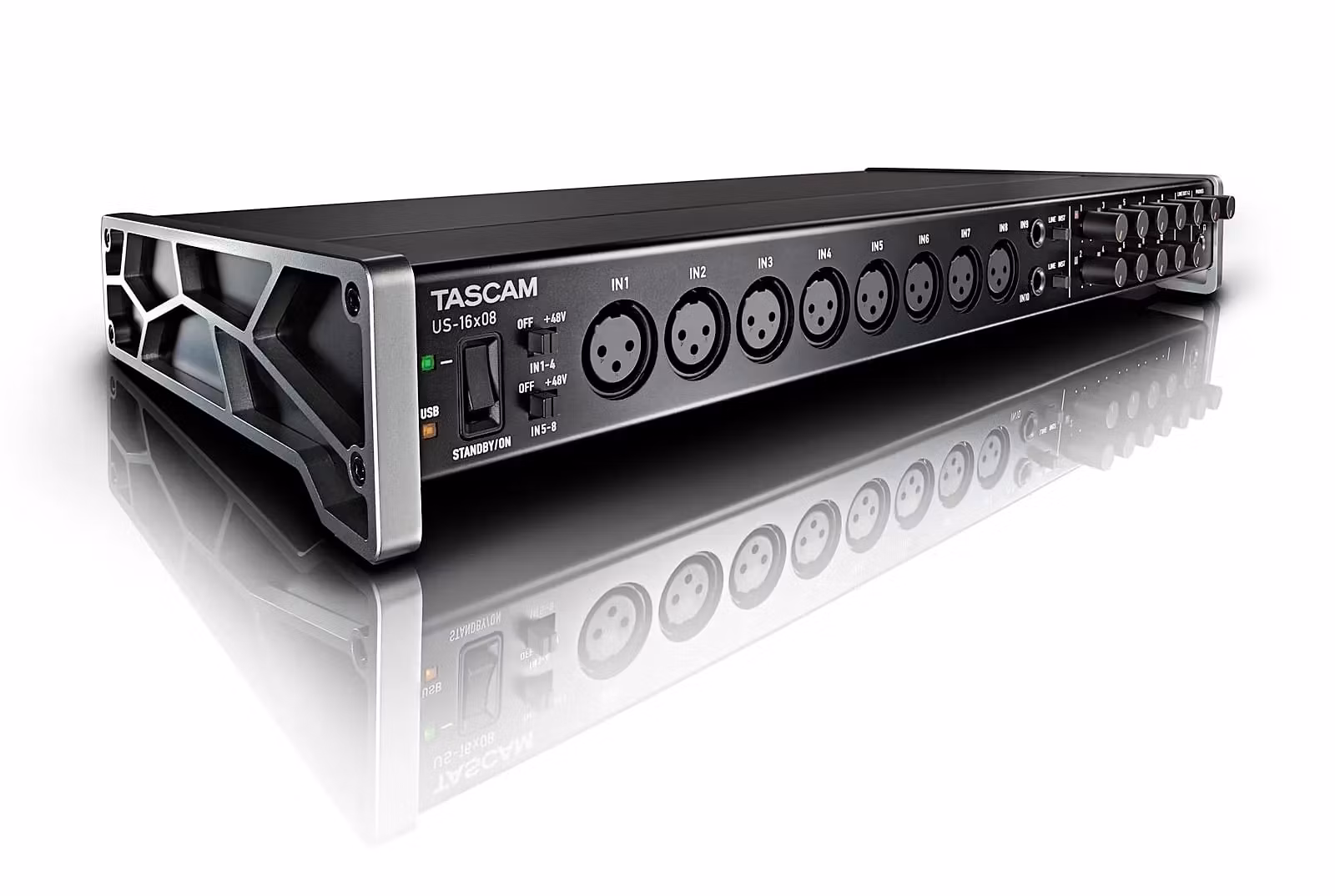

Tascam USB Audio-MIDI Interface - 16 in 8 out

Tascam USB Audio-MIDI Interface - 16 in 8 out

4 999 kr

The US-16x08 offers 16 mic and line inputs for your computer with clear sound quality and advanced features to manage big sessions. Eight Ultr

Produktbeskrivning
Recensioner

The US-16x08 offers 16 mic and line inputs for your computer with clear sound quality and advanced features to manage big sessions. Eight Ultra-HDDA microphone preamps provide clean and quiet operation while delivering up to 56 dB of gain. An additional eight balanced line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.

Built into the US-16x08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes. In addition to interface mode, the US-16x08 can be used as a standalone mic preamp. Windows and Mac drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like the Apple iPad. MIDI input and output are also available on the rear panel.

Whether using the ergonomically-designed angled desktop stand or mounting with the included rack ears, the US-16x08 includes enough I/O for almost any music recording application.

Features at a glance

High-quality Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: ?125 dBu)
Recording at up to 96kHz/24-bit
Support for Mac and Windows operating systems
16-in/8-out audio streaming from a PC connected via USB 2.0
Selectable operation mode between audio interface and standalone mic preamp
On-board DSP mixer for monitoring
Low-latency monitoring via the DSP Mixer
Compressor and 4-band EQ for each input channel on the DSP mixer
Eight XLR inputs with phantom power
Two TRS (balanced) inputs selectable between line and instrument level

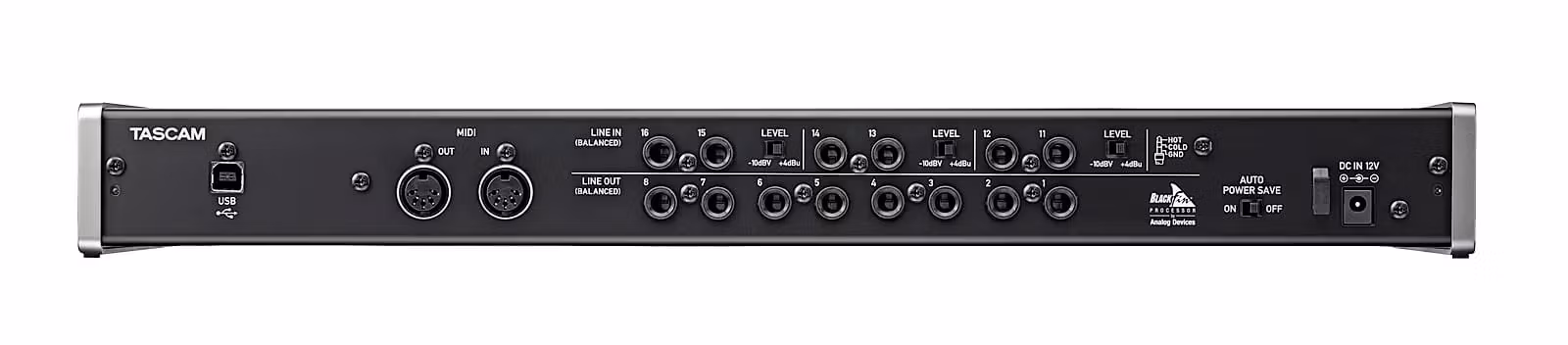

Six TRS (balanced) inputs on rear panel
Eight TRS (balanced) analogue outputs
Standard headphones output
MIDI input/output
USB Audio Compliance 2.0 for iOS connection
DAW compatibility (ProTools, Cubase, Live, Studio One, Garage Band)
Rack-mount adapter included
Dedicated AC adapter included
Angled industrial design for desktop ease-of-use

Digital conversion
Sampling frequencies	44.1/48/88.2/96 kHz
Quantization bit depth	16-bit or 24-bit

Analogue audio inputs
Mic inputs 1-8 (balanced)	XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Input impedance	2.4 k?
Rated input level	?68 dBu (0.0003 Vrms, gain knob max.)
Rated input level	?12 dBu (0.195 Vrms, gain knob min.)
Maximum input level	+8 dBu (1.947 Vrms)
Maximum gain	56 dB
Instrument inputs 9?10 (unbalanced, LINE/INST switch set to INST)	6.3mm standard TS jacks (Tip: Hot, Sleeve: GND)
Input impedance	1 M? or more
Rated input level	?57 dBV (0.0014 Vrms, gain knob max.)
Rated input level	?12 dBV (0.251 Vrms, gain knob min.)
Maximum input level	+8 dBV (2.512 Vrms)
Maximum gain	45 dB
Line inputs 9?10 (unbalanced, LINE/INST switch set to LINE)	Standard TRS jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance	10 k?
Rated input level	?41 dBu (0.0069 Vrms, gain knob max.)
Rated input level	+4 dBu (1.228 Vrms, gain knob min.)
Maximum input level	+24 dBu (12.282 Vrms)
Maximum gain	45 dB
Line inputs 11?16 (unbalanced, LEVEL switch set to ?10 dBV)	6.3mm standard TS jacks (Tip: Hot, Sleeve: GND)
Input impedance	10 k?
Rated input level	?10 dBV (0.3162 Vrms)
Maximum input level	+10 dBV (3.162 Vrms)
Line inputs 11?16 (balanced, LEVEL switch set to +4 dBu)	Standard TRS jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance	10 k?
Rated input level	+4 dBu (1.228 Vrms)
Maximum input level	+24 dBu (12.282 Vrms)

Analogue audio outputs
Line outputs 1?8 (balanced)	Standard TRS jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Output impedance	100 ?
Rated output level	+4 dBu (1.228 Vrms)
Maximum output level	+24 dBu (12.277 Vrms)
Headphones output	6.3-mm standard stereo jack
Maximum output power	70 mW + 70 mW (THD+N ?1 %, 32 ?)
Output impedance	51.5 ?
Load impedance	16?600 ?
Frequency response (input to headphones output)	At 44.1 kHz and 48 kHz: 20 Hz ? 20 kHz, ±1.0 dB (JEITA) At 88.2 kHz and 96 kHz: 20 Hz ? 40 kHz, ±2.0 dB (JEITA)

Other inputs/outputs
MIDI input	5-pin DIN connector
Format	Standard MIDI format
MIDI output	5-pin DIN connector
Format	Standard MIDI format
USB	4-pin USB B-type
Transfer rate	USB 2.0 High Speed (480 MBit/s)

Audio performance
Mic preamp EIN (equivalent input noise)	?125 dBu or more
Frequency response (input to line output)
At 44.1 kHz and 48 kHz	20 Hz ? 20 kHz, ±0.5 dB (JEITA)
At 88.2 kHz and 96 kHz	20 Hz ? 40 kHz, ±0.5 dB (JEITA)
S/N ratio	100 dB or higher (line input to line output, gain knob at minimum, JEITA)
Distortion	0.006% or less (mic/line input to line output, 1 kHz sine wave, nominal input level, maximum output level)
Crosstalk	100 dB or higher (mic/line input to line output, 1 kHz)

Computer system requirements
Windows
Computer hardware requirements	Windows computer with a USB 2.0 or USB 3.0 port 2 GHz or faster dual core processor (x86) 2 GB or more memory Display resolution at least 1280 x 800 px
Supported audio drivers	ASIO 2.0, WDM (MME)
Important: Operation of this unit was confirmed using standard computers that meet the above requirements. This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions.
Mac
Computer hardware requirements	Apple Mac computer with a USB 2.0 or USB 3.0 port 2 GHz or faster dual core processor 2 GB or more memory Display resolution at least 1280 x 800 px
Supported audio drivers	Core Audio, Core MIDI

Power supply and other specifications
Power supply	Specialized AC adapter (GPE248-120200-Z)
Power consumption	12 W
External dimensions	445 mm × 59 mm × 219 mm
Weight	2.8 kg
Operating temperature range	5?35 °C
