Tascam 102i USB Audio-MIDI Interface With DSP Mixer-10 in 4 out

The compact SERIES 102i audio/MIDI interface is perfect for guitarists, songwriters and owners of small studios. It provides up to ten audio inputs and two audio outputs to a Mac or Windows computer or an iOS device, for recording and playback at up to 192 kHz / 24 bit and with the superb audio performance one expects from Tascam. Controllable with included custom software, this versatile USB interface is equipped with a powerful DSP input and output mixer with built-in digital reverb, compressor, phase invert and four-band EQ for each channel. Having this processor included internally eliminates all latency issues and takes the load off the computer allowing it to process the audio more efficiently. A new USB driver offers very high stability, ensuring reliable performance throughout all phases of your projects.

transparent, natural-sounding, low-noise Ultra-HDDA mic preamps and individually switchable phantom power (+48 volt). A maximum of ten inputs (four at 192 kHz) are available when using the multi-channel optical port which can accept up to eight channels of audio input from an ADAT- or S/MUX-compatible device. The SERIES 102i also offers dual headphone outputs with dedicated level control and two balanced 6.3-mm line outputs for versatile monitoring. And you can connect your favorite MIDI devices to the rear-panel MIDI input and output to use them with your recording software.

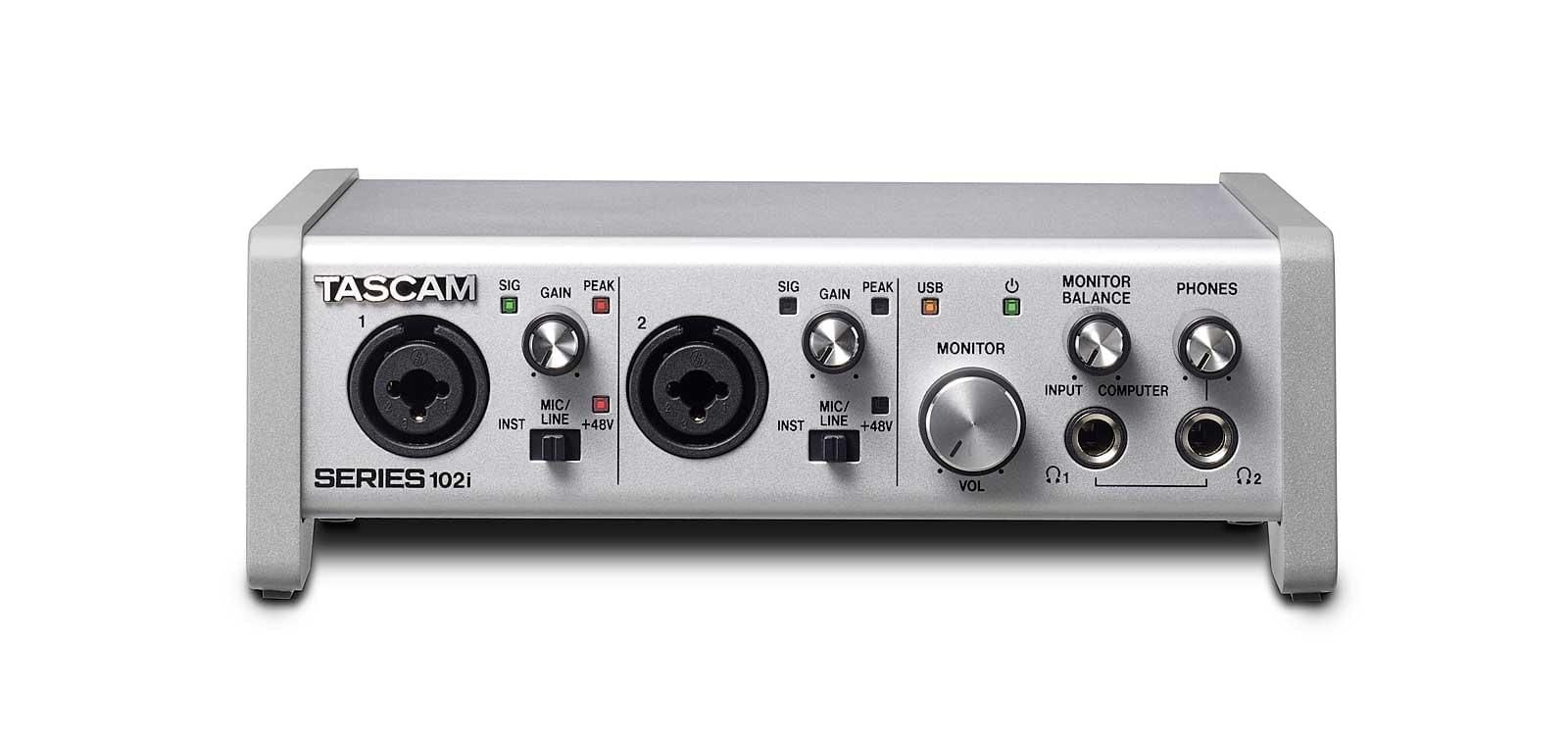

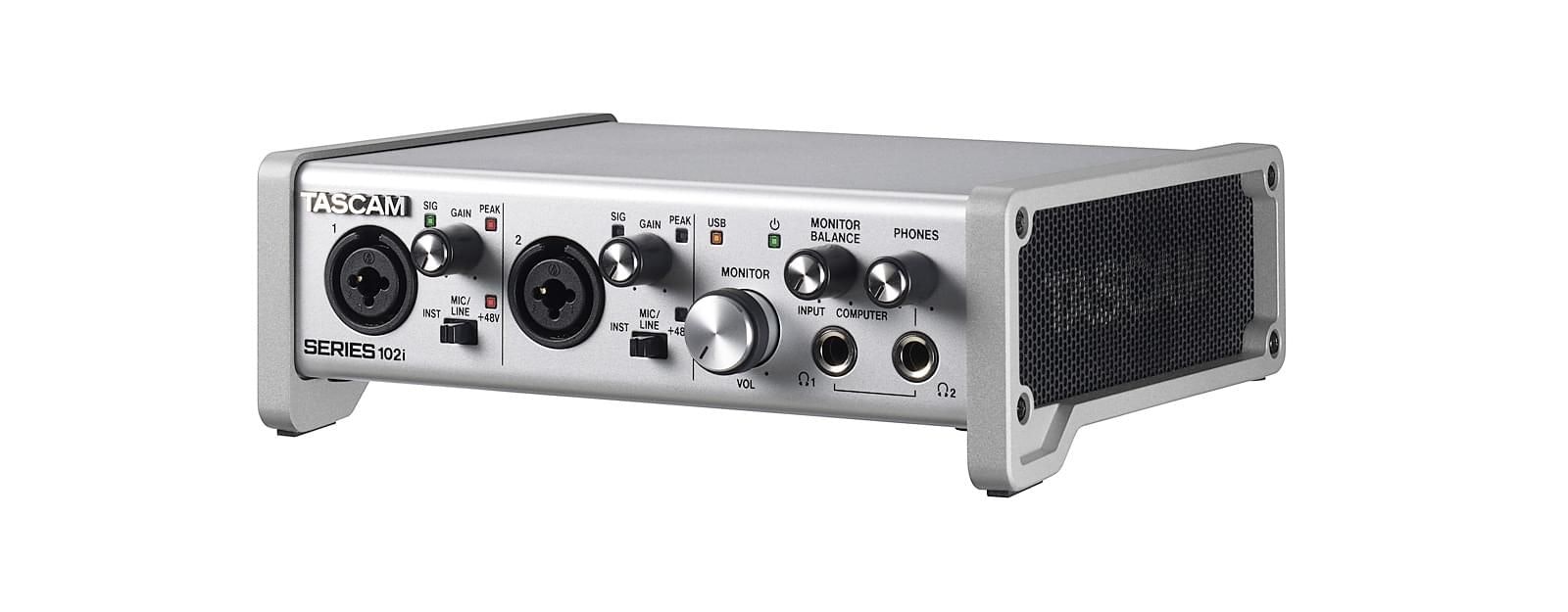

The angled tabletop design gives easy access to all front-panel controls. You can quickly adjust the monitor output level with a large front-panel Monitor knob, and use the handy Monitor Balance control to mix live input with computer playback for zero-latency overdubs.

• Provides up to ten audio inputs and two audio outputs to a Windows or Mac computer or iOS device
• Audio resolution up to 192 kHz / 24 bit
• USB Audio Compliance 2.0 for iOS connection

Hardware features

• Two analogue mic/line inputs on XLR/TRS balanced combo connectors
• High-grade Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: ?127 dBu)
• High-quality audio input circuits for low-noise recording
• Individually switchable 48-Volt phantom power on XLR inputs
• Each TRS input can be switched to instrument-level for direct recording of guitar or bass
• Gain controls, signal and peak indicators on each analogue input
• Optical multi-channel audio input for expansion by a maximum of eight additional
• inputsideally suited for use with the Tascam SERIES 8p Dyna microphone preamplifier
• S/MUX format with support for high sampling rates (ADAT-compatible)
  - 8 inputs at 44.1/48 kHz
  - 4 inputs at 88.2/96 kHz
  - 2 inputs at 176.4/192 kHz
• Two monitor/line outputs (balanced TRS) with level control
• Direct monitor option for low-latency monitoring
• Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer
• Two 6.3-mm standard headphones outputs with level control (18 mW per channel)

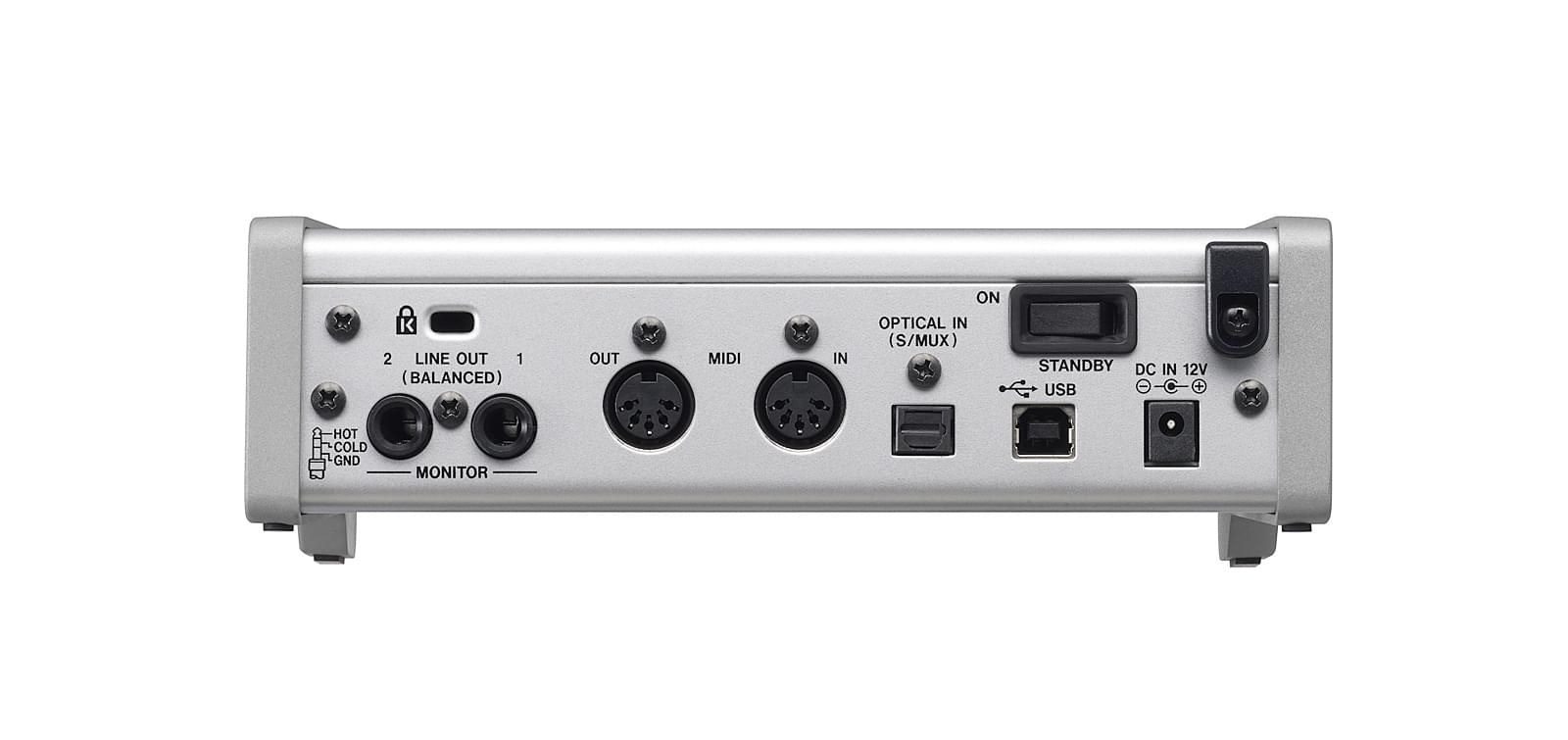

  MIDI input, MIDI output
• Power supply by dedicated PS-P1220E AC adapter (included)
• Rugged all-metal chassis

Software features

• In-house developed driver for Windows devices ensures stable operation with low latency
• Built-in DSP with mixer, routing and effects accessible through dedicated settings panel
  - Compressor and 4-band EQ with low-cut filter on each input channel
  - Phase invert, Bypass, Solo, channel Link and Mute buttons on each input channel
  - Four Aux sends, switchable pre/post (Aux 1 used for internal reverb)
  - Reverb effect with five presets and adjustable pre delay, reverb time, diffusion and return level (Reverb can be used up to 96 kHz only)
  - Master section with Stereo fader, Aux Master controls and Mute button
  - Comfortable routing of output channels
• Bundled with Cubase LE (64-bit Windows application), compatible with Cubasis LE
• Bundled with iZotope Neutron 3 Elements, AmpliTube and T-Racks plug-in effects
• Automatic update function available for software, driver and firmware updates
• Compatible with major DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand etc.)
