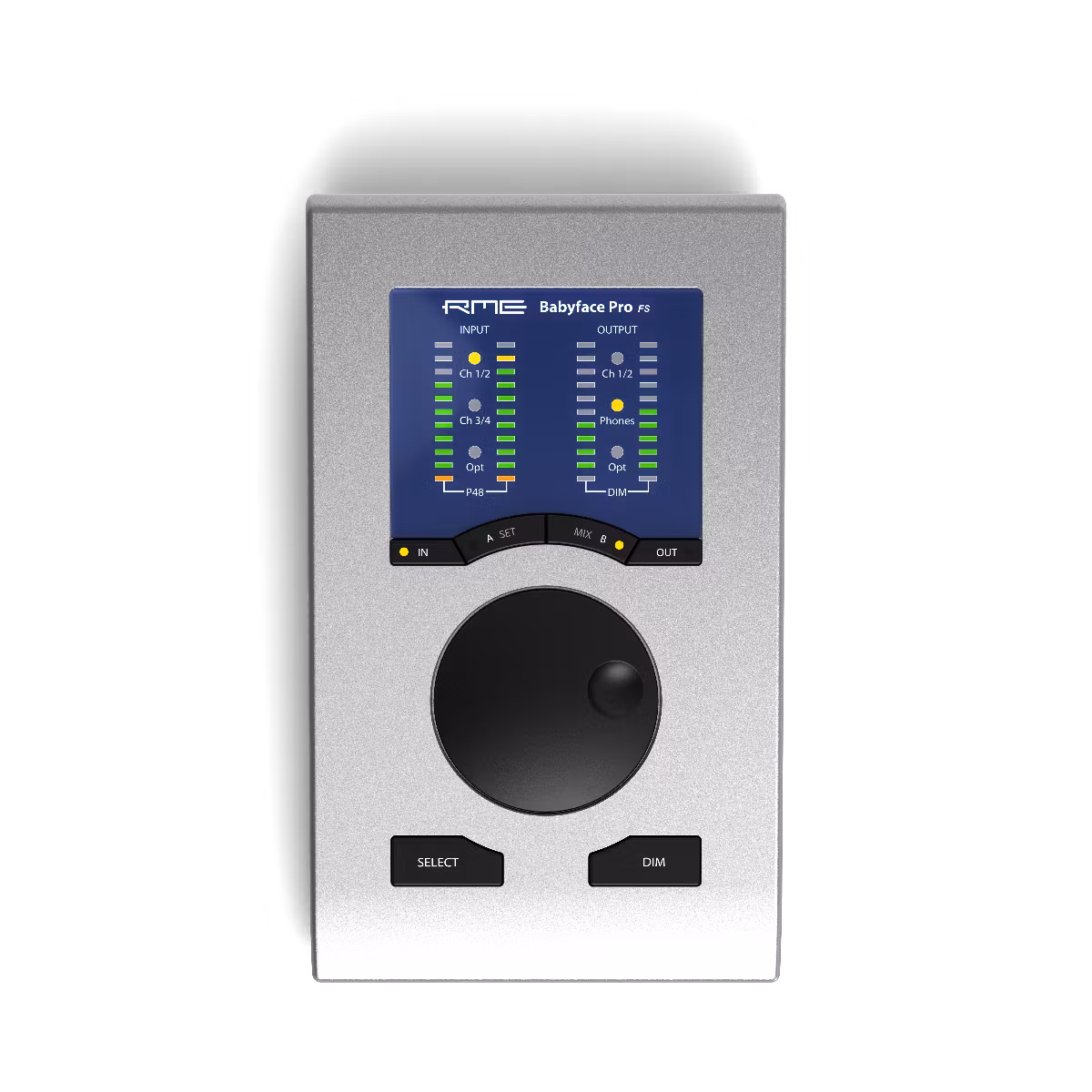

RME Babyface Pro FS

RME Babyface Pro FS behöver ingen genomgående introduktion. Portabelt, lätt och fullmatat med RME klassiska komponenter är det absolut det mest optimala valet för den som vill åt RMEs kvalitet men som varken vill betala eller släpa på fler in/utgångar än vad man behöver. Strömförsörjning via USB gör det möjligt att med en laptop spela in var du än befinner dig. 2 separata hörlursutgångar matchar både lätt- och trögdrivna hörlurar med minsta tänkbara noise eller THD. Steadyclock motverkar minsta tänkbara jitter. Babyface är också kompatibelt med RME's Totalmix mjukvara som tillåter för specill routing effekter monitoring mm

In the new Babyface Pro FS even more improvements were implemented:

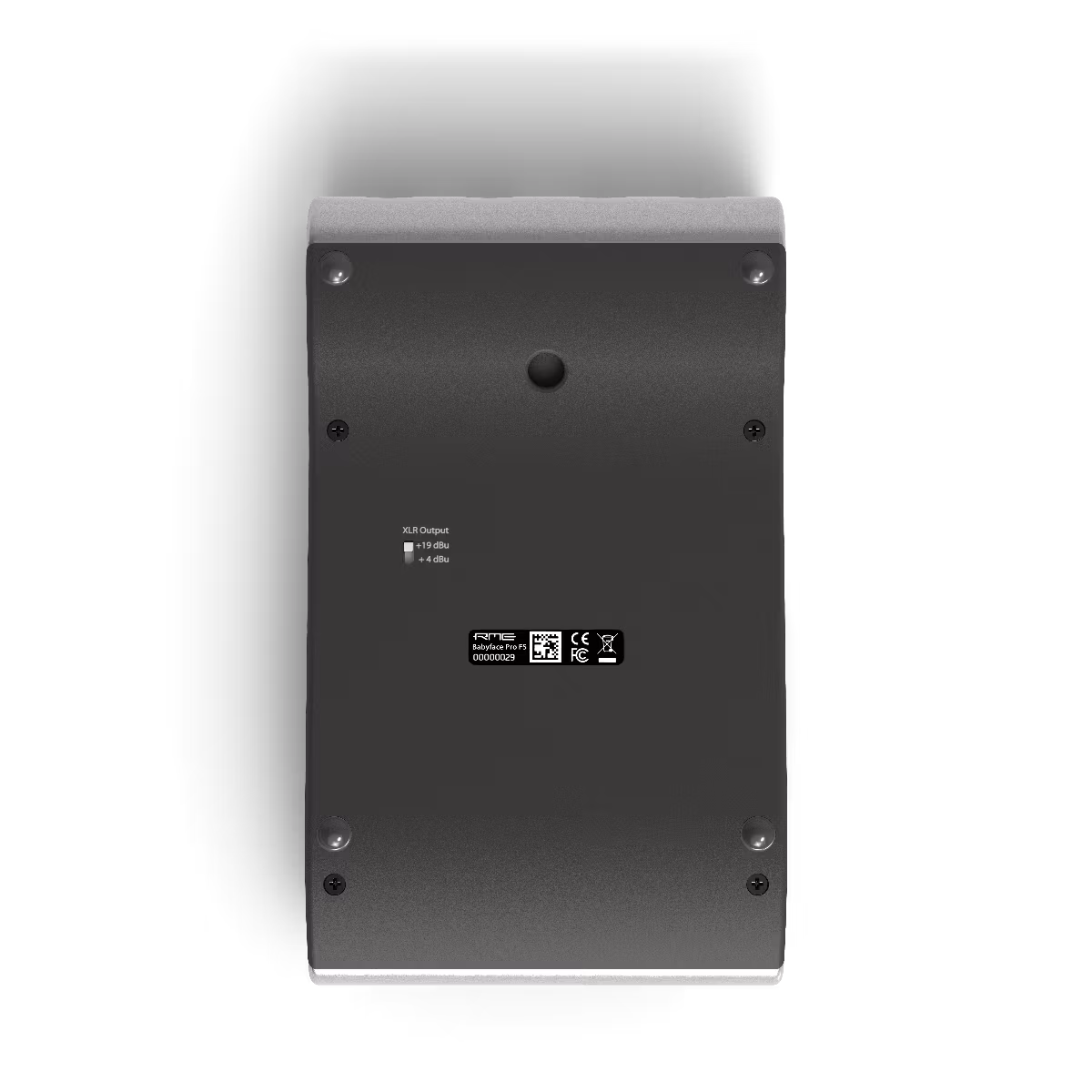

• +19 / +4 dBu switch on the bottom adds a direct way to reduce the  output level, thus improves SNR for sensitive active monitors, avoids  distortion / overload, and helps to keep TotalMix FX faders near 0 dB  instead of high attenuations.
• Full SteadyClock FS circuit as in the ADI-2 Pro FS for lowest jitter and highest jitter immunity.
• 3.5 mm TRS phones output power rises from 70 mW to 90 mW. THD of  both phones outputs improved by up to 10 dB. Uses same output op-amps as  ADI-2 Pro now. Output impedance of 3.5 mm TRS lowered from 2 Ohms to  0.1 Ohms.
• Mic inputs SNR improved from 112.2 dB to 113.7 dB, TRS Line inputs  SNR improved from 114 dB to 116.3 dB (120 dBA). THD Line inputs improved  by 8 dB.
• 6 samples less latency on the AD side by new ADC (5 samples AD, 7 samples DA. It won't get quicker...).
• All the above improvements were achieved without raising the units power consumption.
• K-slot for theft protection.

ADI-2 Series Headphone Power

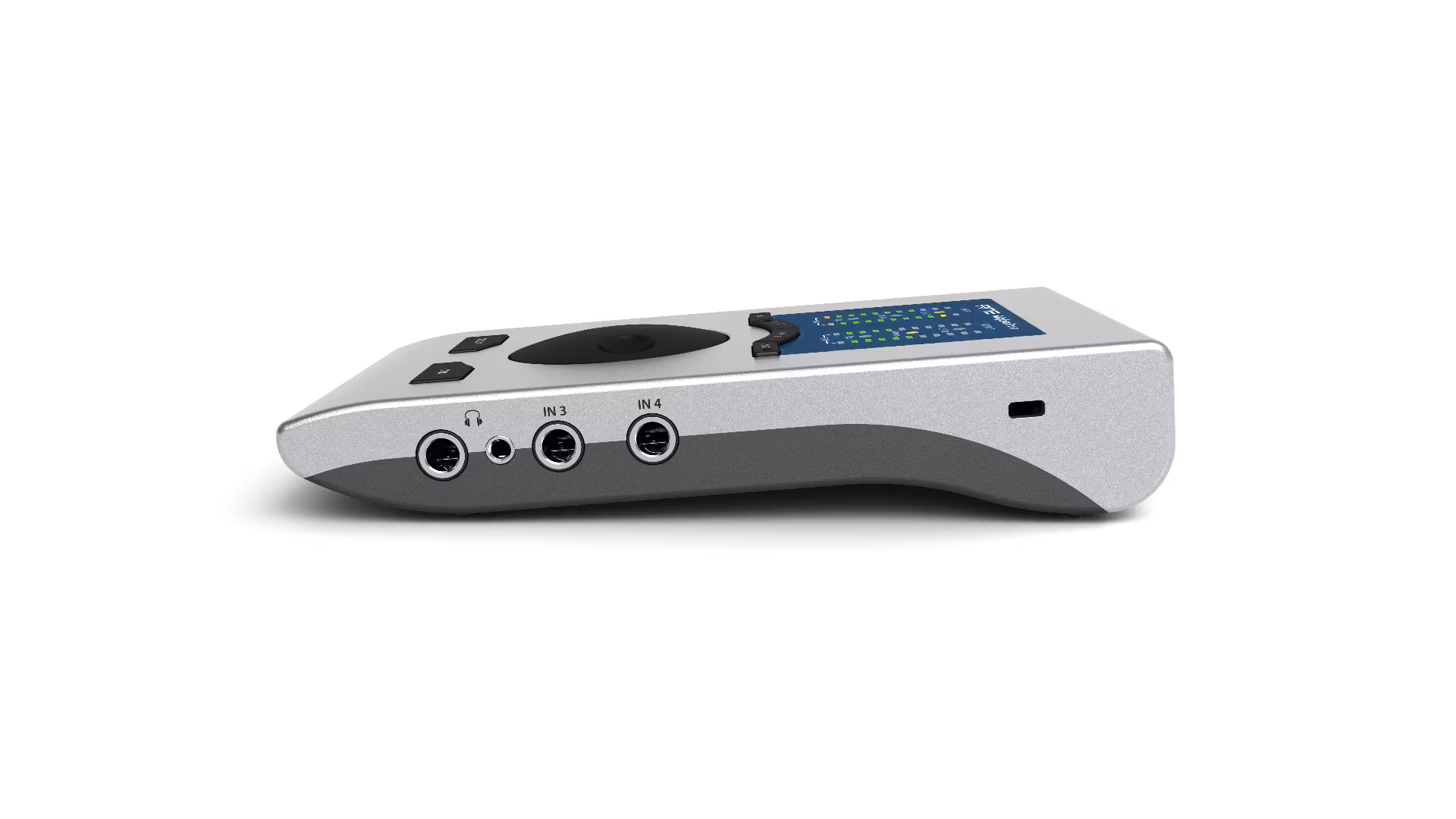

The two headphone outputs, offering TRS and mini-jack sockets in  parallel, have completely separate driver stages to perfectly match low  and high impedance headphones, guaranteeing pristine sonic results no  matter what type of headphone is used.

The 3.5 mm TRS phones output power rises to 90 mW. THD of both phones  outputs improved by up to 10 dB. and uses same output op-amps as ADI-2  Pro now. Finally the output impedance of 3.5 mm TRS was lowered from 2  Ohms to 0.1 Ohms.

Full range capture - Improved Mic & Line Inputs

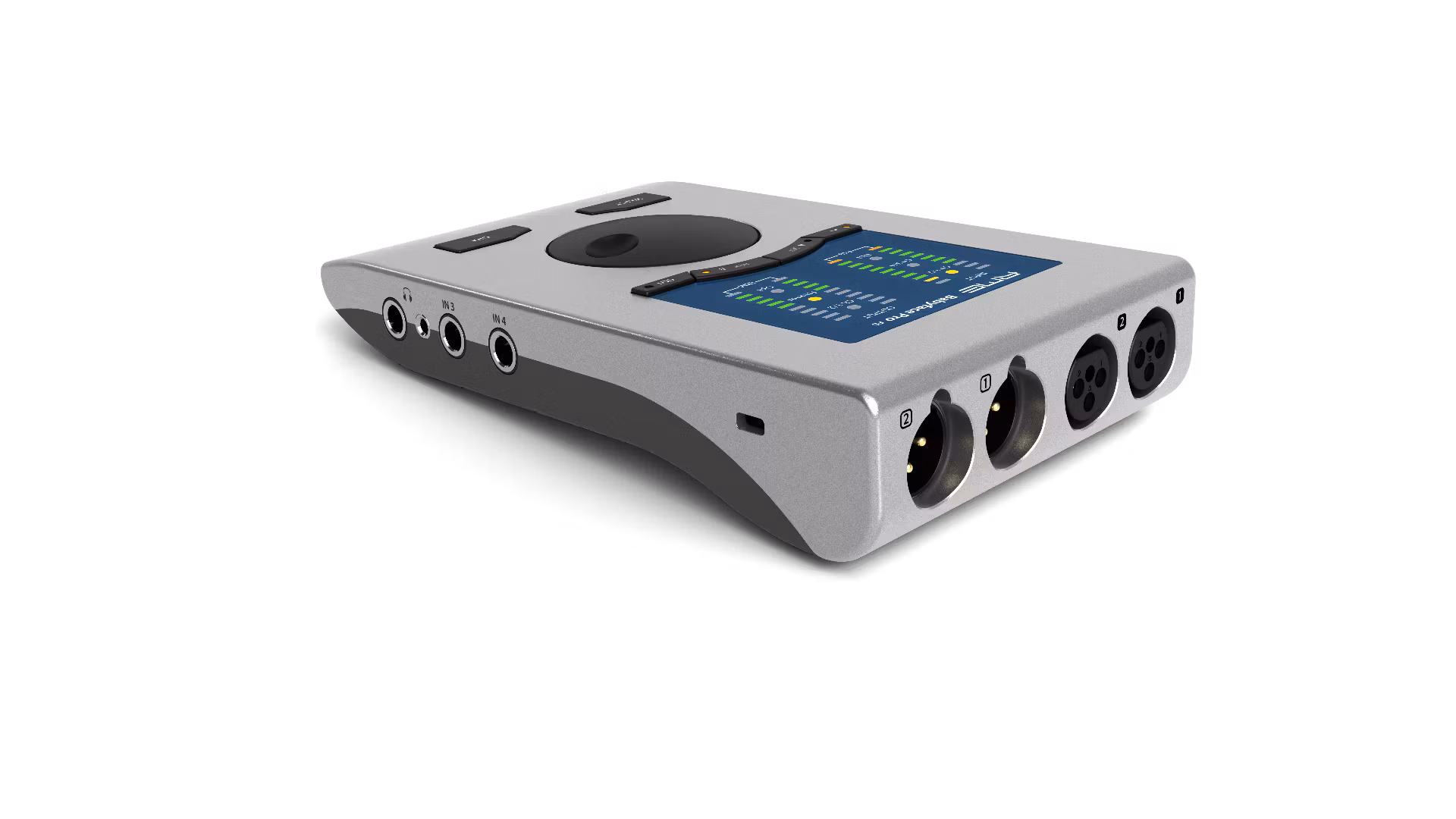

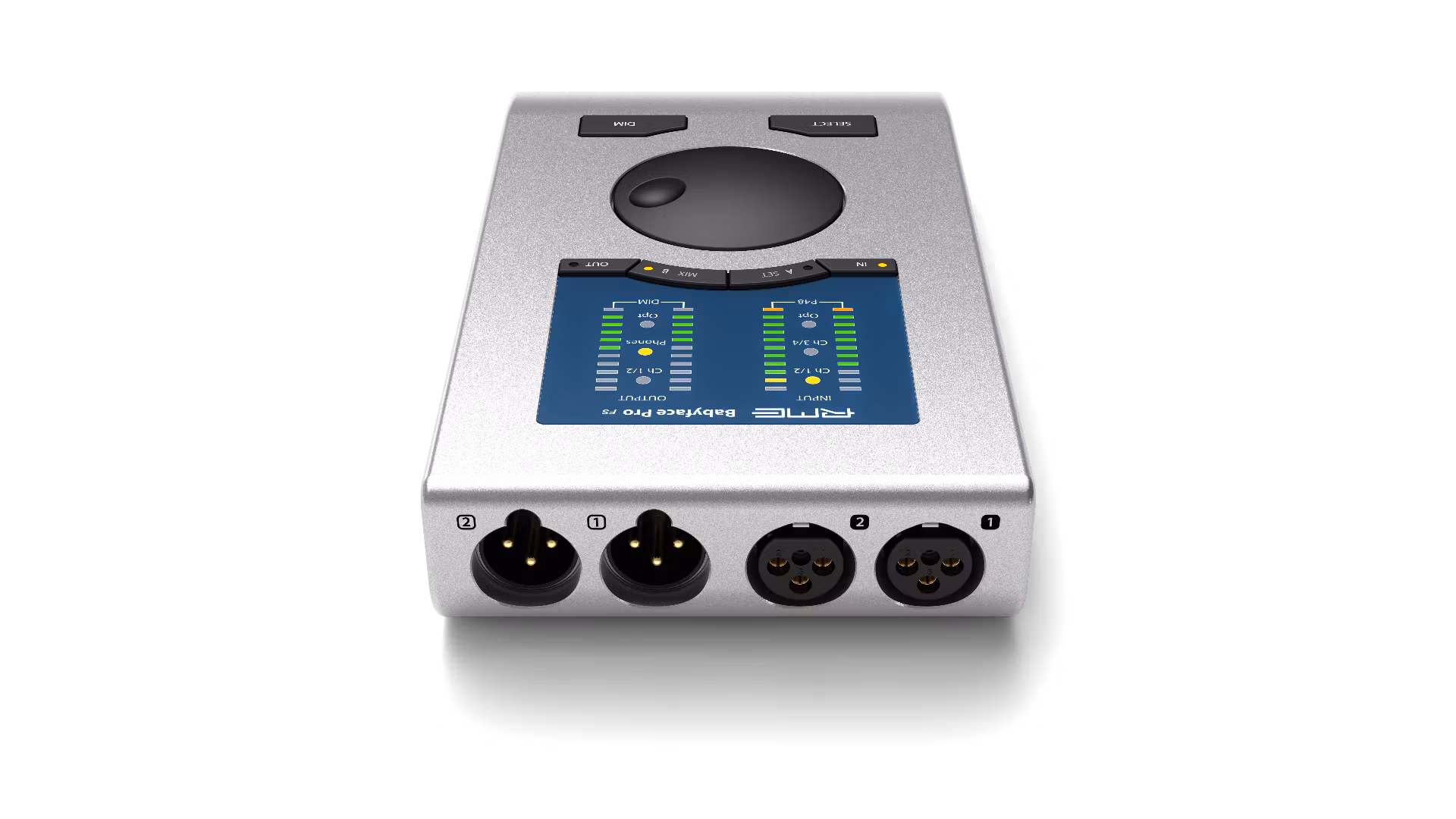

For the main I/O RME have designed a XLR socket, which integrates seamlessly into the housing and saves space.

Two digitally controlled preamps provide individually switchable 48V  phantom power. These circuits feature a gain range of 76 dB, adjustable  in steps of 1 dB, including a relay-driven PAD, resulting in exceptional  EIN (Equivalent Input Noise) performance as well as line overload  protection, and enough gain for even the lowest level microphones.

Babyface Pro’s incredibly efficient design almost never requires an  external power supply – it’s perfectly stable on USB 3 bus power, and  also most USB 2 ports, with no degradation in any technical  specification. This makes it perfect for mobile recording, even with a  pair of your favourite condenser microphones.

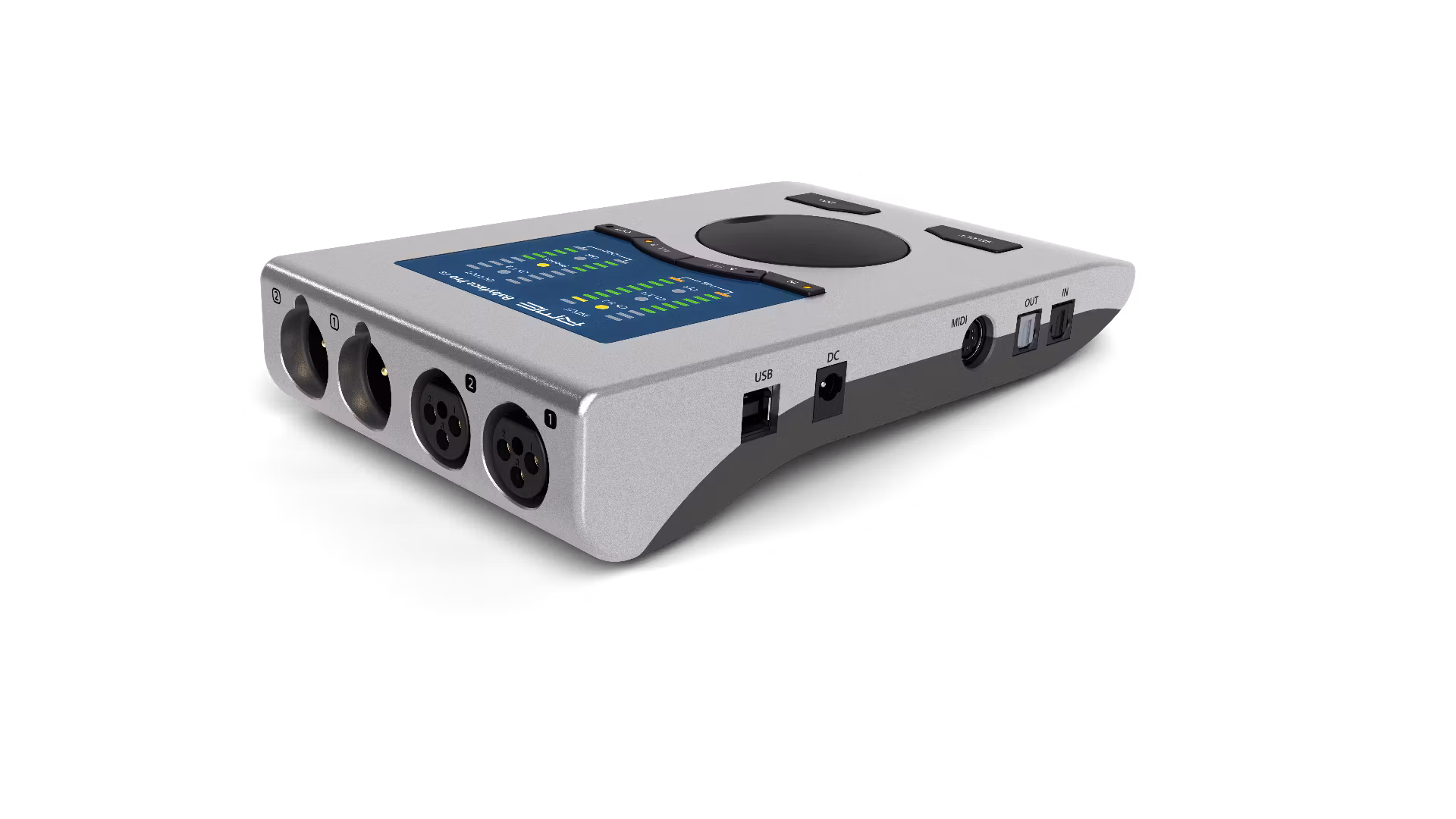

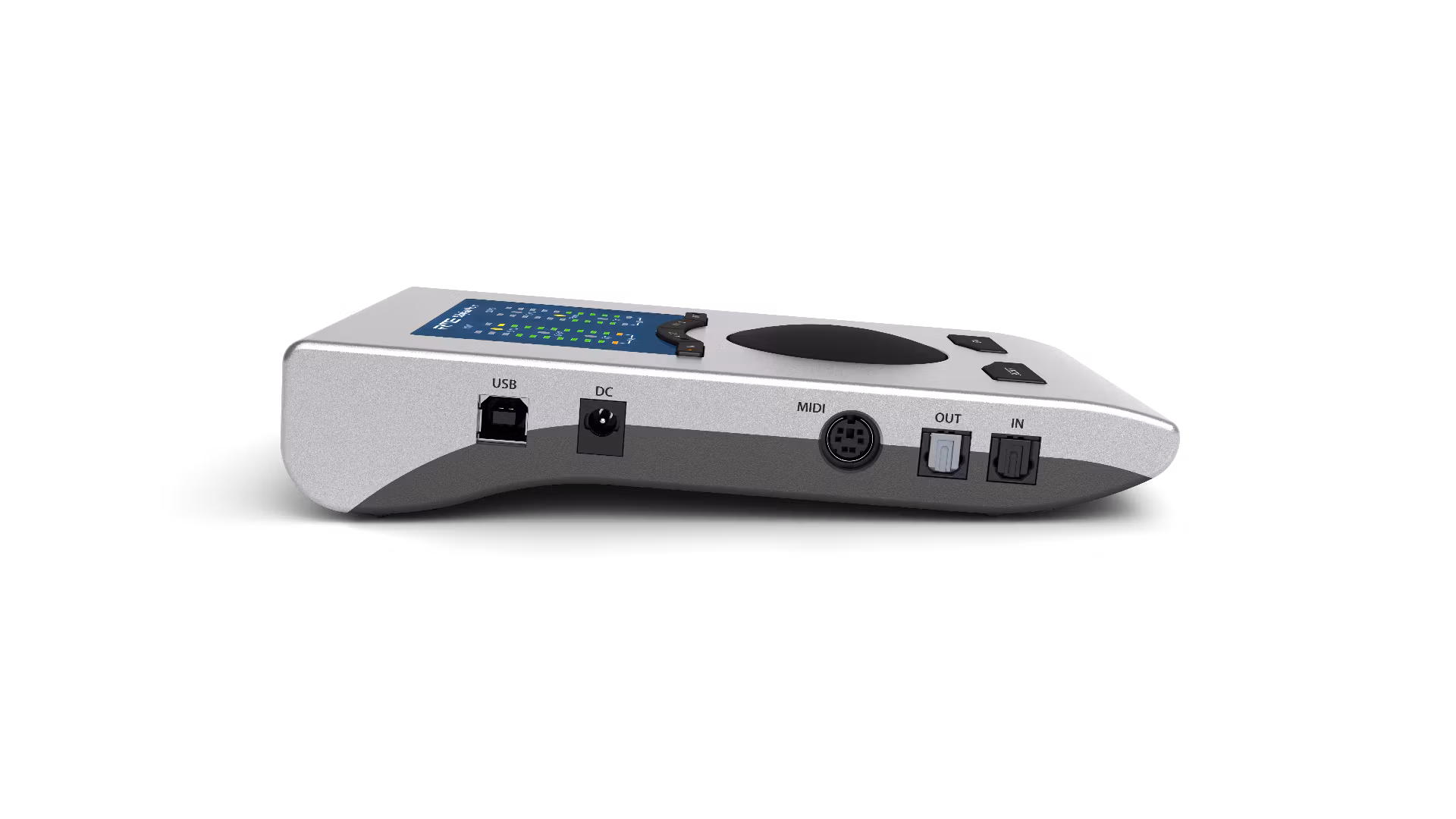

The comprehensive feature set continues with an optical TOSLINK I/O;  use as either an ADAT port with SMUX support or SPDIF for sessions up to  192 kHz. In combination with an external ADAT converter, the Babyface  Pro fully supports 12 analog inputs as well as 12 outputs, making it  ideal for both live and studio multi-track applications. You can plug  any instrument, line or high impedance, into Babyface Pro’s jack inputs 3  & 4. Record your guitar on the go, with no additional hardware  required. MIDI I/O via an included breakout cable completes the package.

More Pro level Performance with SteadyClock FS

In digital audio, the clock frequency is an essential factor, as it  creates the correlation between the audio bits and the time reference.  Unfortunately, the clock frequency is not always as stable as desired.  The Babyface Pro FS offers the full SteadyClock FS circuit  as in the ADI-2 Pro FS for lowest jitter and highest jitter immunity.  Excellent performance in all clock modes and High Quality Analog  Conversion to hear your mix as it is. Digital format conversion in RME  products are done without any loss or degredation,and SteadyClock FS  ensures your sonic image will never experience degredation. This helps  to optimize recordings and mixes because the soundstage has more depth  and clarity.

Mixing & Routing with TotalMix FX & TotalMix Remote

Like all the latest RME interfaces, the Babyface Pro FS also includes  the powerful digital real-time mixer TotalMix FX. It allows fully  independent routing and mixing of input and playback channels to all  physical outputs. Independent stereo submixes plus a comprehensive  Control Room section offer unrivalled monitoring capabilities and  unsurpassed routing flexibility.

Babyface Pro FS ships with RME’s TotalMix FX,  available for Windows and Mac OS X. An iOS version is available as  well. This amazingly versatile software allows you to use Babyface Pro  in any situation. For example mixing your guitar and vocals to  headphones has never been easier. The FPGA-based DSP mixer adds a  flexible, 3-band parametric equalizer to all inputs and outputs. Reverb  and delay FX are also available.

Additionally RME’s latest software, TotalMix Remote, enhances the  power of the Babyface Pro FS by enabling remote control via iOS, PC or  Mac. With a straightforward set up process — simply enter the IP address  of the computer you would like to control with TotalMix Remote and get  going — users can quickly adjust any aspect of TotalMix FX on a host  system while walking around the studio with their tablet, or from a  control room located elsewhere in the facility.

The FPGA-based DSP mixer adds a flexible, 3-band parametric equalizer  to all inputs and outputs. Reverb and delay FX are also available.  Latest generation low latency AD/DA converters, combined with RME’s  unique SteadyClock FS technology, result in exceptional specifications  that will satisfy the most demanding of professionals. Combining a huge  feature set with sonic excellence and intuitive control, whether for the  studio or on the move, the RME Babyface Pro is the most comprehensive  and versatile compact audio interface ever built.

Easy to use and perfectly Stable

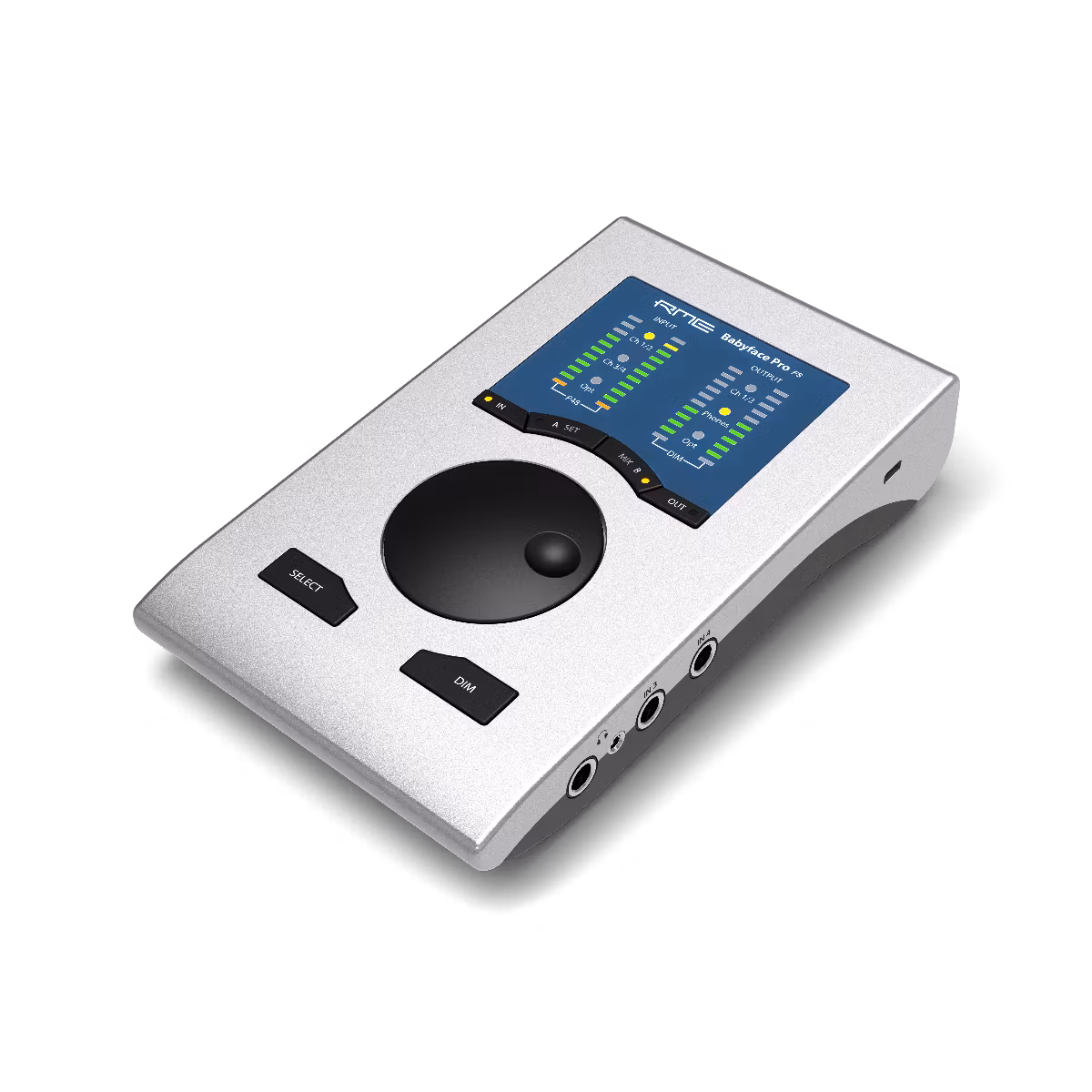

Straight to the core without interference: the reference design of  the Babyface Pro leaves nothing to be desired. RME devices are designed  to conserve music as it is. Audio signals are passed in their entirety,  nothing added, nothing taken. For the new Babyface, the audio circuits  have been improved to meet even highest gain levels with best dynamic  range. The clever user interface is informative and clearly laid out. It  makes access to every feature and configuration mode of the Babyface  Pro intuitive and easy to use.

RME USB - Transport audio with lowest latency and industry leading stability

As part of RME’s product philosophy, we always further develop and  optimize our core technology. RME have paved the way for multichannel  audio and were the first to deliver professional performance over USB 2.0.  We place a high level of attention on the development of reliable,  stable, and regularly updated drivers for our products and an unwavering  focus on audio quality. This guarantees your Babyface Pro FS will be  never outdated and always updated.

And because RME Audio develops its own interface core, it’s not  dependent on 3rd parties for upgrades, modifications or bug fixes, so  customers can use latest operating systems without interruption or  delay.
