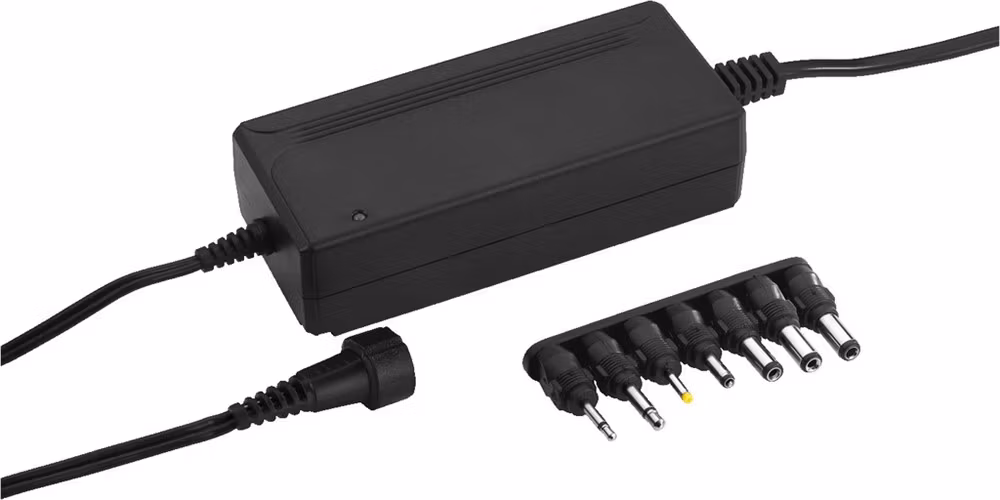

Monacor PSS-3000E 5-15V, 3-2,4A, 100-240V

  • 610 kr

Switch-mode PSU, 3 A max.,with a high energy efficiency, corresponds to the EU ecodesign directive.Saves electricity costs due to a low power consumption in sta

I lager.
Switch-mode PSU, 3 A max.,
with a high energy efficiency, corresponds to the EU ecodesign directive.
  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Switchable output voltage
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Selectable polarity by reversing the supplied adapters
  • 7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm
Categoryswitch-mode power supply
Input voltage∿ 100-240 V/50-60 Hz/800 mA
Output voltageDC 5/6/7.5/9/12/13.5/15 V
Charging/output current3/3/3/3/3/2.4/2.4 A, 36 VA
Charging time-
Trickle charge-
Polarity selectionyes
Switchable output voltageyes
Reactivation-
Connectionsplug-in adapter
Cable length1.8 m
Short-circuit protectionyes
Overload protectionyes
Overheat protectionyes
Reverse polarity protection-
Detection of faulty battery-
Protective class-
Admiss. ambient temp.0-40 °C
Dimensions50 x 32 x 115 mm
Weight300 g
Position-
Other features-
