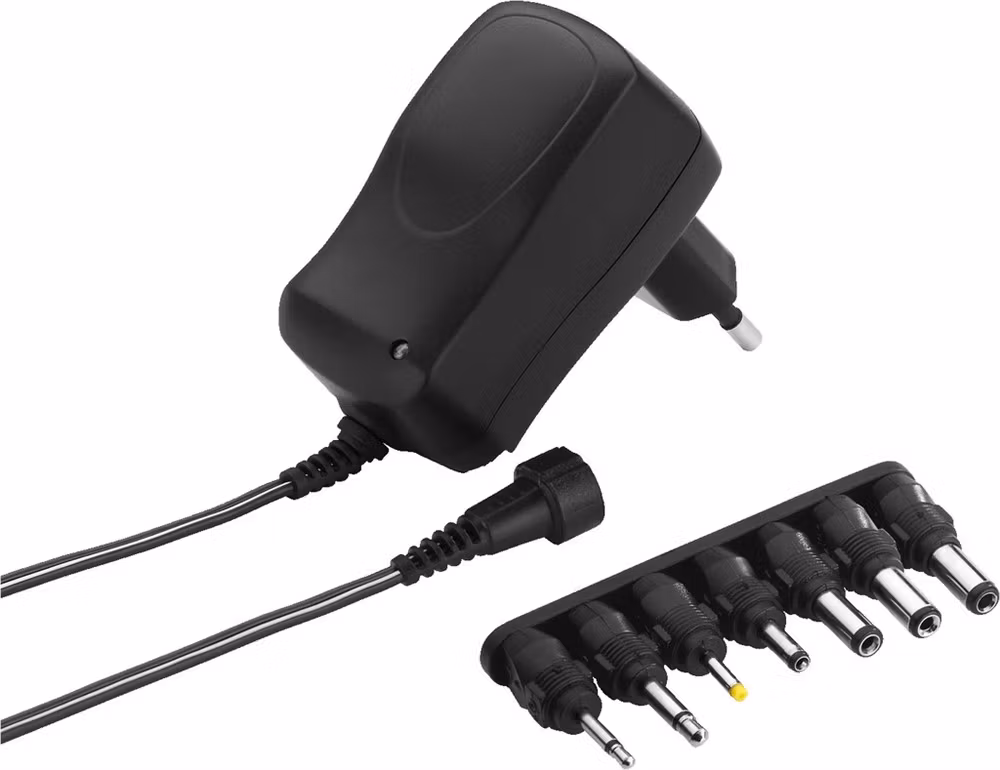

Monacor PSS-600E 3-12V, 600mA, 100-240V

  • 215 kr

Switch-mode PSU, 0.6 A,with a high energy efficiency, corresponds to the EU ecodesign directive.Saves electricity costs due to a low power consumption in standb

I lager.
Switch-mode PSU, 0.6 A,
with a high energy efficiency, corresponds to the EU ecodesign directive.
  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Switchable output voltage
  • Compact lightweight design
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Selectable polarity by reversing the supplied adapters
  • 7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm
Categoryswitch-mode power supply
Input voltage∿ 100-240 V/50-60 Hz/160 mA
Output voltageDC 3/4.5/5/6/7.5/9/12 V
Charging/output current600 mA
Charging time-
Trickle charge-
Polarity selectionyes
Switchable output voltageyes
Reactivation-
Connectionsplug-in adapter
Cable length1.8 m
Short-circuit protectionyes
Overload protectionyes
Overheat protectionyes
Reverse polarity protection-
Detection of faulty battery-
Protective class-
Admiss. ambient temp.0-40 °C
Dimensions38 x 50 x 68 mm
Weight99 g
Position-
Other featureseco
