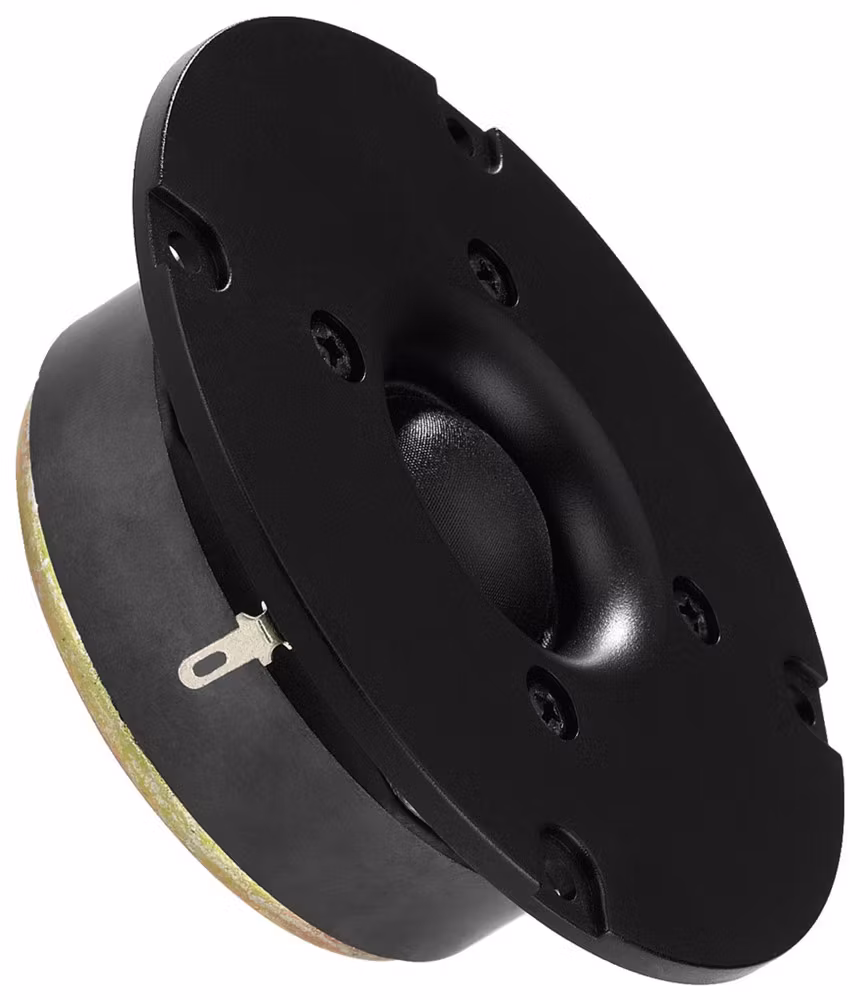

Monacor DT-99 25mm, 40Wrms, 8ohm

  • 529 kr

Hi-fi dome diskanthögtalare, 80 WMAX, 40 WRMS, 8 Ohm Kon i rent siden Utmärkt strålning Mycket typisk ljudtryckskurvaFör ersättningsändamål och hi-fi-

I lager.
Hi-fi dome diskanthögtalare, 80 WMAX, 40 WRMS, 8 Ohm
  • Kon i rent siden
  • Utmärkt strålning
  • Mycket typisk ljudtryckskurva
  • För ersättningsändamål och hi-fi-applikationer

Egenskaper

Impedance (Z)8 Ohm
Transmission method-
Frequency rangefx-18,000 Hz
Resonant frequency (fs)1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)2,500 Hz
Power rating (RMS)40 W
Peak music power output (MAX)80 W
Sensitivity93 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameterØ 25 mm
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameterØ 70 mm
Mounting cutoutØ 85 mm
Mounting depth34 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 99.5 x 34 mm
Outside diameterØ 99.5 mm
WidthØ 99.5 mm
Height-
Depth34 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.51 kg
Packing unit1
Type of speaker-
