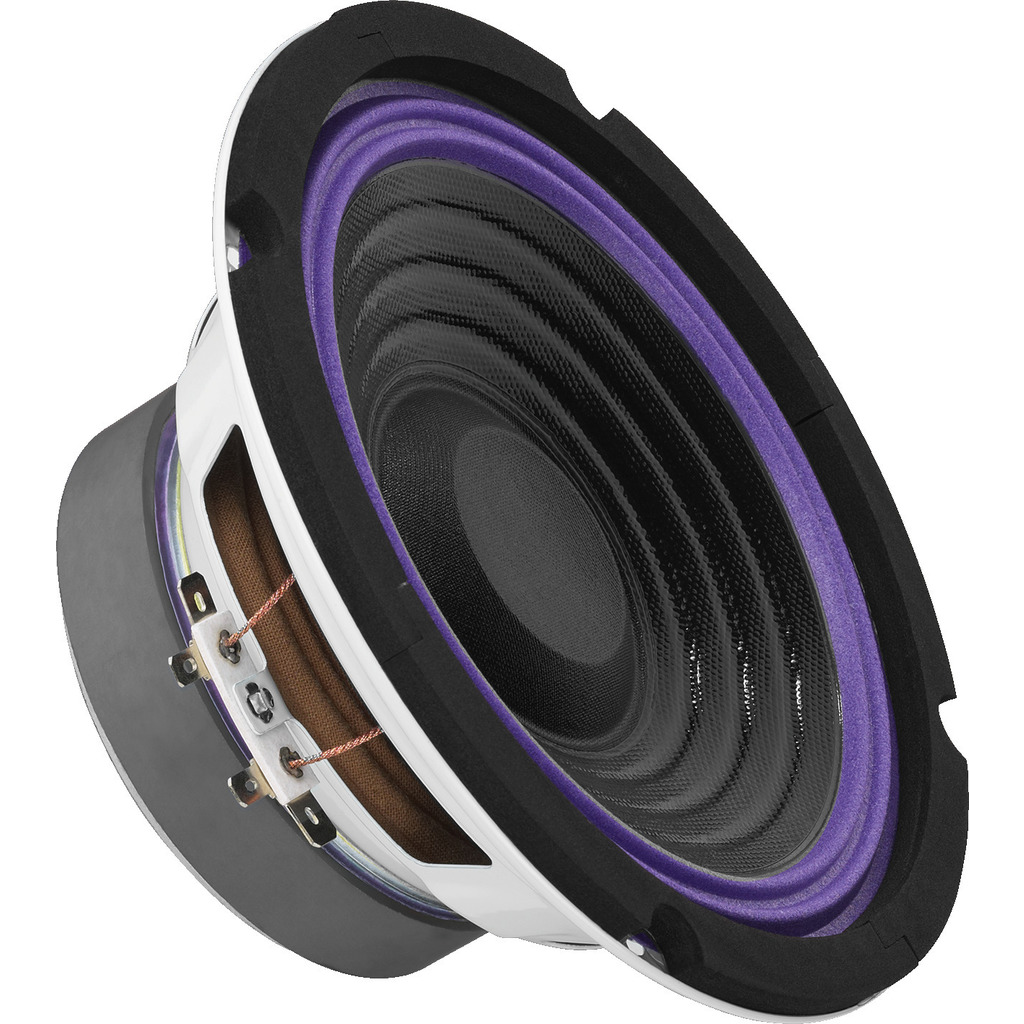

Monacor SP-167C 6 1/2'' bilwoofer

  • 345 kr

Perfect Car Hi-fi Subwoofers for Free Air ApplicationsCoated  paper cone with reinforced rings and long excursion surround of special  design. Magneti

I lager.
Lagersaldo: 2

Perfect Car Hi-fi Subwoofers for Free Air Applications
Coated  paper cone with reinforced rings and long excursion surround of special  design. Magnetic systems with a high drive power and far protruding  lower pole plate ensure an exceptionally high excursion accordingly.

Car hi-fi bass-midrange speaker, 100 WMAX, 50 WRMS, 4 ?

  • 16 cm (6½") bass-midrange speaker
  • Coated cone
  • Also suitable for replacing kick bass speakers of free air applications in compact vehicles
  • Protruding lower pole plate for a long excursion
TEKNISK DATA:
Impedance (Z)4 ohm
Transmission method-

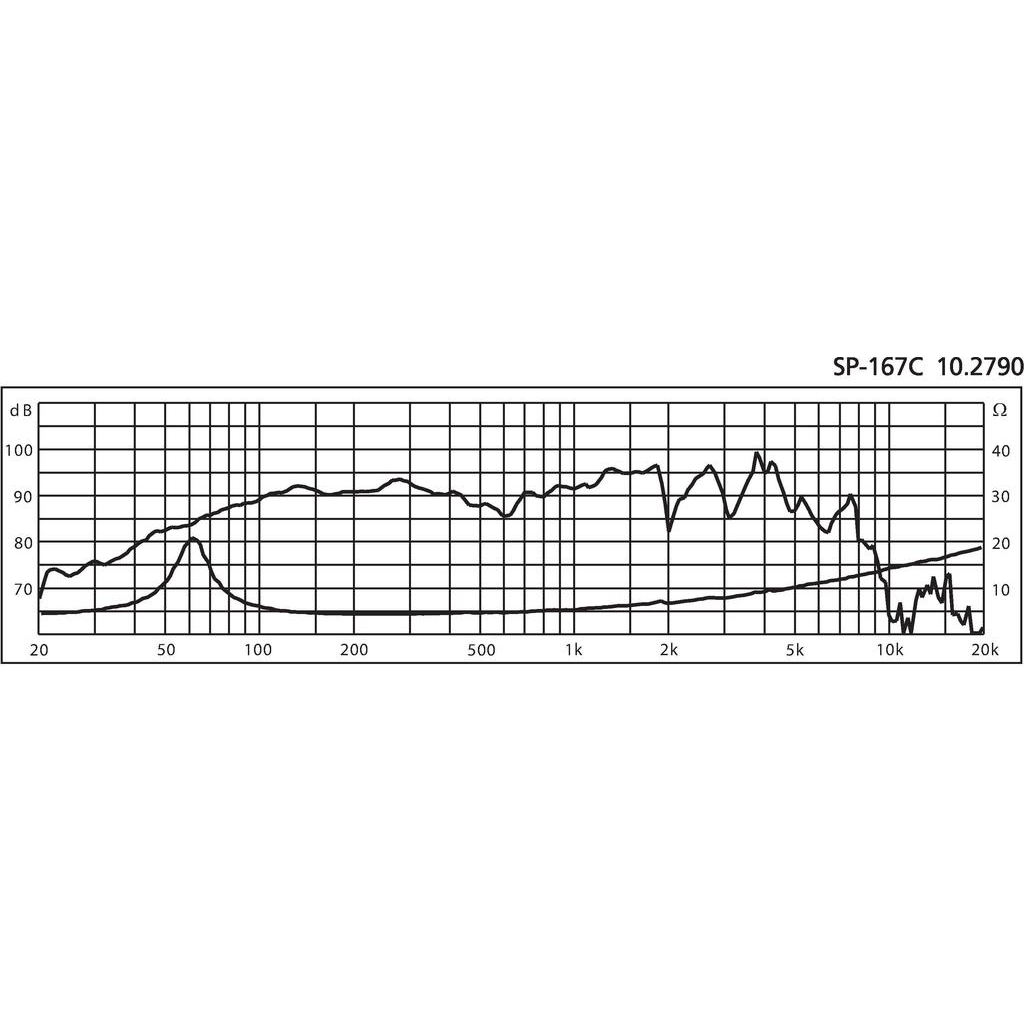

Frequency rangef3-5,500 Hz
Resonant frequency (fs)49 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)3,000 Hz
Power rating (RMS)50 W
Peak music power output (MAX)100 W
Sensitivity91 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.84 mm/N
Moving mass (Mms)12 g
Mech. Q factor (Qms)2.89
Electr. Q factor (Qes)0.45
Total Q factor (Qts)0.39
Equivalent volume (Vas)22 l
DC resistance (Re)3.7 ?
Force factor (BxL)5.60 Tm
Voice coil induct. (Le)0.2 mH
Voice coil diameter25 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 4 mm
Eff. cone area (Sd)137 cm2
Magnet weight570 g
Magnet diameterØ 100 mm
Mounting cutoutØ 148 mm
Mounting depth80 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

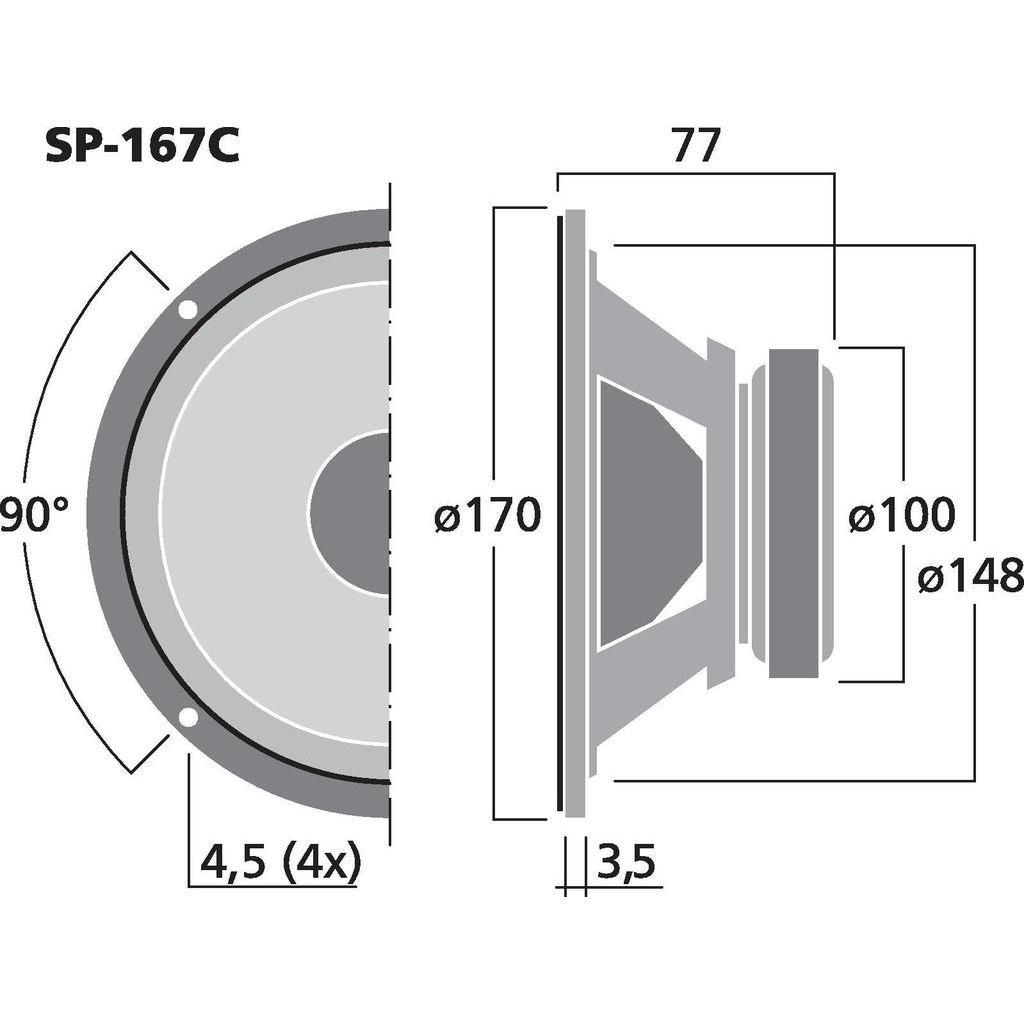

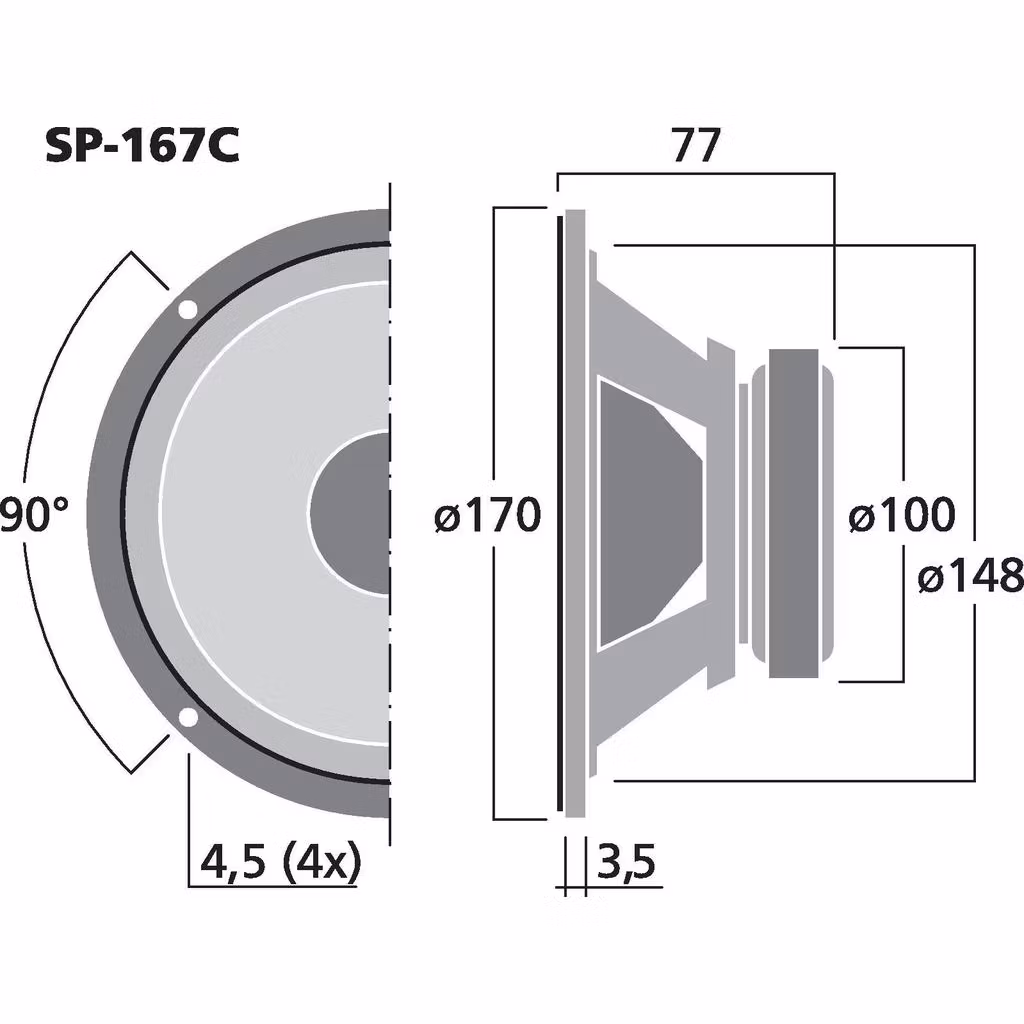

DimensionsØ 170 mm x 77 mm
Outside diameterØ 170 mm
WidthØ 170 mm
Height-
Depth77 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.22 kg
Packing unit-
Type of speaker6.5"
