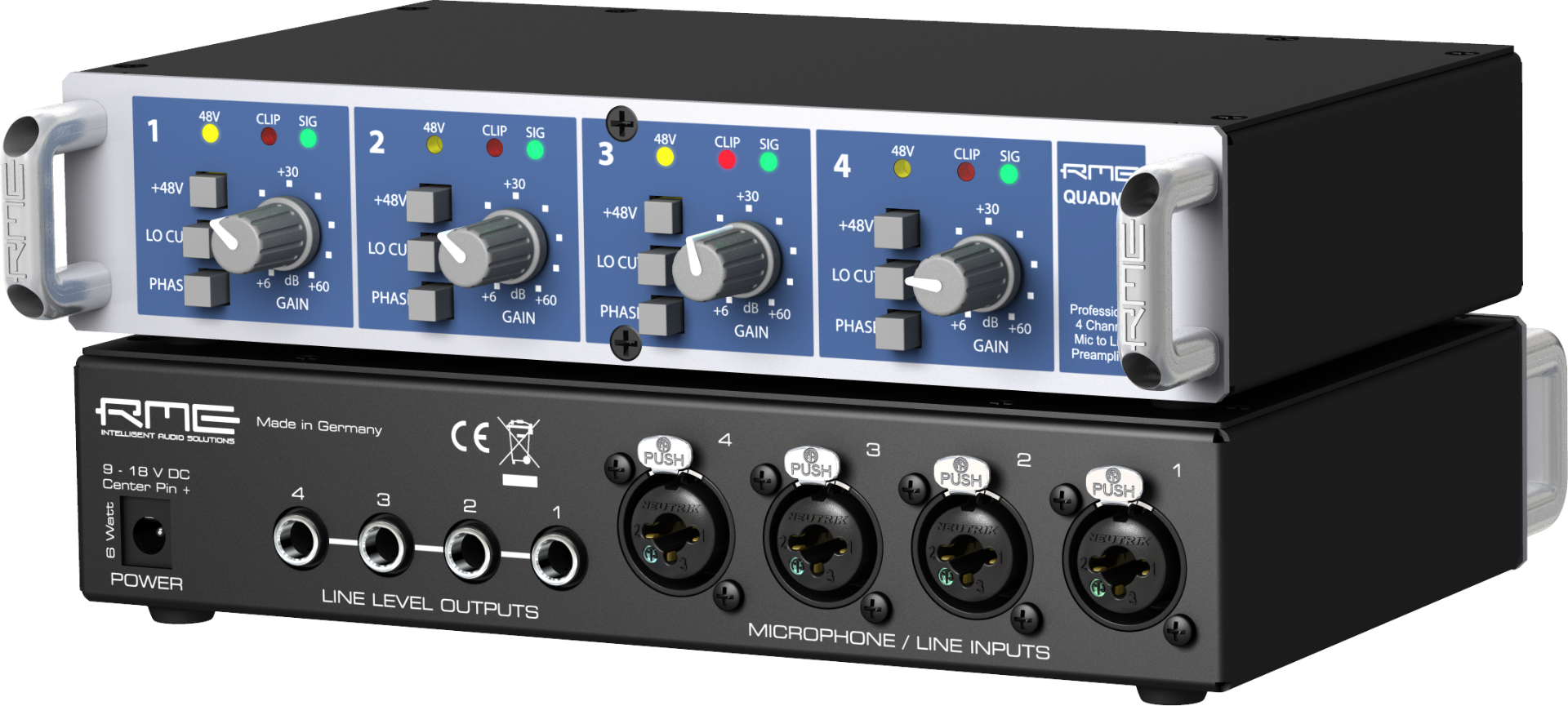

RME QUADMIC2, 4-channel, Class-A Mic/Line Preamp.

RME QUADMIC2, 4-channel, Class-A Mic/Line Preamp.

Excellent signal/noise ratio, lowest harmonic distortions and wide gain  range make the QuadMic II a first choice for superior studio recordings.  QuadMic II is battery powerable and thus excellent for remote  applications.

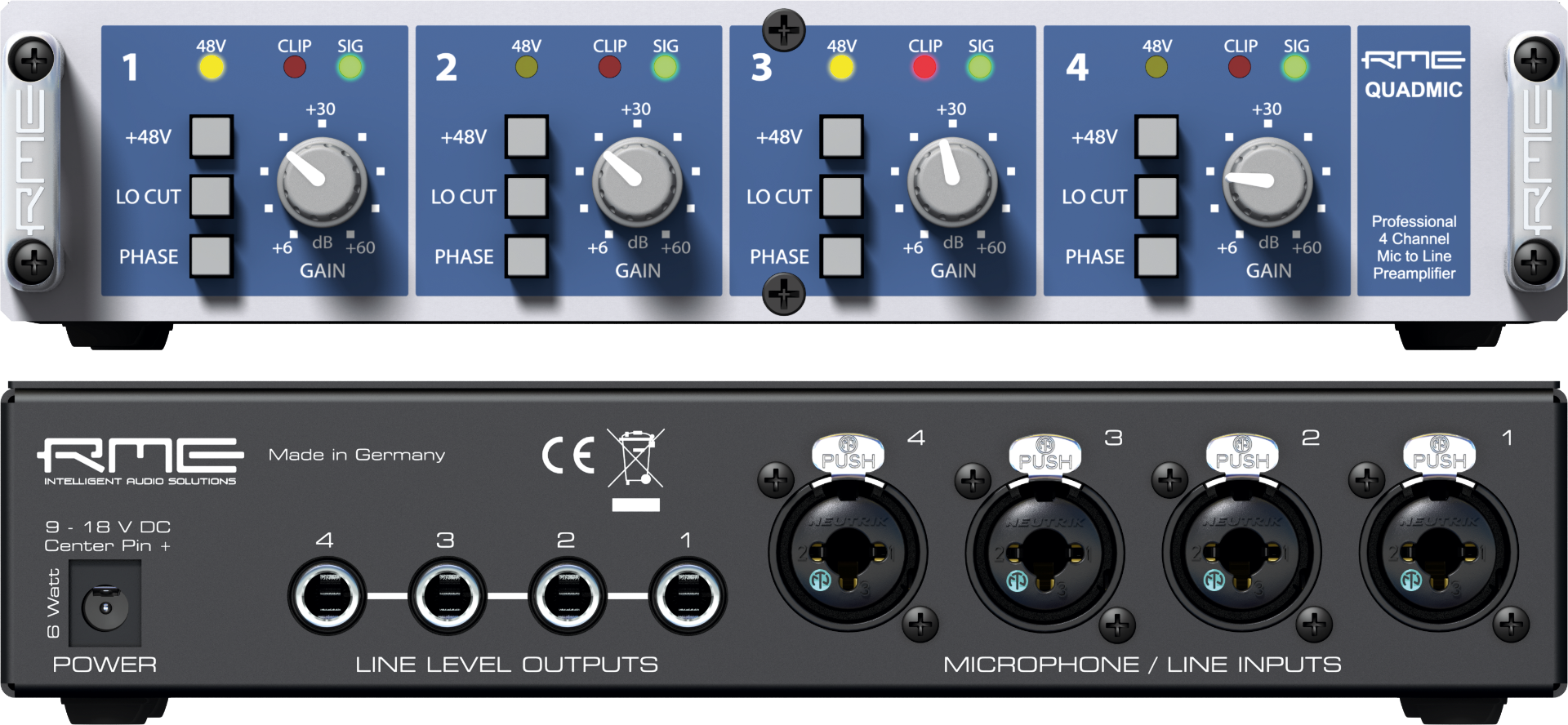

Each of the 4 channels features balanced microphone and line inputs  with Neutrik XLR/TRS combo jacks, switchable 48V phantom power, phase  reversal and a low cut filter.

All channels are also equipped with LEDs for signal presence, clip  state, and activated phantom power. The input amplification can be set  from 6 to 60 dB. The balanced line level output signals are provided on  the rear of the unit as four 6.3 mm (1/4") TRS jacks.

A maximum balanced and unbalanced output level of +21 dBu makes the  QuadMic II fully compatible to RME's converters and interface series  having analog inputs.

 The QuadMic II complements any RME system with line inputs by adding  external microphone inputs. Since the unit runs on supply voltages from  9 to 18V DC, it can operate on virtually any power source available,  including batteries and rechargeable batteries.

Connectivity/Features

• 4 x Mic Preamp Inputs
• XLR/TRS Combo Input
• 4 x Line Outputs
• Phantom power per channel
• Low Cut per channel
• Phase reversal per channel
• DC powered, battery compatible
• Low power / wide range DC operation
