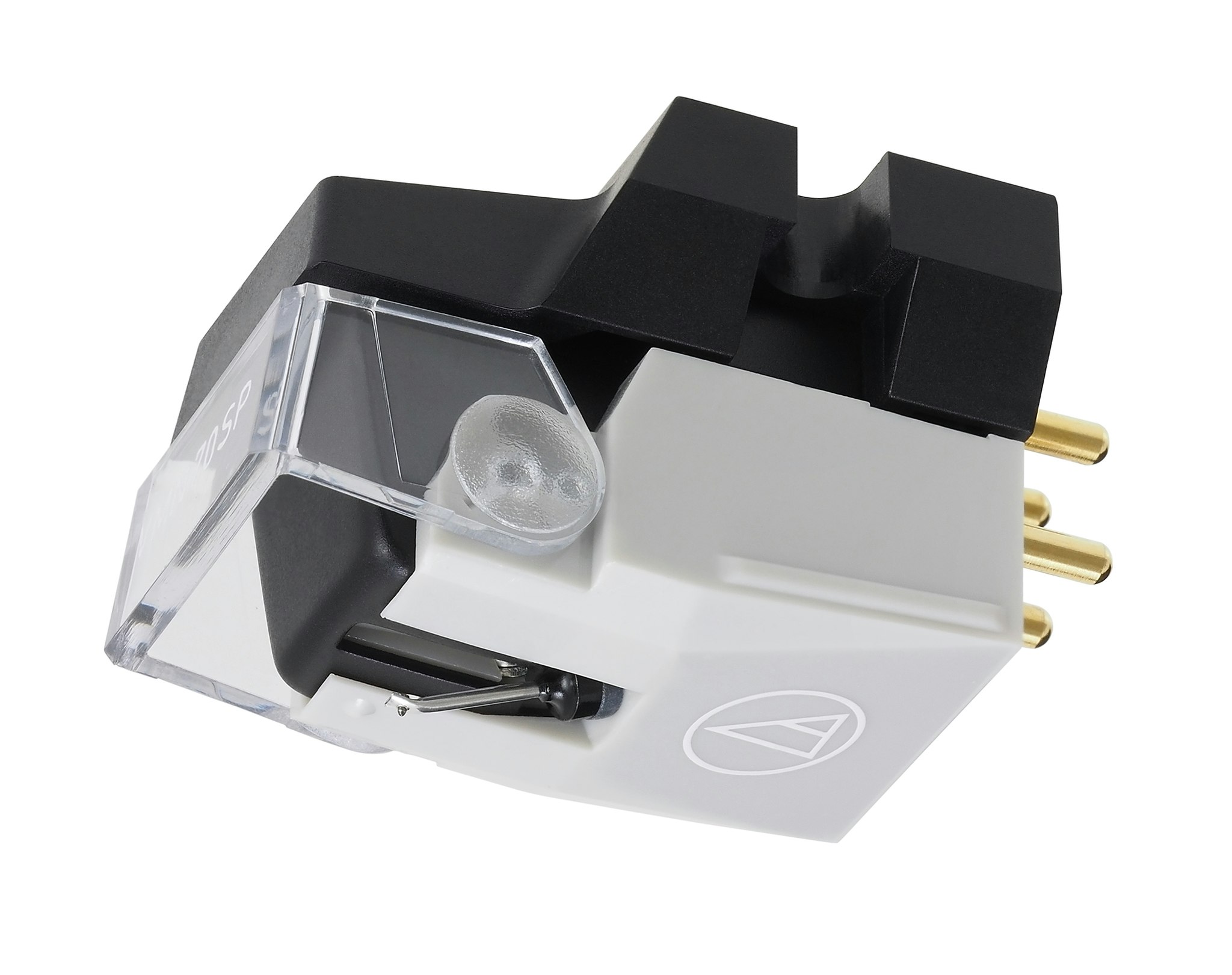

Audio-Technica, AT-VM670SP Dual Moving Magnet Mono Cartridge for Shellac or Phonograph records

  • 1 990 kr

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is des

I lager.

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras. Includes mounting hardware.

Specifications

Cartridge & Stylus
Frequency Response20 - 20,000Hz
Vertical Tracking Angle23˚
Stylus ConstructionBonded Round Shank
Recommended Load Impedance47,000Ω
Coil Impedance1,400Ω (1kHz)
Output Voltage3.0mV (1kHz, 5cm/sec.)
Stylus ShapeConical Bonded (3mil)
CantileverAluminium Pipe
Static Compliance15 x 10-6 cm/dyne
Dynamic Compliance2.0 x 10-6 cm/dyne (100Hz)
Mounting1/2” centres
Dimensions17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories IncludedCartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance100 – 200pF
Replacement StylusVMN70SP
Stylus Size3.0 mil
TypeVM Type
Weight6.4g
