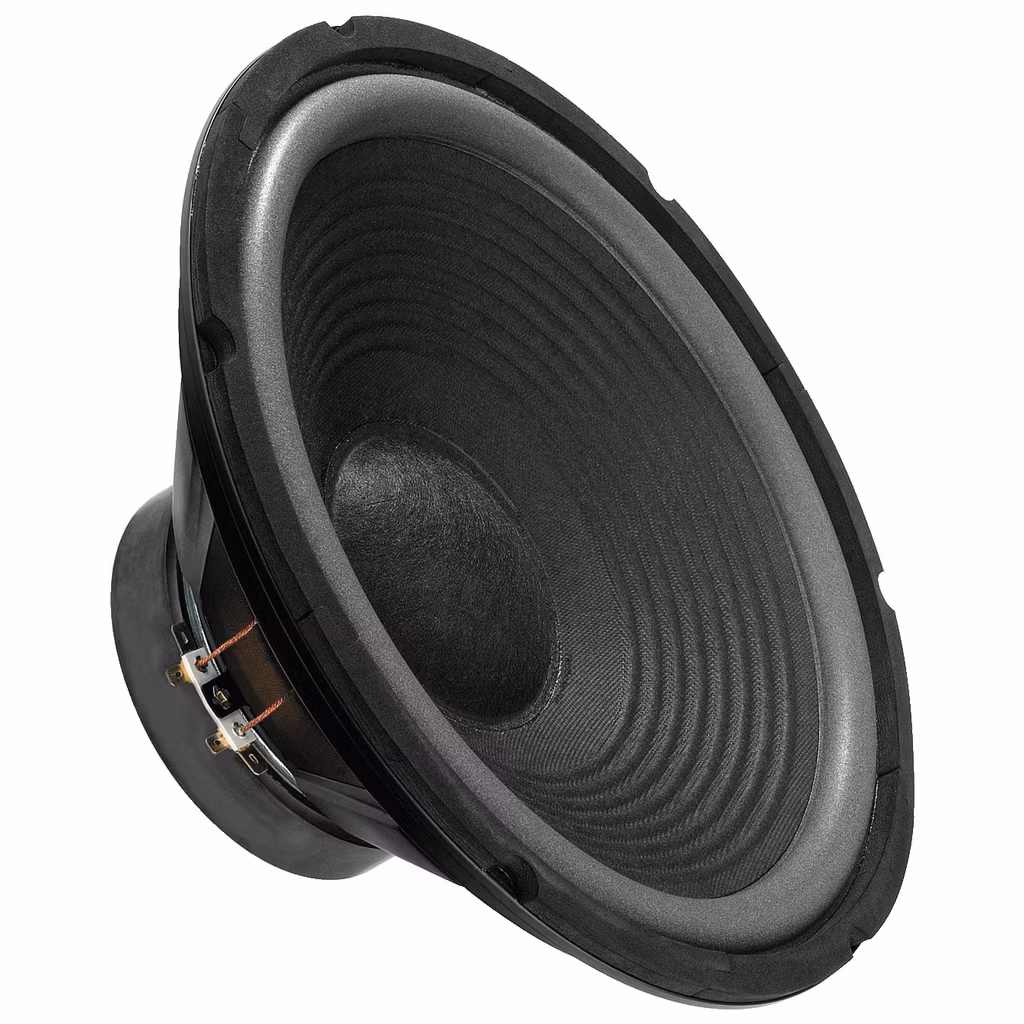

Monacor SP-302E 12'' bashögtalare

  • 835 kr

Series of 4 ohm Hi-fi Speakers for General ApplicationsNeat  workmanship and ideally suited e.g. as replacement speakers due to the  exceptional price

I lager.

Series of 4 ohm Hi-fi Speakers for General Applications
Neat  workmanship and ideally suited e.g. as replacement speakers due to the  exceptional price and their multi-purpose drive qualities.

Hi-fi bass-midrange speaker, 200 WMAX, 100 WRMS, 4 ?

  • Multi-purpose speaker
  • Foam surround
  • Replacement speaker for closed cabinets

Egenskaper

Impedance (Z)4 Ohm
Transmission method-

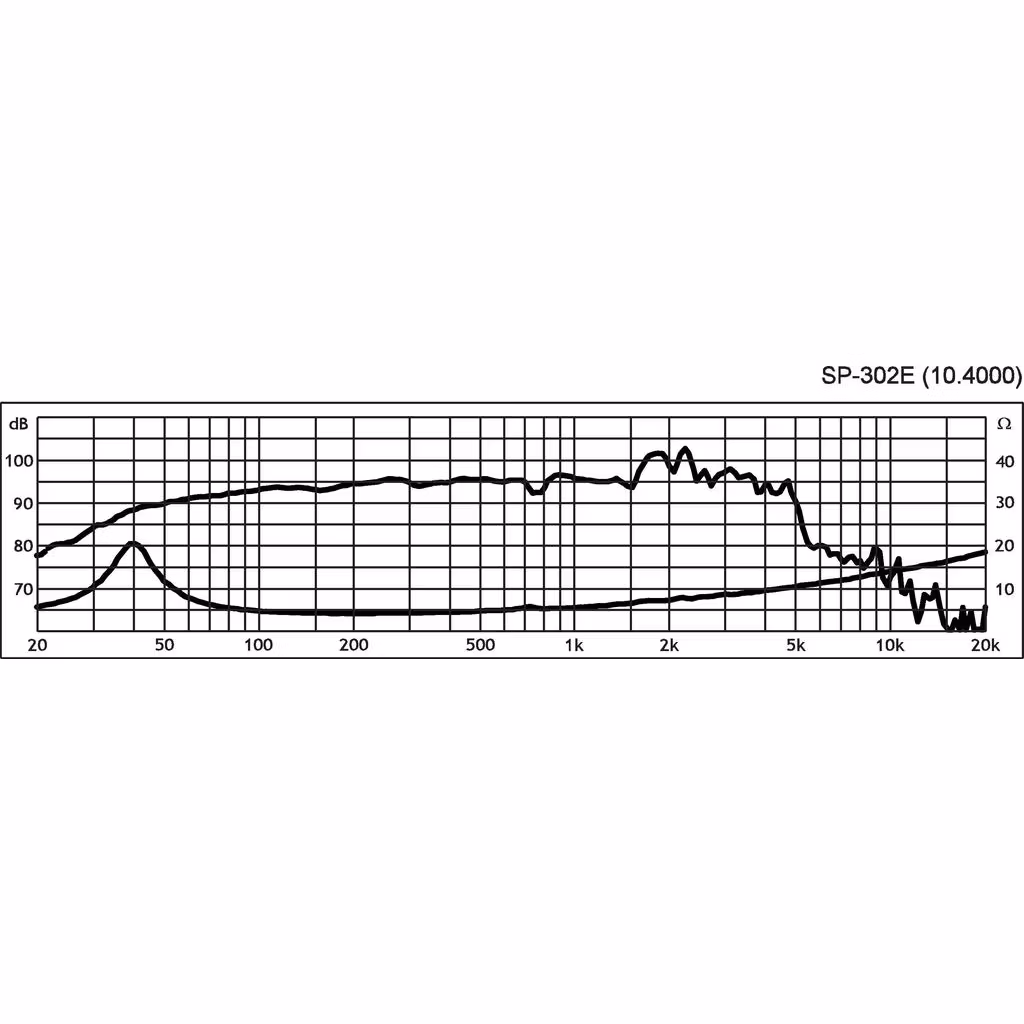

Frequency rangef3-5,500 Hz
Resonant frequency (fs)39 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)100 W
Peak music power output (MAX)200 W
Sensitivity95 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.39 mm/N
Moving mass (Mms)40 g
Mech. Q factor (Qms)4.24
Electr. Q factor (Qes)0.87
Total Q factor (Qts)0.72
Equivalent volume (Vas)141 l
DC resistance (Re)3.6 O
Force factor (BxL)6.63 Tm
Voice coil induct. (Le)1.1 mH
Voice coil diameterØ 50 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 4 mm
Eff. cone area (Sd)518 cm2
Magnet weight960 g
Magnet diameterØ 125 mm

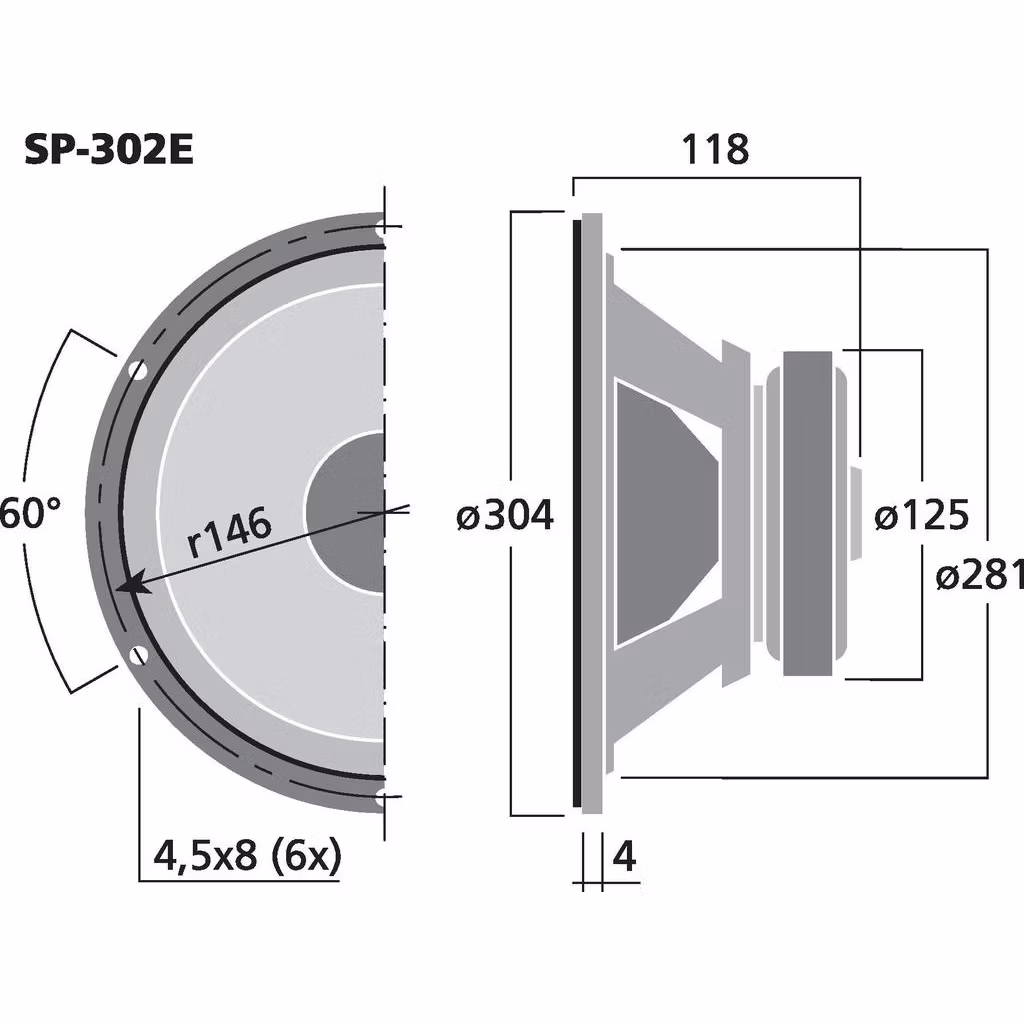

Mounting cutoutØ 281 mm
Mounting depth114 mm
Mounting hole diameterØ 292 mm
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 304 mm x 118 mm
Outside diameterØ 304 mm
WidthØ 304 mm
Height-
Depth118 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight2.58 kg
Packing unit1
Type of speaker12"
