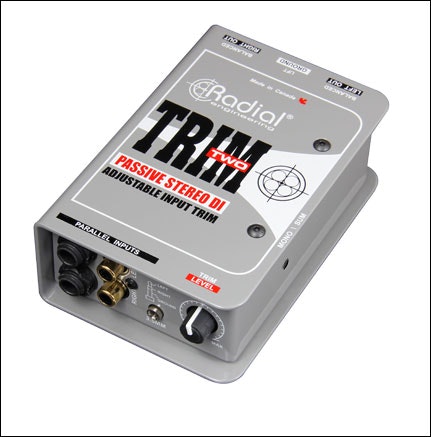

Radial TRIM TWO Stereo DI with Level Control

* Stereo direct box for line level sources

* Ultra linear response from 30Hz to 20kHz
* Easy access front panel volume control
* Choice of RCA, ¼" and 3.5mm connectors

The Radial Trim-Two is a passive direct box, designed for use with  laptop computers and other consumer devices where the user has a  requirement for a 'ready access' volume control for quick adjustments on  stage.

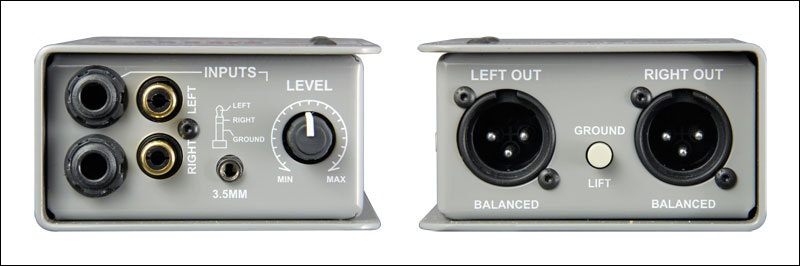

The design begins with a choice of inputs including dual ¼" jacks,  left and right RCAs and a stereo 3.5mm input. These are wired in  parallel to allow the signal to be split off to feed an alternate signal  path such as monitors. Inside, two great sounding Eclipse transformers  do the work of isolating and balancing the signal. These 'passive  engines' deliver a linear frequency response from 20Hz to 18kHz and are  capable of handling up to +15dB signal levels thus providing typical  -10dB consumer-level devices with plenty of headroom. An easy access  front panel stereo level control makes adjusting the volume a snap. A  handy stereo-to-mono switch makes it easy to reduce the output channel  count or send the same balanced signal to two destinations at once.  Transformers provide galvanic isolation between the source and the  destination and are extremely effective at eliminating hum and buzz  caused by ground loops. This is augmented with a ground lift switch at  the XLR outputs. One merely connects the source to the Trim-Two and then  the male XLR outputs to the PA system. As the Trim-Two is completely  passive, no power is required.

Made in Canada from heavy duty 14 gauge steel, the Trim-Two  features Radial's unique book-end design that creates protective zones  around the connectors and controls. Inside, the unique I-beam frame  protects the sensitive inner workings from potential damage that could  torque the PC board and cause solder pointes to prematurely go cold. The  steel casing also provides shielding against external magnetic fields.

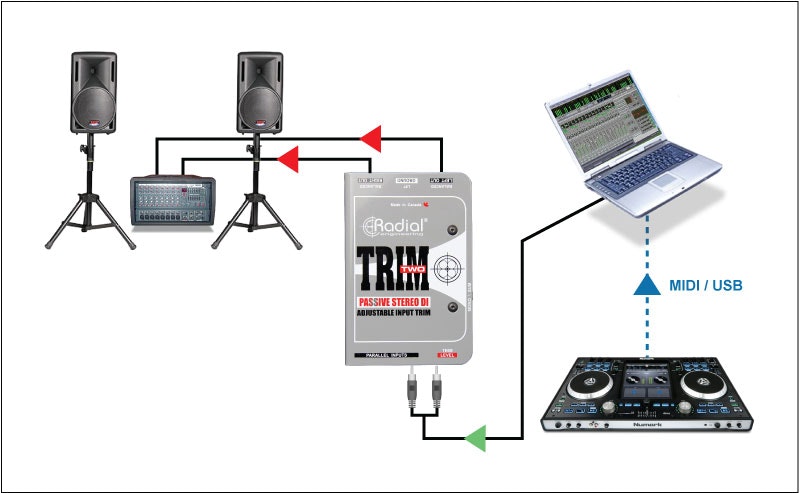

These features make the Trim-Two a great choice for keyboard  players, DJs, audio-visual presenters and others that employ a laptop or  tablet with a handy volume control.
