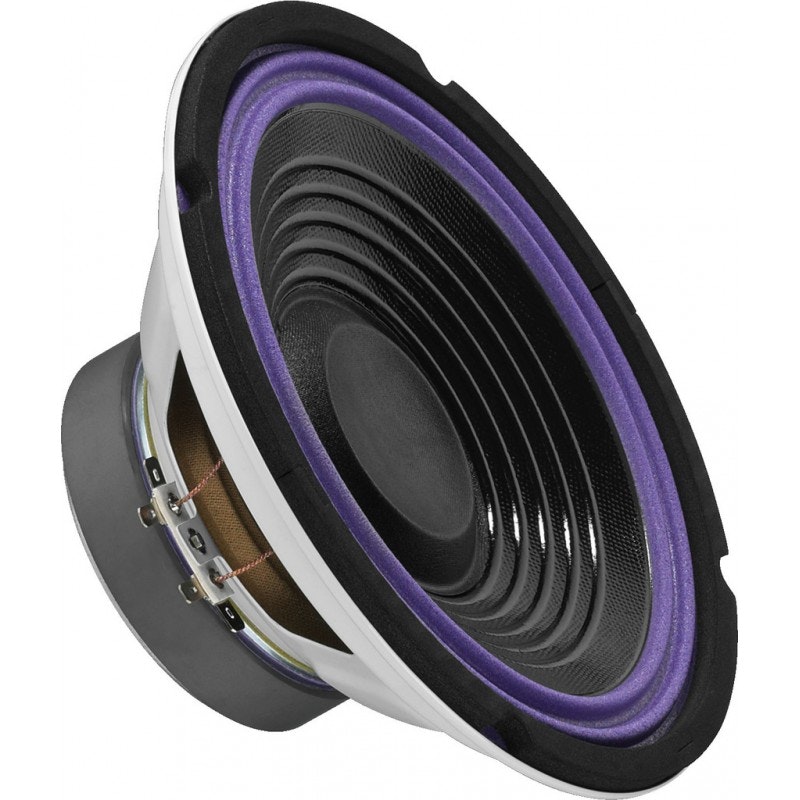

Monacor SP-202C 8'' bilwoofer
- 425 kr
Perfect Car Hi-fi Subwoofers for Free Air ApplicationsCoated paper cone with reinforced rings and long excursion surround of special design. Magneti
Lagersaldo:
2
Perfect Car Hi-fi Subwoofers for Free Air Applications
Coated paper cone with reinforced rings and long excursion surround of special design. Magnetic systems with a high drive power and far protruding lower pole plate ensure an exceptionally high excursion accordingly.
Car hi-fi bass speaker, 150 WMAX, 75 WRMS, 4 ohm
- 20 cm (8") bass speaker
- Coated cone as a bass addition for free air applications in compact vehicles
- Protruding lower pole plate for a long excursion
| TEKNISK DATA: | |
| Impedance (Z) | 4 ohm |
| Transmission method | - |
| Frequency range | f3-4,000 Hz |
| Resonant frequency (fs) | 37 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,500 Hz |
| Power rating (RMS) | 75 W |
| Peak music power output (MAX) | 150 W |
| Sensitivity | 91 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 0.95 mm/N |
| Moving mass (Mms) | 19 g |
| Mech. Q factor (Qms) | 3.64 |
| Electr. Q factor (Qes) | 0.58 |
| Total Q factor (Qts) | 0.5 |
| Equivalent volume (Vas) | 61 l |
| DC resistance (Re) | 3.8 ? |
| Force factor (BxL) | 5.51 Tm |
| Voice coil induct. (Le) | 0.3 mH |
| Voice coil diameter | 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 4 mm |
| Eff. cone area (Sd) | 214 cm2 |
| Magnet weight | 570 g |
| Magnet diameter | Ø 100 mm |
| Mounting cutout | Ø 182 mm |
| Mounting depth | 90 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | Ø 202 mm x 86 mm |
| Outside diameter | Ø 202 mm |
| Width | Ø 202 mm |
| Height | - |
| Depth | 86 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.29 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
