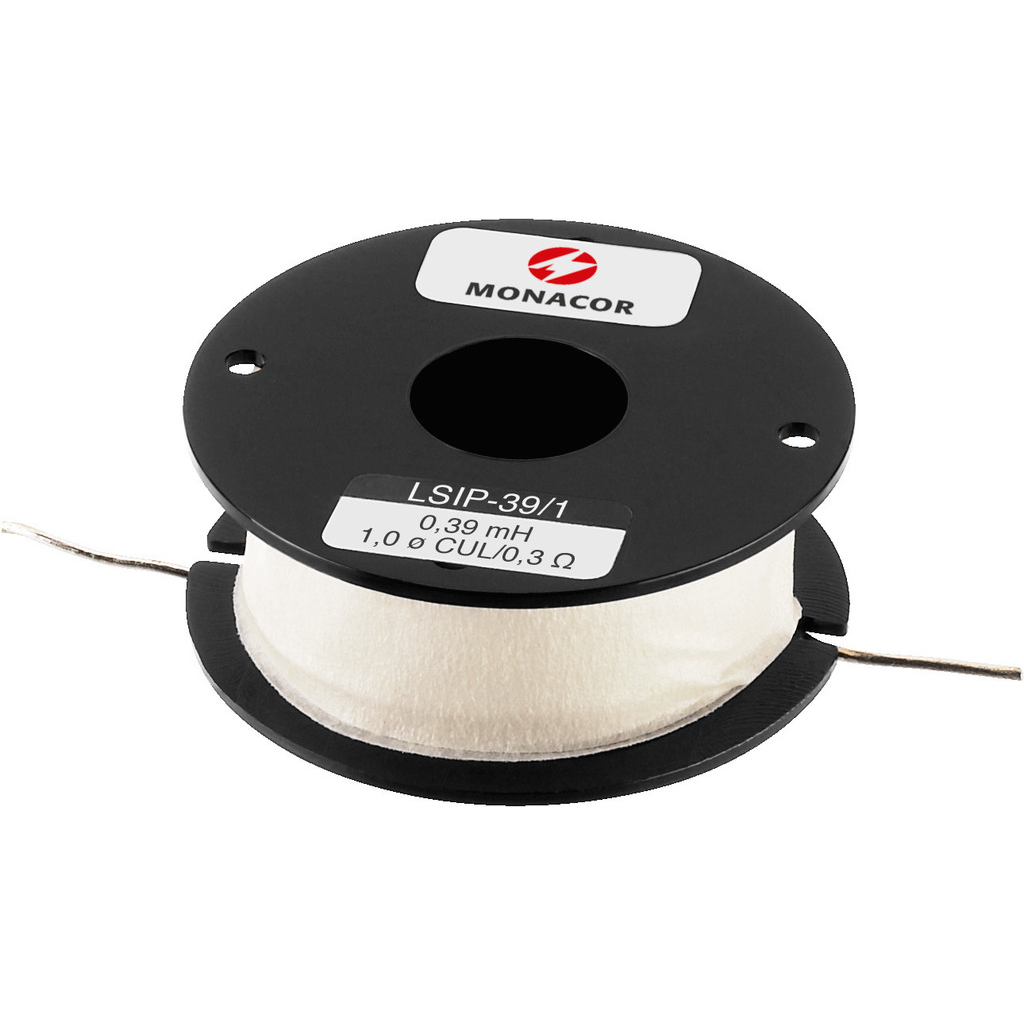

Monacor LSIP-39/1 Luftlindad Spole 0.39mH
- 74 kr
Air Core CoilsWith medium wire thickness (1 mm), for general applications, for constructing high-quality crossover networks of high power rating.Air
Lagersaldo:
2
Air Core Coils
With medium wire thickness (1 mm), for general applications, for constructing high-quality crossover networks of high power rating.
Air core coils, from 0.1 to 3.9mH, wound on a plastic carrier, intended for professional crossover networks of high power for development and production. In a wire thickness from 0.85 to 1.2mm Ø CUL.
Egenskaper
Description | air core coil |
Nominal value | 0.39 mH |
Rated voltage | - |
Power rating | 150 W |
Frequency range | - |
Housing | - |
Colour/colour coding | - |
Enam. copper wire(CUL) | Ø 1.0 mm |
DC resistance | 0.3 O |
Saturation current(50 Hz) | - |
Primary | - |
Secondary | - |
Pin spacing | - |
Packing unit | 1 |
Dimensions | ?48 mm x 19 mm |
Weight | 97 g |
Pos. | - |
Other features | - |
