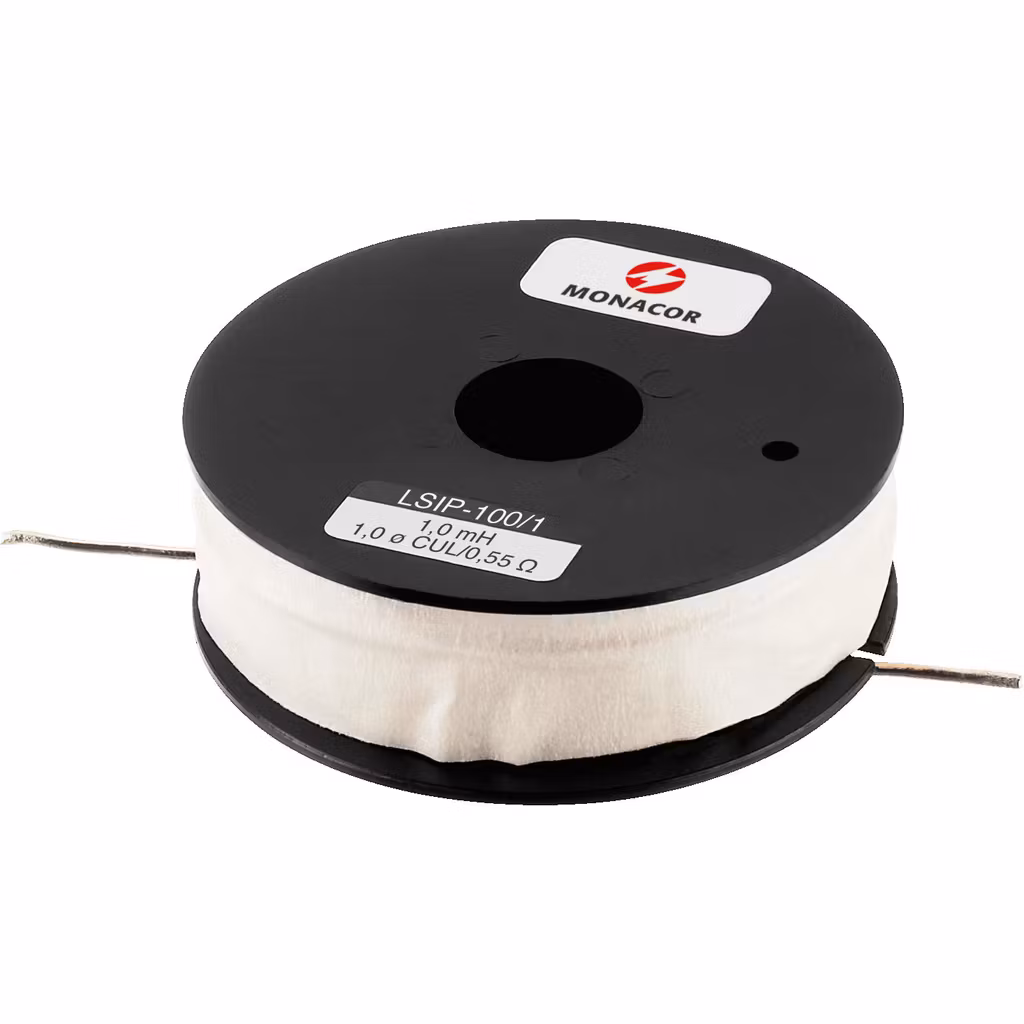

Monacor LSIP-100/1 Luftlindad Spole 1.0 mH
- 169 kr
Air Core CoilsWith medium wire thickness (1 mm), for general applications, for constructing high-quality crossover networks of high power rating.Air
Air Core Coils
With medium wire thickness (1 mm), for general applications, for constructing high-quality crossover networks of high power rating.
Air core coils, from 0.1 to 3.9mH, wound on a plastic carrier, intended for professional crossover networks of high power for development and production. In a wire thickness from 0.85 to 1.2mm Ø CUL.
| TEKNISK DATA: | |
| Description | air core coil |
| Nominal value | 1.0 mH |
| Rated voltage | - |
| Power rating | 150 W |
| Frequency range | - |
| Housing | - |
| Colour/colour coding | - |
| Enam. copper wire(CUL) | Ø 1.0 mm |
| DC resistance | 0.55 ? |
| Saturation current(50 Hz) | - |
| Primary | - |
| Secondary | - |
| Pin spacing | - |
| Packing unit | 1 |
| Dimensions | Ø 59 mm x 19 mm |
| Weight | 171 g |
| Pos. | - |
| Other features | - |
