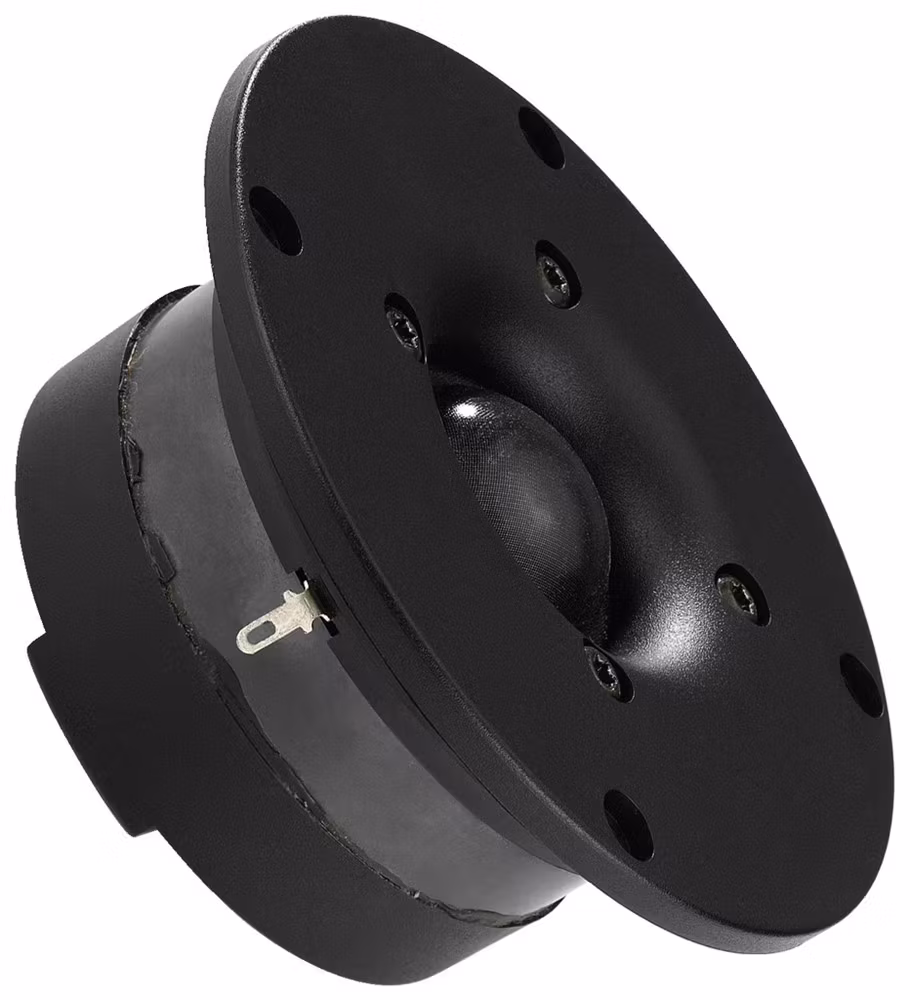

Monacor DT-300 Dome diskant
- 439 kr
Hi-fi dome tweeters with large cone areaFor extra high dynamic power also in case of low crossover frequencies. An ideal solution with excellent bri
Hi-fi dome tweeters with large cone area
For extra high dynamic power also in case of low crossover frequencies. An ideal solution with excellent brilliant sound at the same time.
Hi-fi dome tweeter, 100 WMAX, 50 WRMS, 8 Ohm
- 30 mm silk cone
- Low resonant frequency
- Excellent dynamic response and a high stability, even with low crossovers
- Ferrofluid of high liquidity for a fine brilliance
- Especially suitable for high-performance applications and D'Appolito arrangements in the top hi-fi range
Klang+Ton 06/2014
"Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials."
Egenskaper
| Impedance (Z) | 8 Ohm |
| Transmission method | - |

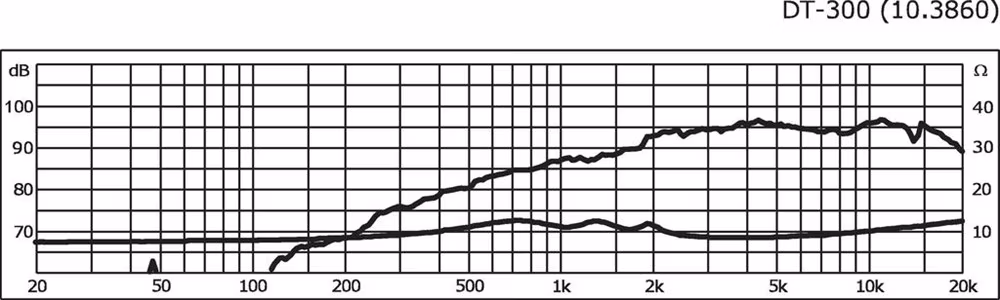

| Frequency range | fx-19,000 Hz |
| Resonant frequency (fs) | 750 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,000 Hz |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 100 W |
| Sensitivity | 93 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | - |
| Moving mass (Mms) | - |
| Mech. Q factor (Qms) | - |
| Electr. Q factor (Qes) | - |
| Total Q factor (Qts) | - |
| Equivalent volume (Vas) | - |
| DC resistance (Re) | - |
| Force factor (BxL) | - |
| Voice coil induct. (Le) | - |
| Voice coil diameter | Ø 30 mm |
| Voice coil former | - |
| Linear excursion (XMAX) | - |
| Eff. cone area (Sd) | - |
| Magnet weight | - |
| Magnet diameter | Ø 88 mm |
| Mounting cutout | Ø 90 mm |
| Mounting depth | 52 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | Ø 116 x 52 mm |
| Outside diameter | Ø 116 mm |
| Width | Ø 116 mm |
| Height | - |
| Depth | 52 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.65 kg |
| Packing unit | 1 |
| Type of speaker | - |
