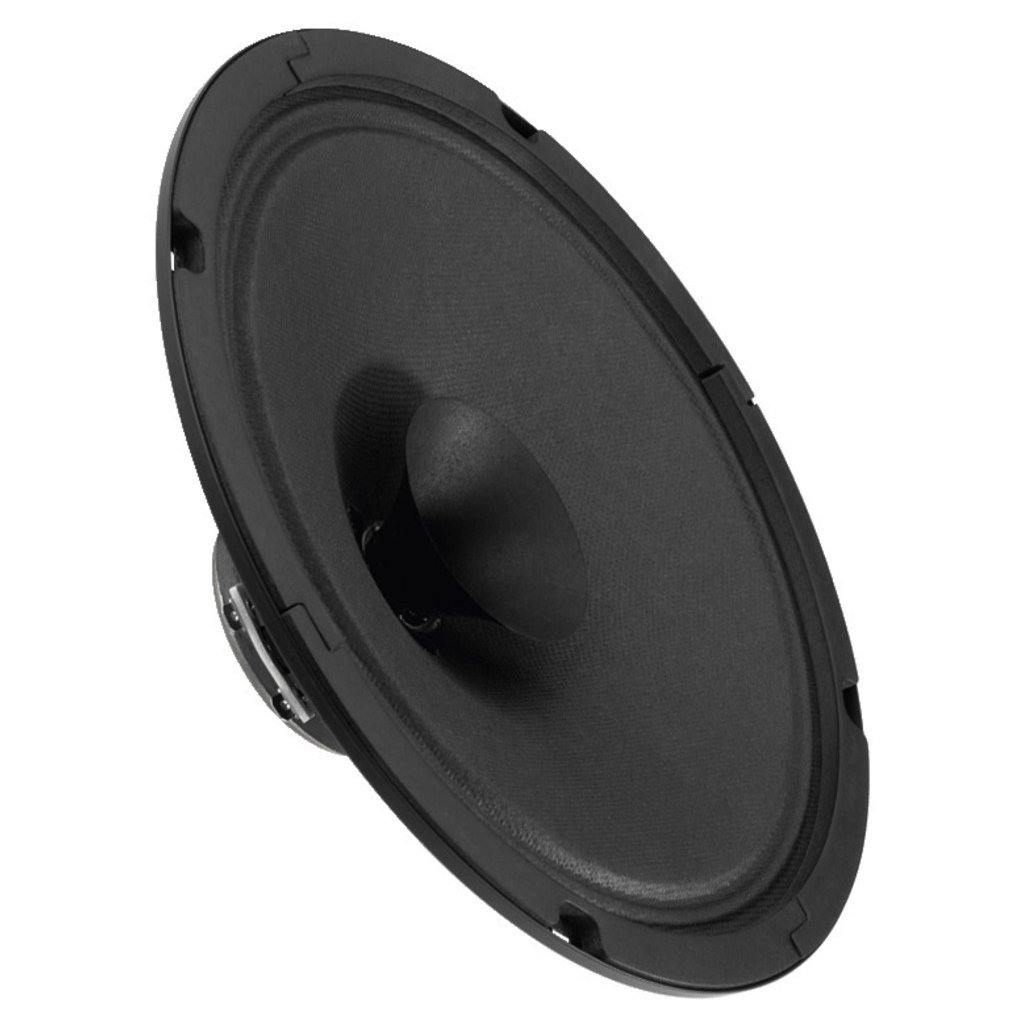

Monacor SP-205/8 8'' bredbandshögtalare

  • 299 kr

Universal full range speaker, 10 WMAX, 8 WRMS, 8 ?Dual coneFor PA applications and other purposesEspecially for multiple arrangements in column s

I lager.

Universal full range speaker, 10 WMAX, 8 WRMS, 8 ?

  • Dual cone
  • For PA applications and other purposes
  • Especially for multiple arrangements in column speakers
  • Excellent sound quality

Klang+Ton 06/2013
"Built  into an open cabinet (Cheap Trick 269), this speaker provides features  which are clearly above its price class and can clearly be considered  high-end. Like all the other full range speakers of this design, it also  needs a break-in period to demonstrate its full capability. After about  6 months, you wouldn't give this speaker back, not even for far more  than you paid for it."


Egenskaper

Impedance (Z)8 Ohm
Transmission method-
Frequency rangef3-18,000 Hz
Resonant frequency (fs)100 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)8 W
Peak music power output (MAX)10 W
Sensitivity94 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-

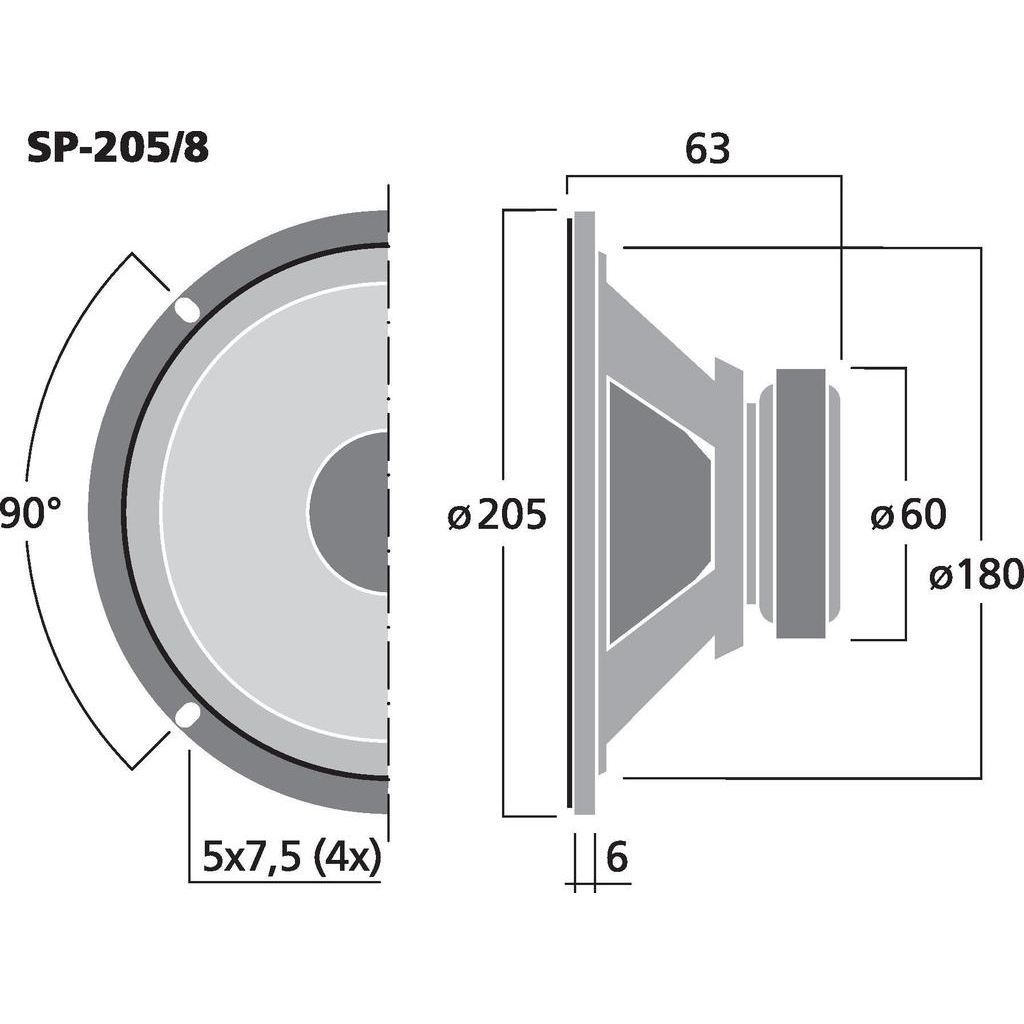

Magnet weight79 g
Magnet diameterØ 60 mm
Mounting cutoutØ 180 mm
Mounting depth57 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 205 mm x 63 mm
Outside diameterØ 205 mm
WidthØ 205 mm
Height-
Depth63 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.379 kg
Packing unit1
Type of speaker8"
