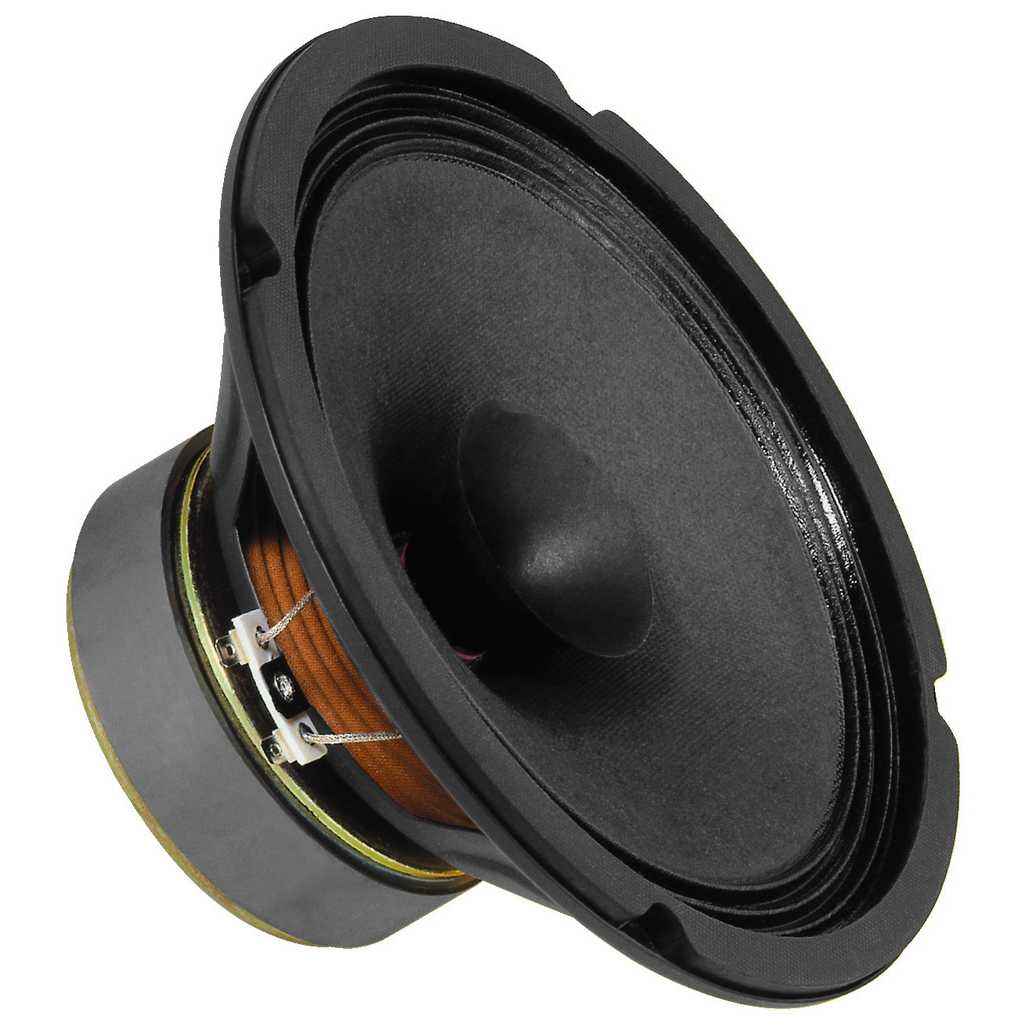

Monacor SP-200X 8'' bredbandshögtalare
- 635 kr
Hi-fi full range speaker, 70 WMAX, 35 WRMS, 8 ?One-piece rubber gasketVery good linearityHigh efficiencyFor PA systems of special sound requireme
Hi-fi full range speaker, 70 WMAX, 35 WRMS, 8 ?
- One-piece rubber gasket
- Very good linearity
- High efficiency
- For PA systems of special sound requirements or in large column speakers
HOBBY HiFi 01/2012
"The SPH-200X impresses by an excellent sound quality."
Egenskaper
Impedance (Z) | 8 Ohm |
Transmission method | - |

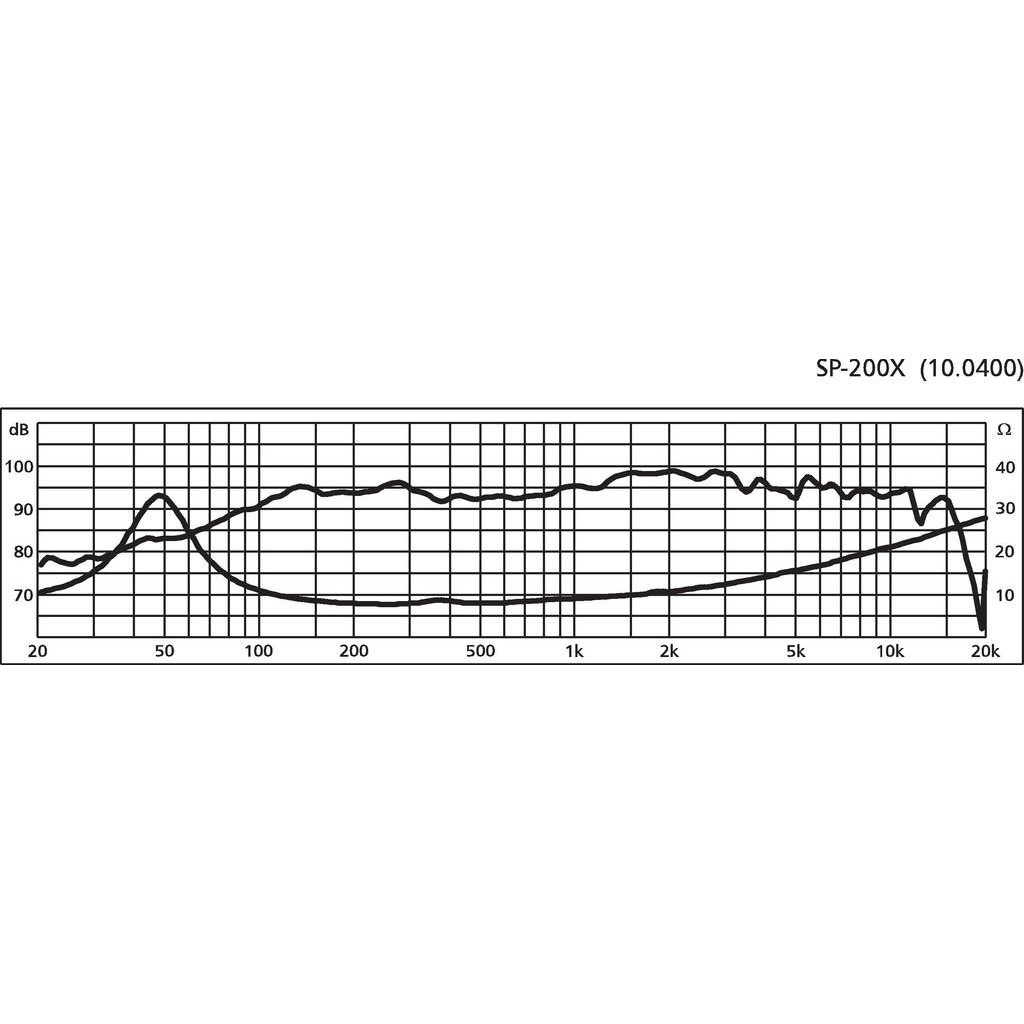

Frequency range | f3-15,000 Hz |
Resonant frequency (fs) | 50 Hz |
Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
Power rating (RMS) | 35 W |
Peak music power output (MAX) | 70 W |
Sensitivity | 92 dB/W/m |
Max. rated SPL | - |
Max. voltage | - |
Radiation angle, horizontal | - |
Radiation angle, vertical | - |
Suspension compl. (Cms) | 0.77 mm/N |
Moving mass (Mms) | 11.5 g |
Mech. Q factor (Qms) | 1.96 |
Electr. Q factor (Qes) | 0.7 |
Total Q factor (Qts) | 0.52 |
Equivalent volume (Vas) | 48 l |
DC resistance (Re) | 7.2 O |
Force factor (BxL) | 6.10 Tm |
Voice coil induct. (Le) | 0.3 mH |
Voice coil diameter | Ø 25.5 mm |
Voice coil former | aluminium |
Linear excursion (XMAX) | ± 1.6 mm |
Eff. cone area (Sd) | 210 cm2 |
Magnet weight | 500 g |
Magnet diameter | Ø 100 mm |
Mounting cutout | Ø 188 mm |
Mounting depth | 72 mm |
Mounting hole diameter | - |
Hole spacing X-axis | - |
Hole spacing Y-axis | - |

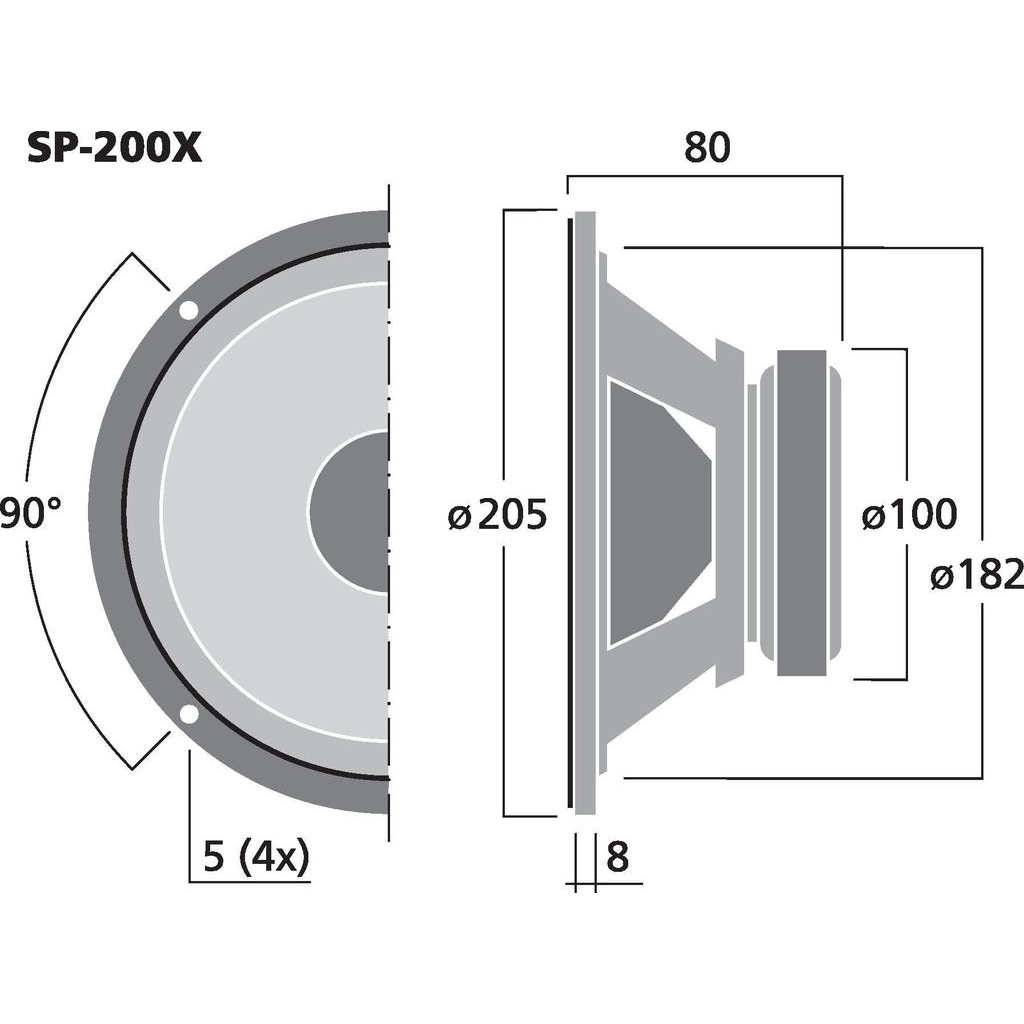

Dimensions | Ø 205 mm x 80 mm |
Outside diameter | Ø 205 mm |
Width | Ø 205 mm |
Height | - |
Depth | 80 mm |
Protective class | - |
Admiss. ambient temp. | 0-40 °C |
Weight | 1.35 kg |
Packing unit | 1 |
Type of speaker | 8" |
