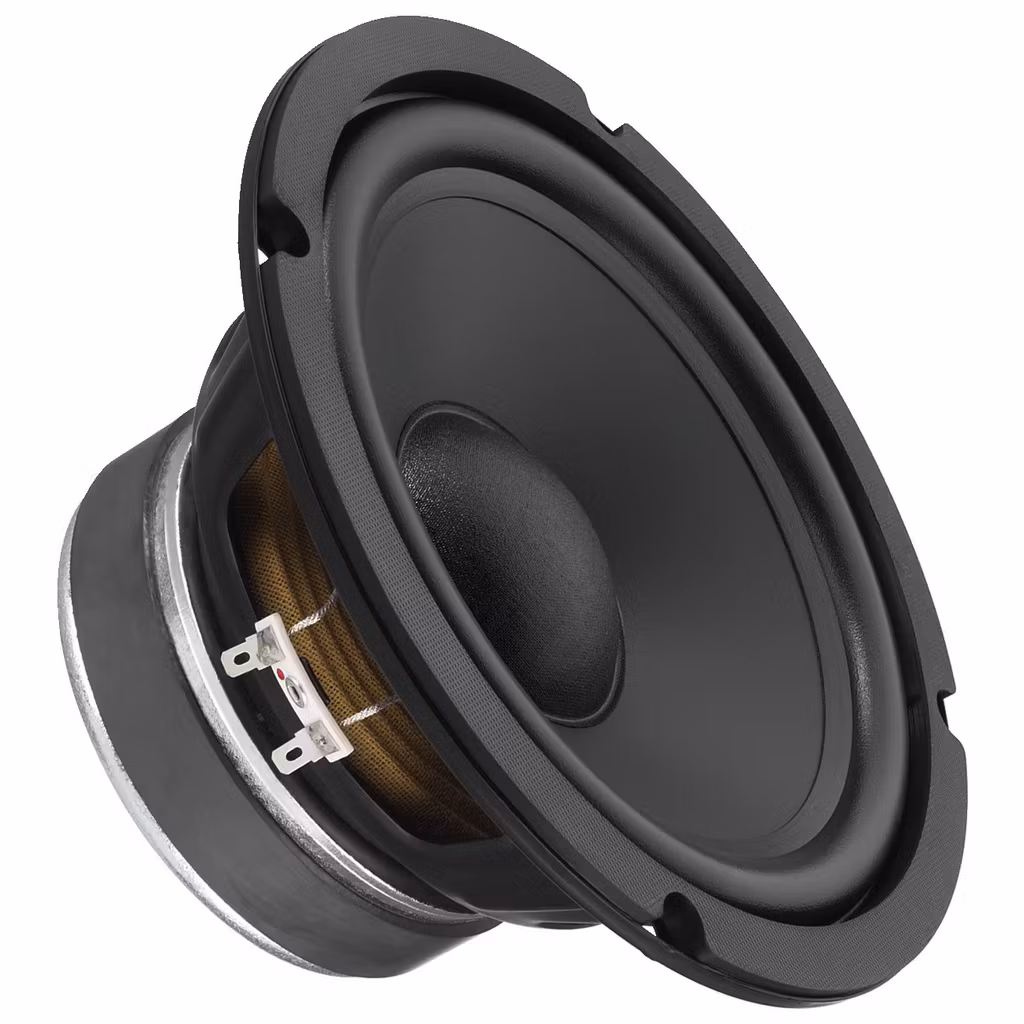

Monacor SPH-210 8'' Bas/mellanregisterhögtalare

  • 965 kr

High-quality Hi-fi SpeakersWith polypropylene cone and very strong, ventilated magnetic systems. A sophisticated technology for versatile applications.Hi-f

I lager.

High-quality Hi-fi Speakers
With polypropylene cone and very strong, ventilated magnetic systems. A sophisticated technology for versatile applications.

Hi-fi bass-midrange speaker, 100 WMAX, 50 WRMS, 8 ?

  • For high-quality 2-way or 3-way speaker systems
  • As a replacement speaker for older high-quality speaker systems

Egenskaper

Impedance (Z)8 Ohm
Transmission method-

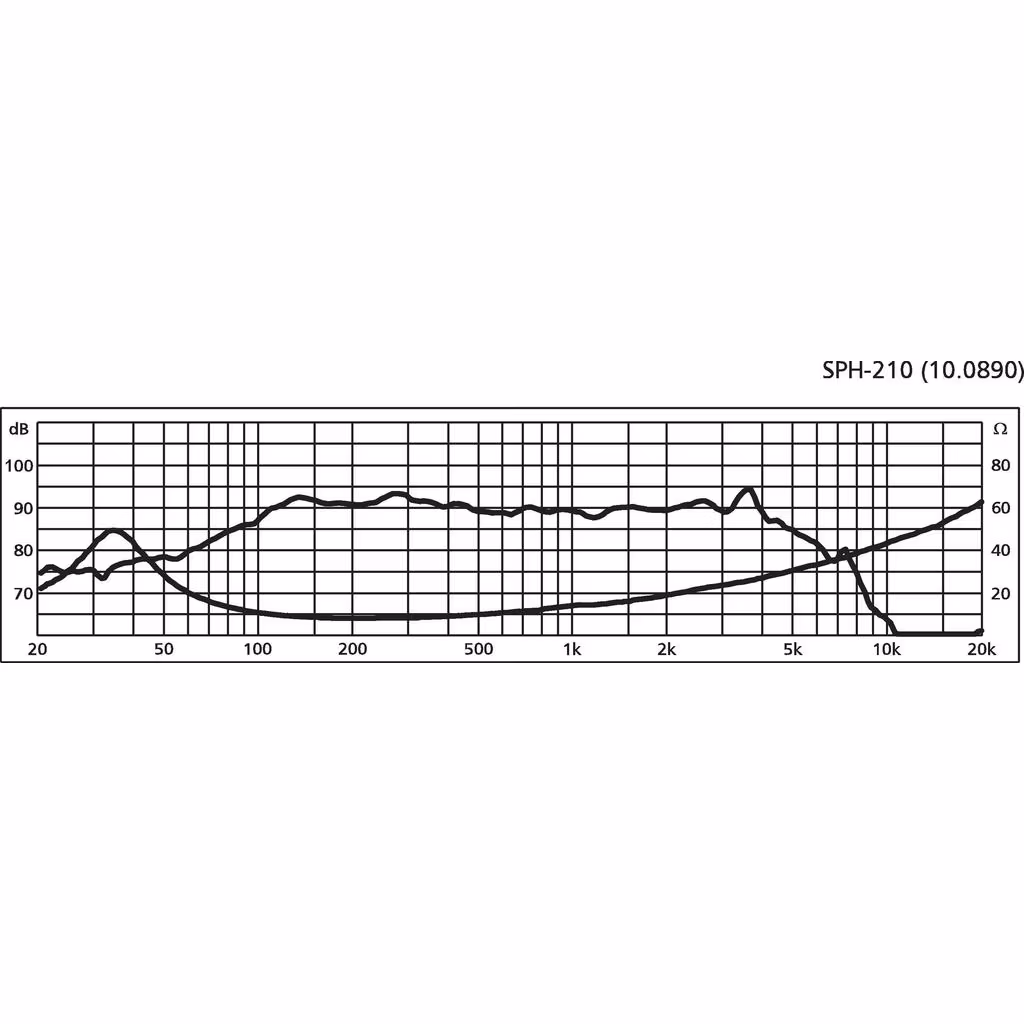

Frequency rangef3-4,000 Hz
Resonant frequency (fs)28 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)50 W
Peak music power output (MAX)100 W
Sensitivity90 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)1.32 mm/N
Moving mass (Mms)24.5 g
Mech. Q factor (Qms)2.14
Electr. Q factor (Qes)0.27
Total Q factor (Qts)0.24
Equivalent volume (Vas)81 l
DC resistance (Re)6.5 O
Force factor (BxL)10.30 Tm
Voice coil induct. (Le)1.0 mH
Voice coil diameterØ 35.5 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 3.5 mm
Eff. cone area (Sd)210 cm2
Magnet weight840 g
Magnet diameterØ 120 mm
Mounting cutoutØ 183 mm
Mounting depth89 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

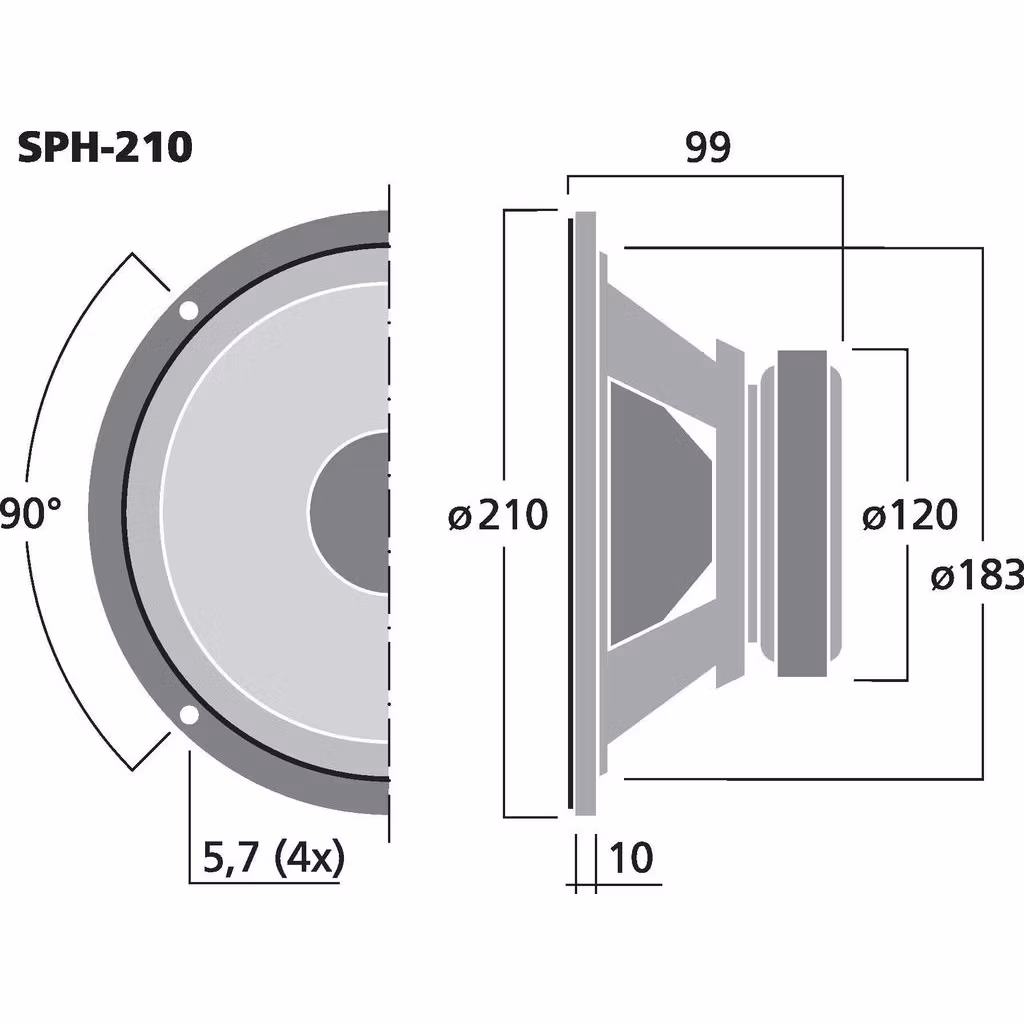

DimensionsØ 210 mm x 99 mm
Outside diameterØ 210 mm
WidthØ 210 mm
Height-
Depth99 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight2.52 kg
Packing unit1
Type of speaker8"
