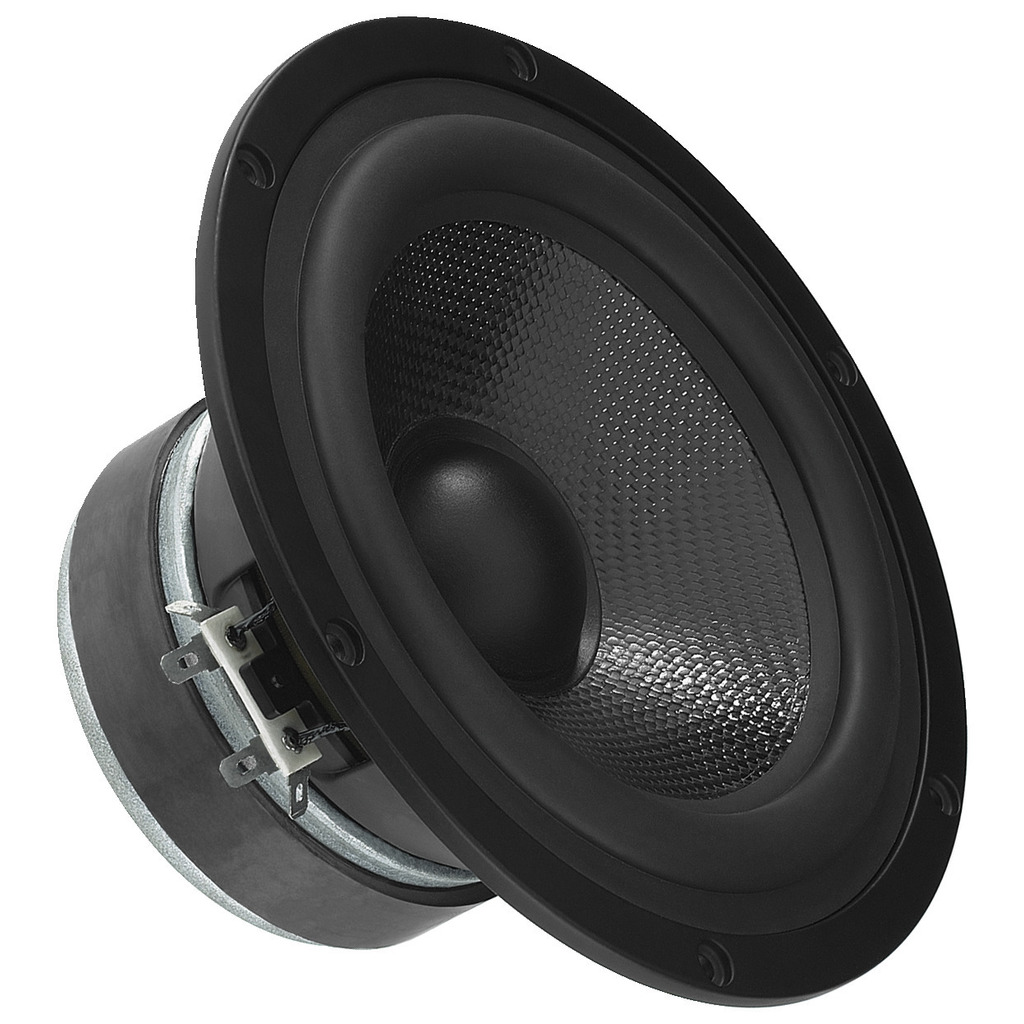

Monacor SPH-170C 6 1/2'' Bas/mellanregisterhögtalare

  • 1 625 kr

Hi-fi Bass Speakers and Hi-fi Bass-Midrange SpeakersExtra  high quality, perfect workmanship and elegant design, with aluminium  basket, carbon fibre

I lager.

Hi-fi Bass Speakers and Hi-fi Bass-Midrange Speakers
Extra  high quality, perfect workmanship and elegant design, with aluminium  basket, carbon fibre cone and extra long excursion, an impulsive and  deep bass reproduction from a partly surprisingly small size.

High-end bass-midrange speaker, 120 WMAX, 60 WRMS, 8 ?

  • Excellently dampened cone
  • Extra long excursion
  • Low distortion
  • Particularly natural reproduction
  • Very low limit frequency
  • Ideally suited as a bass-midrange speaker in 2-way combinations but only requires small volumes

HOBBY HiFi 02/2012
"Ideally  suited for smaller bookshelf speaker systems. With the SPH-170C,  MONACOR offers a bass-midrange speaker of very neat workmanship which  impresses by a particularly high-quality design."


Egenskaper

Impedance (Z)8 Ohm
Transmission method-

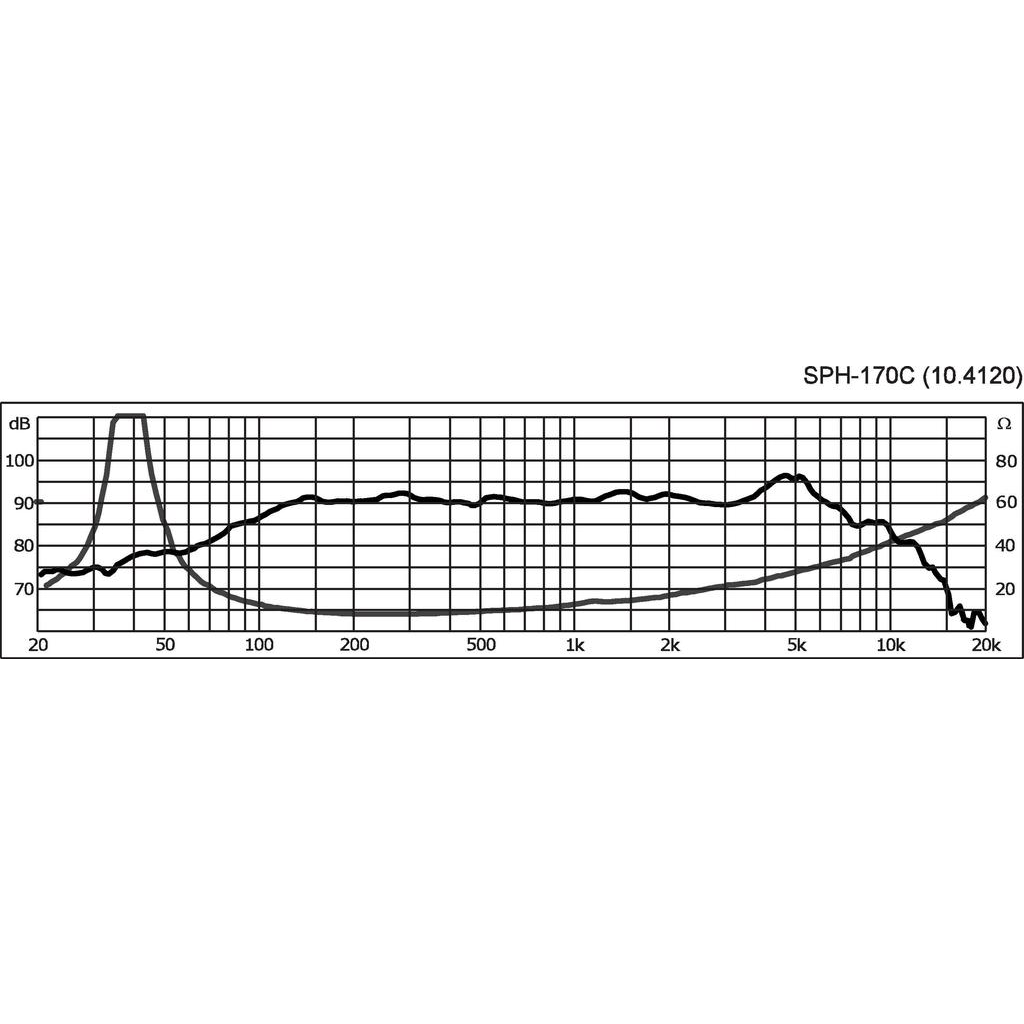

Frequency rangef3-3,500 Hz
Resonant frequency (fs)38 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)60 W
Peak music power output (MAX)120 W
Sensitivity88 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)1.06 mm/N
Moving mass (Mms)16.43 g
Mech. Q factor (Qms)7.22
Electr. Q factor (Qes)0.27
Total Q factor (Qts)0.26
Equivalent volume (Vas)24 l
DC resistance (Re)6 O
Force factor (BxL)9.44 Tm
Voice coil induct. (Le)0.8 mH
Voice coil diameterØ 37 mm
Voice coil formerKapton
Linear excursion (XMAX)± 4 mm
Eff. cone area (Sd)127 cm2
Magnet weight600 g

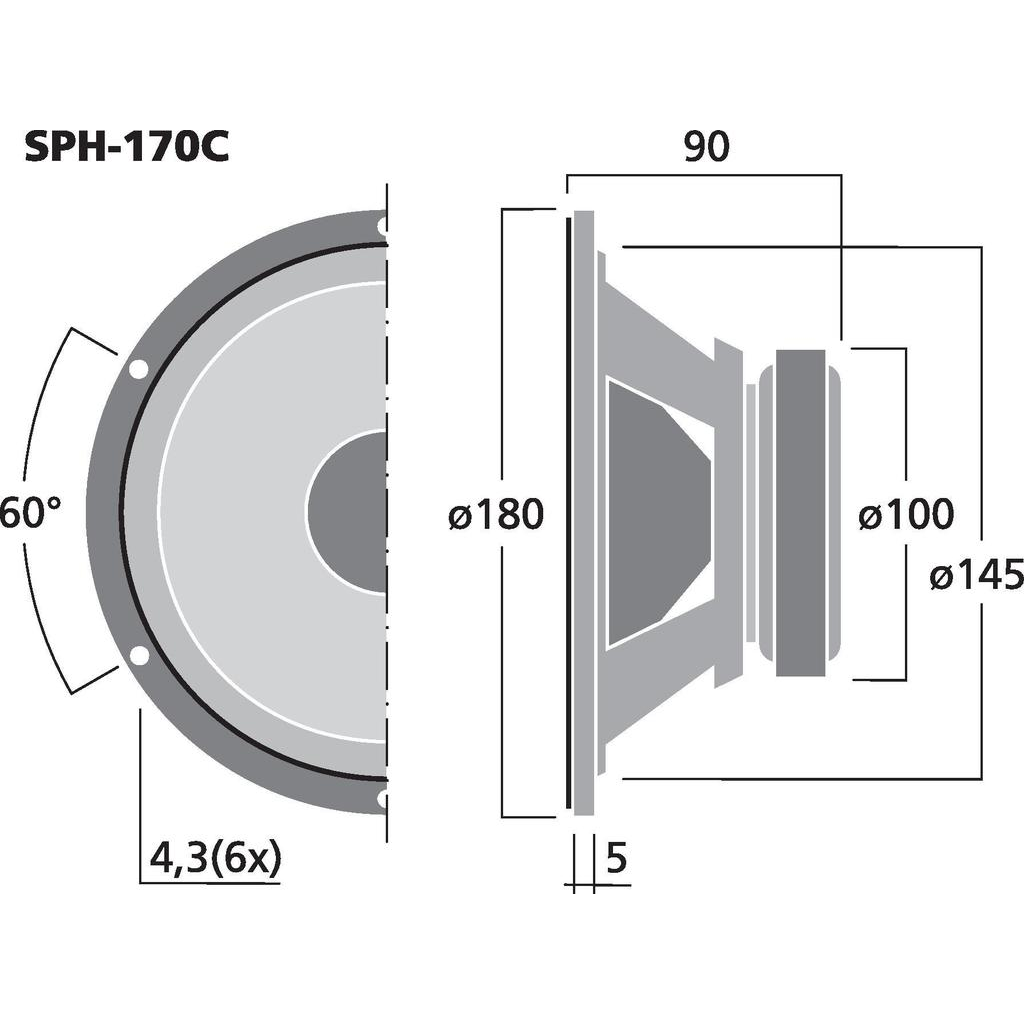

Magnet diameterØ 100 mm
Mounting cutoutØ 145 mm
Mounting depth85 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 180 mm x 90 mm
Outside diameterØ 180 mm
WidthØ 180 mm
Height-
Depth90 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.99 kg
Packing unit1
Type of speaker6.5"
