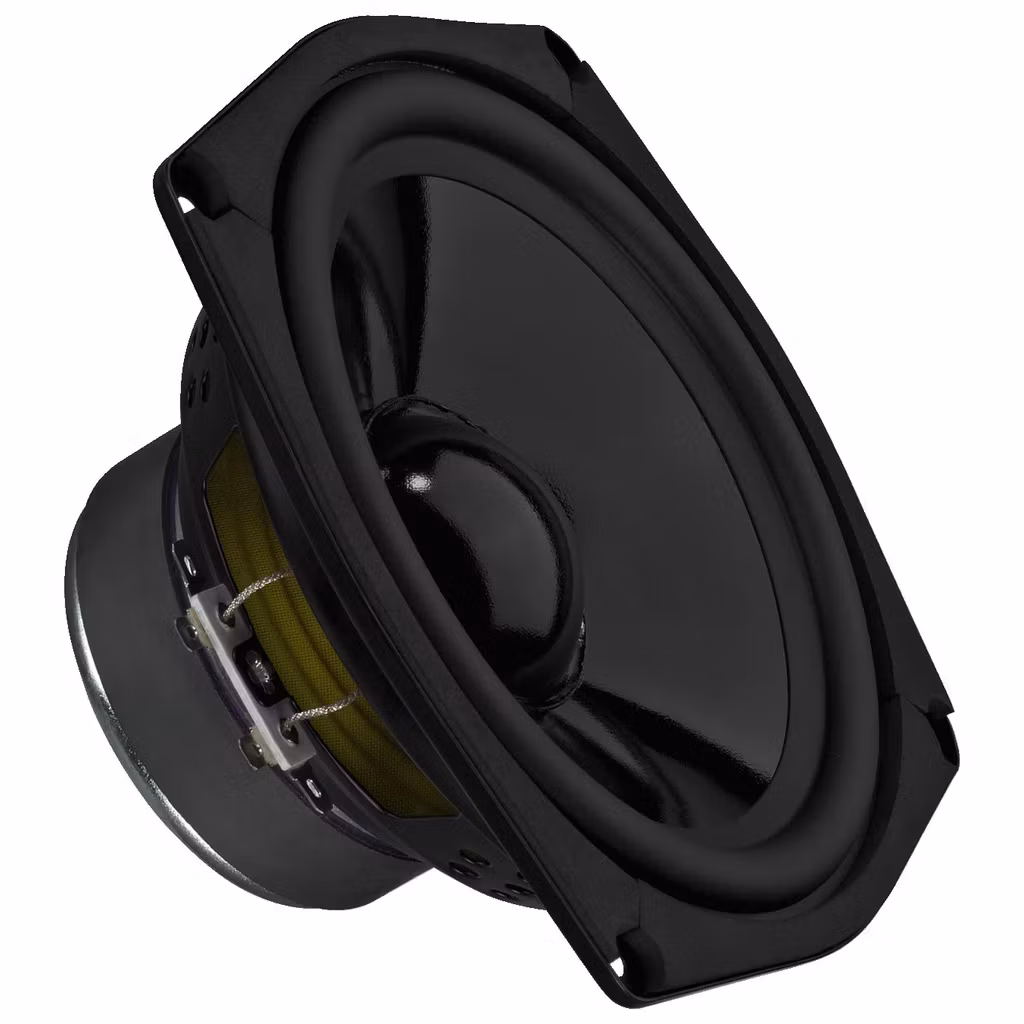

Monacor SPM-165/8 6'' Bas/mellanregisterhögtalare

  • 599 kr

Hi-fi bass-midrange speaker, 150 WMAX, 60 WRMS, 8 ?Excellent replacement speaker of the same quality as from the original equipment manufact

I lager.

Hi-fi bass-midrange speaker, 150 WMAX, 60 WRMS, 8 ?

  • Excellent replacement speaker of the same quality as from the original equipment manufacturer
  • Coated low-resonance paper cone
  • Long-term stable rubber surround
  • To be used preferably in closed or transmission line cabinets

Klang+Ton 01/2013
"What  a great idea. The Cheap Trick 264 (with SPM-165/8 & DTM-104/8)  wants to show that it is possible to actually provide great music at an  attractive price ... and with any kind of music programme. It provides a  reproduction of a comprehensive musical spectrum which is always a  pleasure to listen to. With reliable material and a little care during  assembly, you already get an all-round speaker which is absolutely  suitable for practical operation."

TEKNISK DATA:
Impedance (Z)8 ohm
Transmission method-

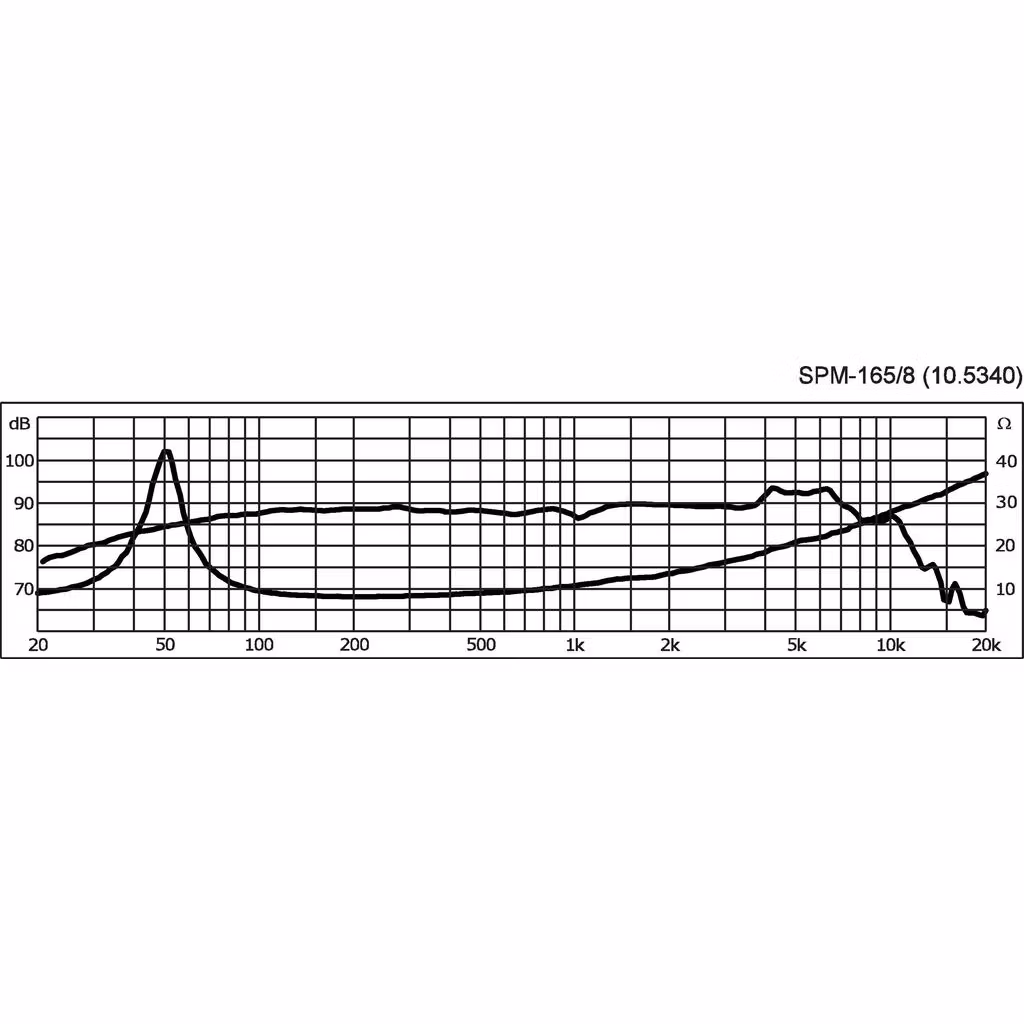

Frequency rangef3-5,000 Hz
Resonant frequency (fs)49 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)60 W
Peak music power output (MAX)150 W
Sensitivity88 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)1.0 mm/N
Moving mass (Mms)10.3 g
Mech. Q factor (Qms)2.7
Electr. Q factor (Qes)0.67
Total Q factor (Qts)0.55
Equivalent volume (Vas)33 l
DC resistance (Re)7.2 ?
Force factor (BxL)5.80 Tm
Voice coil induct. (Le)0.6 mH
Voice coil diameterØ 25.5 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 3 mm
Eff. cone area (Sd)140 cm2
Magnet weight380 g
Magnet diameterØ 80 mm

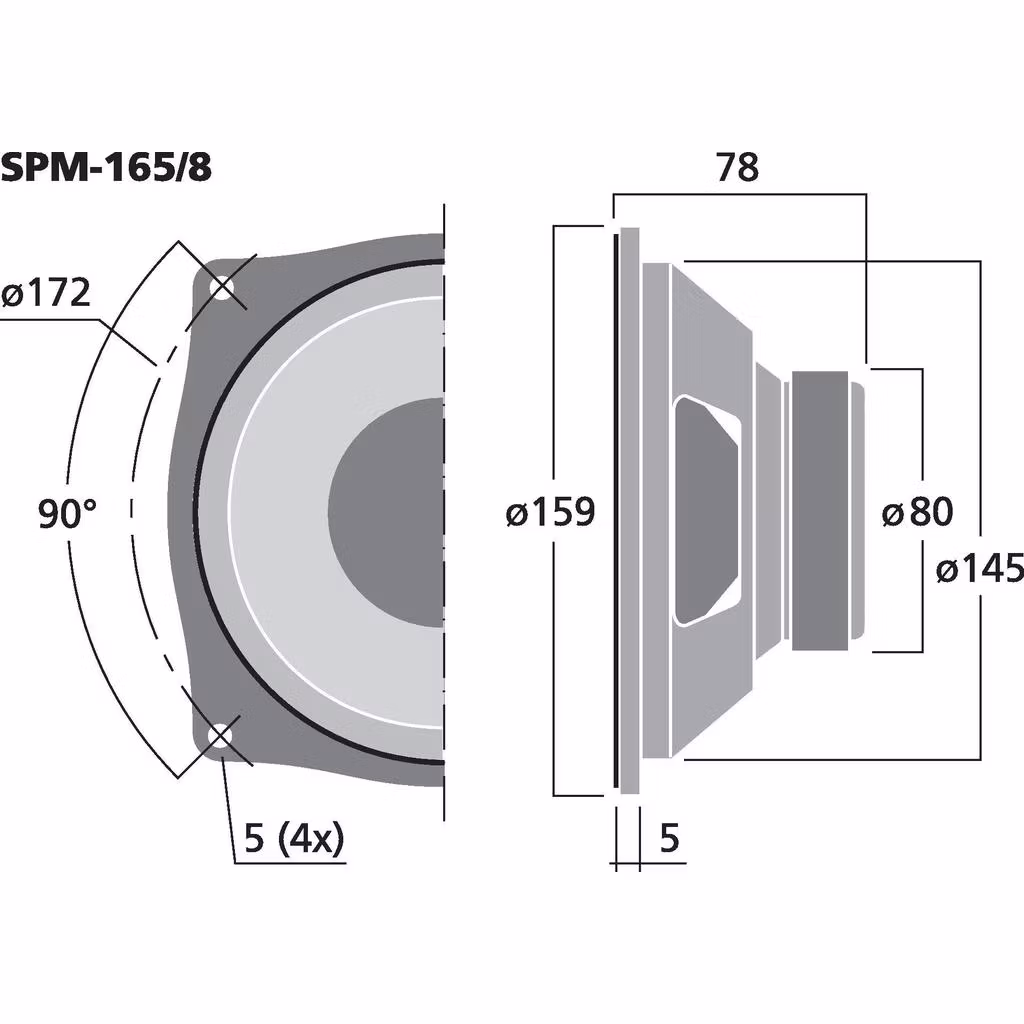

Mounting cutoutØ 145 mm
Mounting depth73 mm
Mounting hole diameterØ 172 mm
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 159 mm x 78 mm
Outside diameterØ 159 mm
WidthØ 159 mm
Height-
Depth78 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.97 kg
Packing unit1
Type of speaker6.5"
