Monacor RBT-56 Banddiskant

  • 509 kr

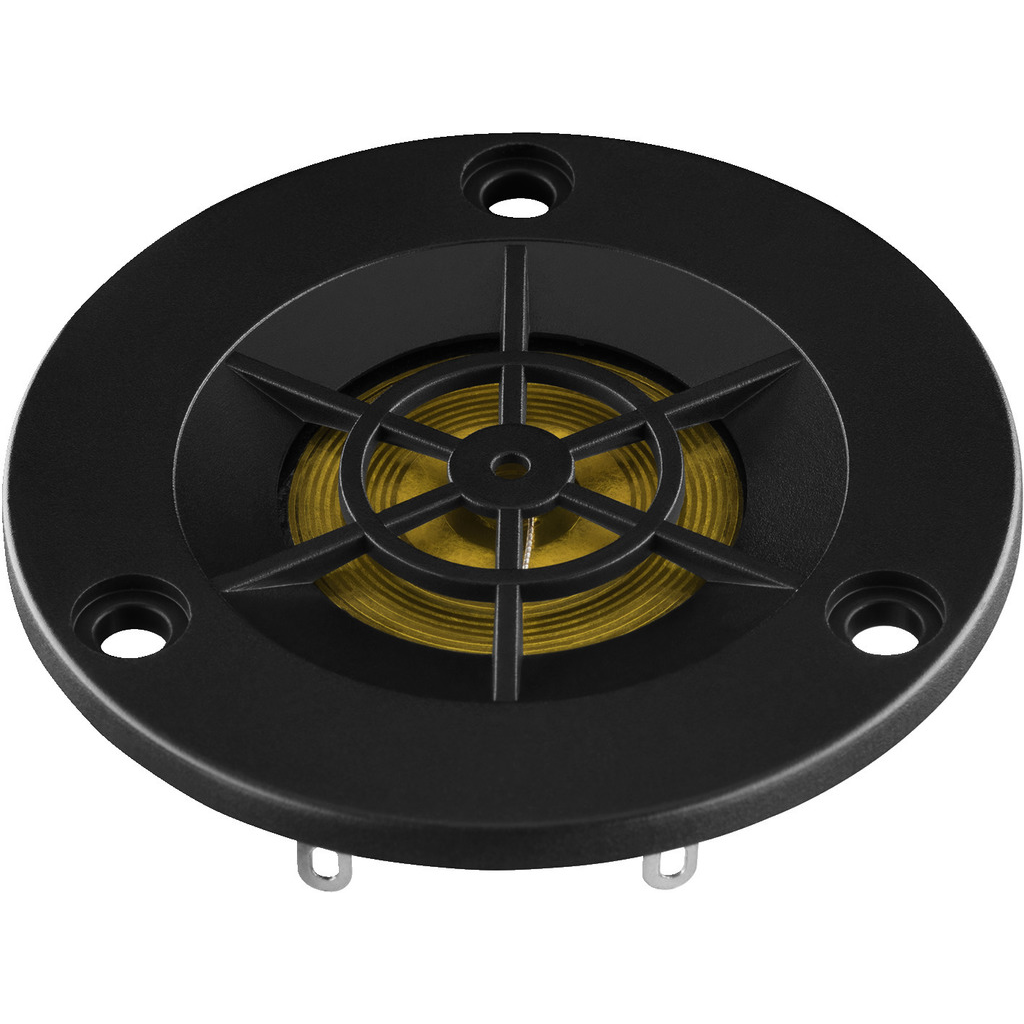

Hi-fi ribbon tweeter, 10 W, 4 Ω Magnetostatic tweeter of compact size Neodymium magnet system Fine and brilliant reproduction of the high frequencies Round cone

I lager.
Lagersaldo: 2

Hi-fi ribbon tweeter, 10 W, 4 Ω Magnetostatic tweeter of compact size Neodymium magnet system Fine and brilliant reproduction of the high frequencies Round cone with Kapton and aluminium film For use from 5,000 Hz on Plastic sound diffuser panel (front)

Egenskaper

Impedance (Z)4 Ohm
Transmission method-

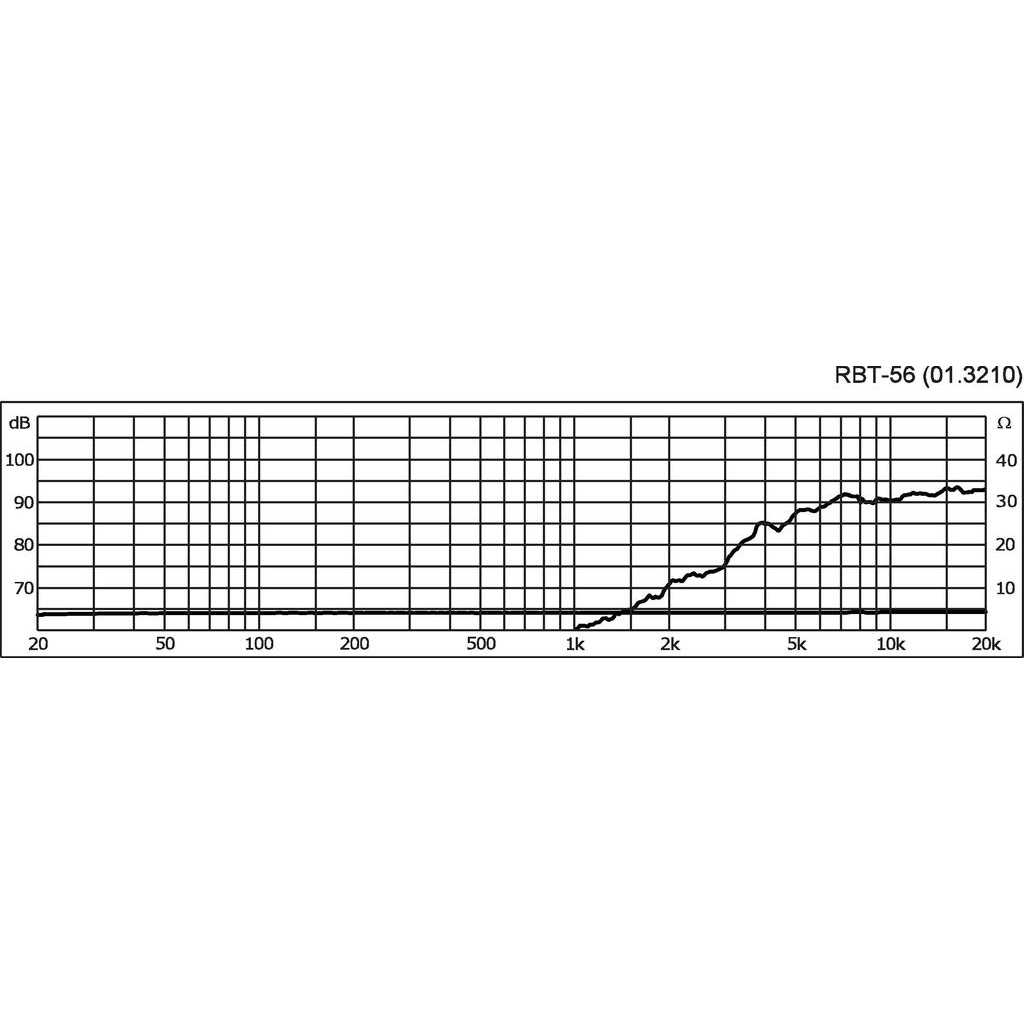

Frequency range5,000-40,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)5,000 Hz
Power rating (RMS)10 W
Peak music power output (MAX)20 W
Sensitivity90 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)3.5 O
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diametermagnetostatic speaker

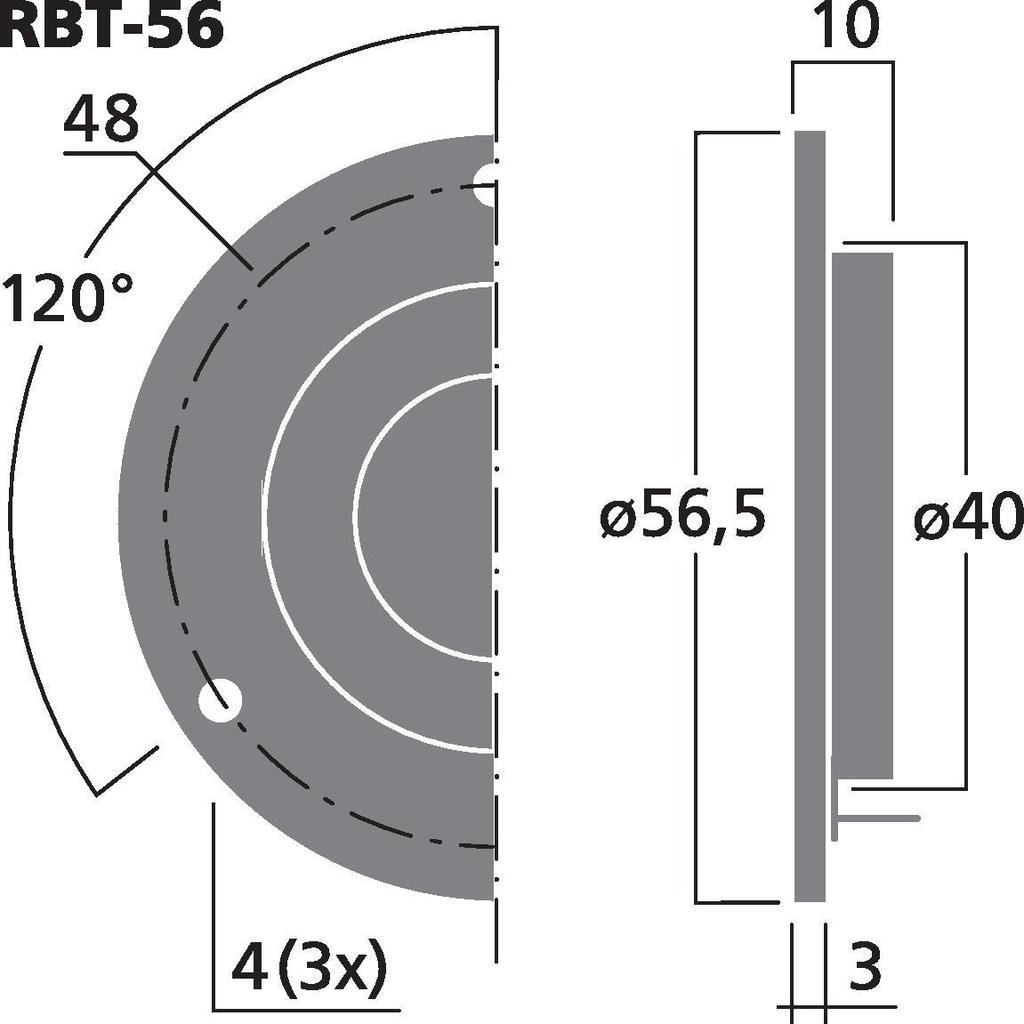

Mounting cutoutØ 40 mm
Mounting depth10 mm
Mounting hole diameterØ 48 mm
Hole spacing X-axis-
Hole spacing Y-axis-
Dimensions56.5 mm
Outside diameterØ 56.5 mm
WidthØ 56.5 mm
Height-
Depth10 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.035 kg
Packing unit1
Type of speaker-
